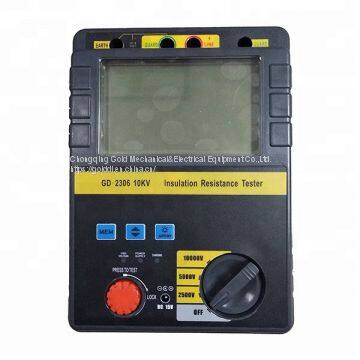

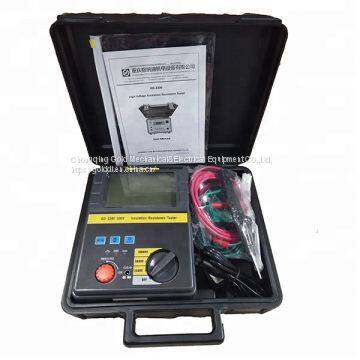

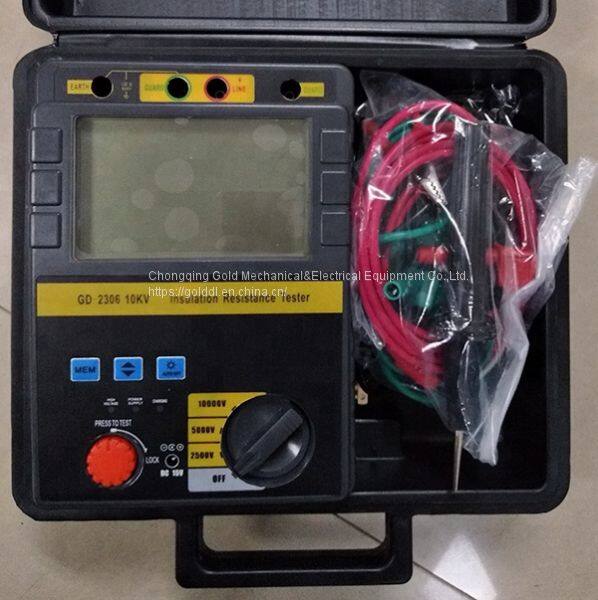

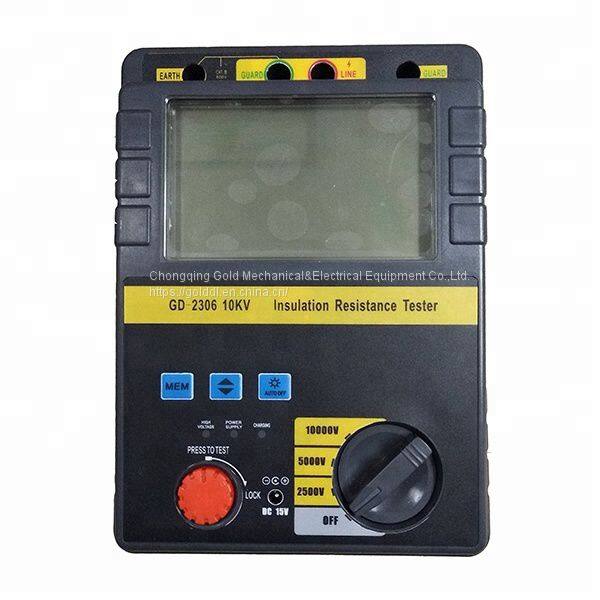

Help CenterGD-2305/2306 5kV 10kV High Voltage Insulation Resistance Meter Tester
Related Products
-
GD-TC 11kV-35kV Power Cable Fault Locator and Cable Fault DetectorUS$ 2 - 4MOQ: 1 Set -
GD-II Metal Oxide Surge Arrester MOA TesterUS$ 2 - 4MOQ: 1 Set
-
GDYJ-502A Portable Transformer Oil Dielectric Strength Tester for Insulating Oil BDV TestingUS$ 2200 - 2800MOQ: 1 Set
-
GDYJ-501Transformer Insulating Oil BDV and Dielectric Strength TesterUS$ 1700 - 2400MOQ: 1 Set
-
GDYJ-502 100KV Transformer Oil Breakdown Voltage Bdv Tester With Competitive PriceUS$ 1600 - 5000MOQ: 1 Set
Introduction:
Digital Insulation resistance tester embedded real-time industrial microcomputer operating system, ultra-thin wire-shaped sheets header with the perfect combination of dot matrix liquid crystal display, the instrument is with a variety of voltage output level (250V,500V,1000V,2500V,5000V,10000V), high capacity, strong anti-interference, the pointer and digital synchronous display, AC-DC dual-use, simple operation, automatic calculation of various insulation index (absorption ratio, polarization index), all measured characteristics with the anti-power-down function
It is suitable for measuring high capacity transformers, transformers, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.
Features:
There are a variety of output voltages GD2305 (250V, 500V, 2500V, 5000V), GD2306 (5000V,10000V) resistance range measuring range up to 0 ~ 400GΩ, resistance measuring range can be automatically converted, and have the corresponding instructions
Insulation resistance simultaneously displayed in two ways: change range of insulation resistance can be easily observed by Analog pointer; Digital Display has measurement accurate results.
Embedded and real-time operation of industrial microcomputer software system. High degree of automation, anti-interference ability, equipment can be automatically calculated absorption ratio and the polarization index, without human intervention
User friendly, all measurement results with anti-power-down function, can store 19 consecutive measurements
Produces high-pressure instrument, there are tone output
Built-in residual high voltage discharge circuit, testing is completed on the device under test can be automatically let go of the residual pressure
AC and DC, configuration rechargeable battery and AC adapter
Meter with Portable design for easy field operation
High voltage short circuit current ≥ 3mA, is the measurement of large transformers, transformers, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.
Specifications:
1.Measuring range and accuracy
(Temperature, humidity: 23±5℃, 45~75%RH)
Model |
GD2305 High Voltage Insulation Resistance Meter |
|||||
Rated Voltage |
250V |
500V |
1000V |
2500V |
5000V |
|
Measuring Range |
0.0~99.9MΩ 100~999MΩ 1.00~10.0GΩ |
0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~20.0GΩ |
0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~40.0GΩ |
0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~100GΩ |
0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~200GΩ |
|
Open circuit Voltage |
DC 250V +20%, -0% |
DC 500V +20%, -0% |
DC 1000V +20%, -0% |
DC 2500V +20%, -0% |
DC 5000V +20%, -0% |
|
Short-circuit Current |
Approx 3.3mA |
|||||
Accuracy |
±5%±3dgt |
100GΩor more ±20% |
||||
Model |
GD2306 High Voltage Insulation Resistance Meter |
|
Rated Voltage |
5000V |
10000V |
Measuring Range |
0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~200GΩ |
0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~400GΩ |
Open circuit Voltage |
DC 5000V +20%, -0% |
DC 10000V +10%, -0% |
Short-circuit Current |
Approx 3.3mA |
|
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
What's the delivery lead time?
For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person.
What's the payment term?
For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable.
What's the warranty period?
Warranty period is 1 year.
