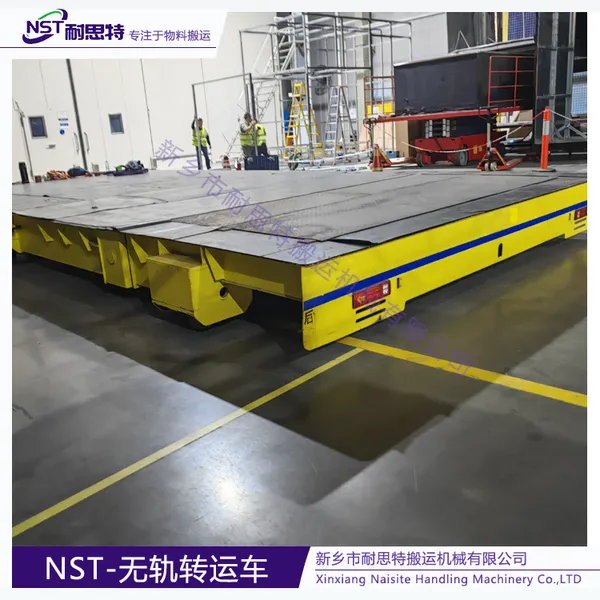

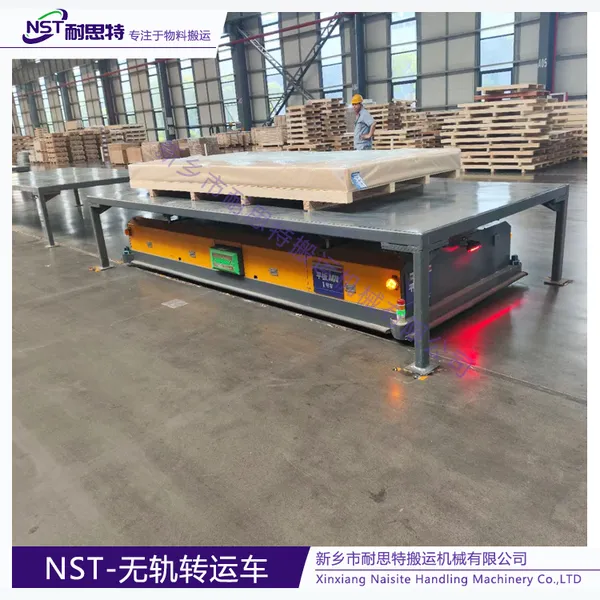

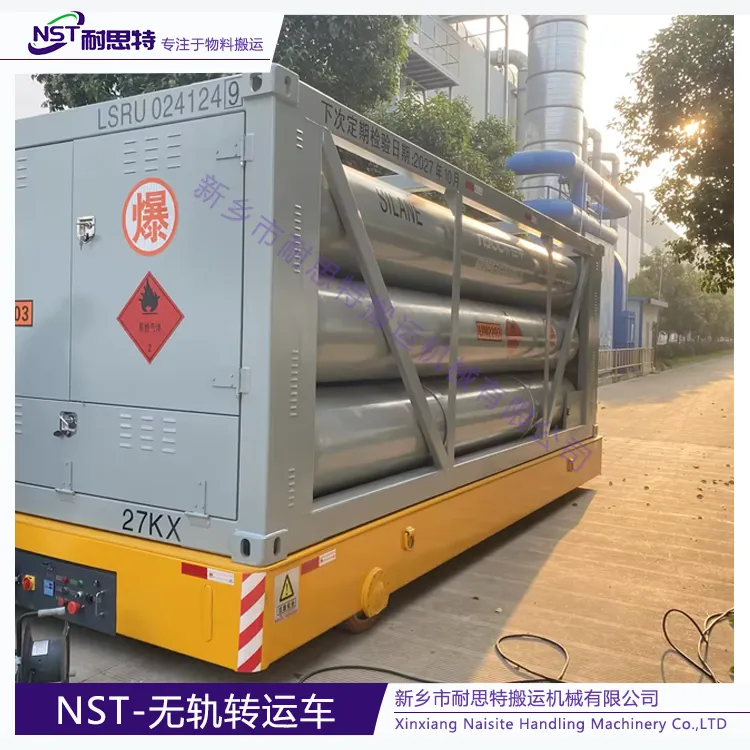

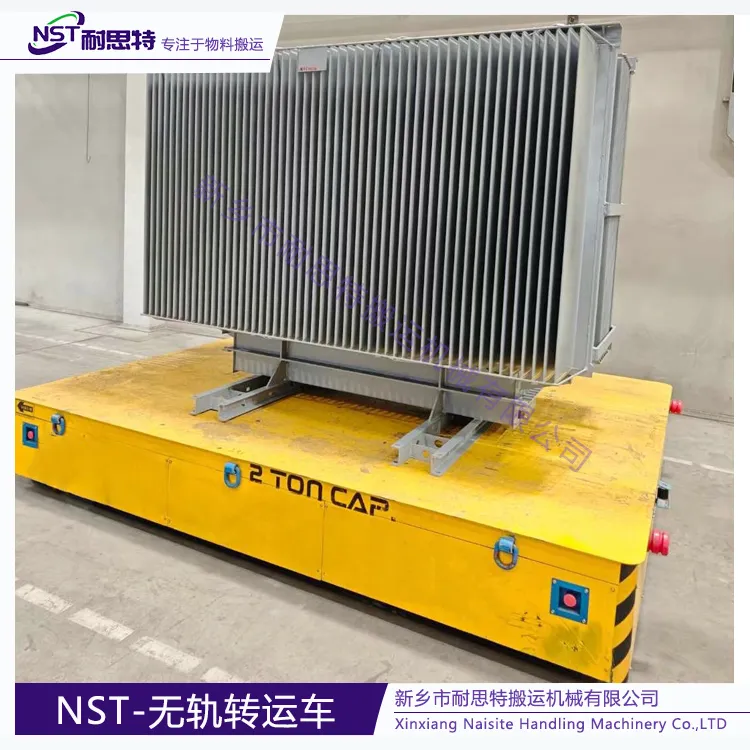

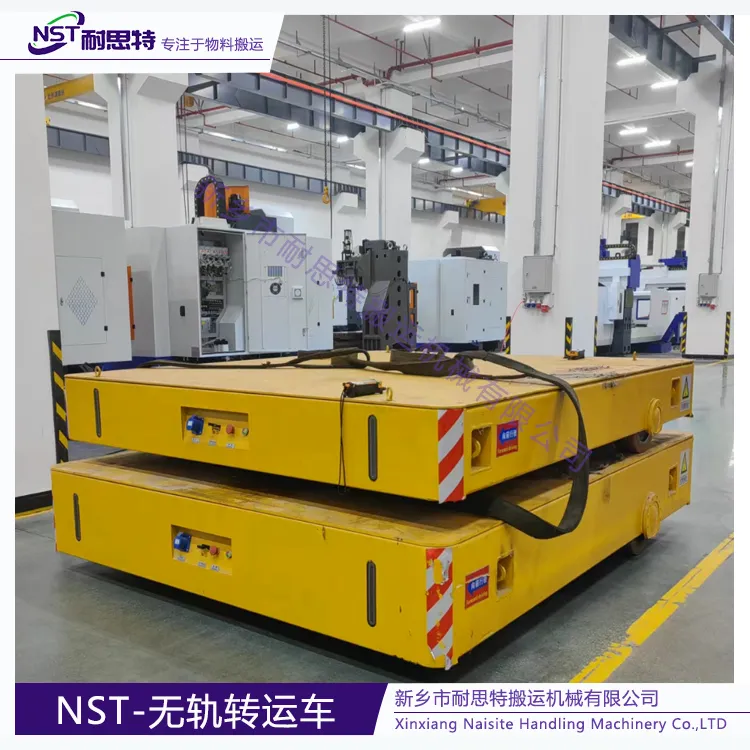

Customized Electric Trackless Industrial Material Handling Equipment
The Customized Electric Trackless Industrial Material Handling Equipment is cable reel powered,and can add die or mold device to transport coils, and the Material Transfer Cart could be put one or more coils, and the table size could be designed as the number of coils.The Customized Electric Trackless Industrial Material Handling Equipment which runs on the track,is a kind of steel,aluminum,metal,cylindrical or iron coil moving equipment, weighing up to 1-300 tons from one bracket in the factory to another.The Customized Electric Trackless Industrial Material Handling Equipment can add ladle support to transport hot melton for steel ladle factory.
Customized rackless Industrial Material Handling Equipment
Advantages
1.Powered by cable reel,you can also choose the other supply ways,such as:battery,rail powered,cable drum...
2.V-shaped and drum protection coils from falling from cross transport.
3.Wireless Remote control.
4.Safety devices such as buffers,proximity switches, acousto-optic alarms,etc have been employed
5.Detachable to facilitate the transportation of other goods.
6.The Wheel Base(mm) is 1200-7000.
7.The Rail Inner Gauge(mm) is 1200-2000.
8.The latest and the most popular factory handling equipment for the Material transfer car ;
9.Gets power from rail;
10.Capacity is 1-300tons and can be customized;
Main components
Electric Trackless Industrial Material Handling Equipment Technical parameters
Rated Load(T) |
5 |
10 |
15 |
20 |
30 |
40 |
50 |
Ground Clearance(mm) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
Wheel Base(mm) |
1500 |
1500 |
1500 |
1700 |
1700 |
1800 |
1800 |
Turnning Radius(mm) |
2501 |
3101 |
3401 |
3901 |
4301 |
4801 |
5201 |
Axles Distance(mm) |
2500 |
3100 |
3400 |
3900 |
4300 |
4800 |
5200 |
Motor Power(Kw) |
3.5 |
5 |
6 |
7 |
10 |
12 |
15 |
Running Speed(m/min) |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-12 |
0-12 |
Cart Weight(t) |
4.3 |
5.3 |
6.6 |
7.9 |
8.8 |
10 |
10.5 |
Impacted Rated Load(t) |
7.5 |
15 |
22.5 |
30 |
45 |
60 |
75 |
Battery Capacity(Ah) |
180 |
160 |
180 |
180 |
250 |
300 |
330 |
Battery Voltage(v) |
36 |
48 |
48 |
48 |
48 |
48 |
48 |
Wheel Quantity |
4 |
4 |
4 |
4 |
44 |
4 |
4 |
Ground Requirement |
Cement Floor |
Cement Floor |
Cement Floor |
Cement Floor |
Cement Floor |
Cement Floor |
Cement Floor |
Application and usage ：
Ladle Electric Trackless Industrial Material Handling Equipment

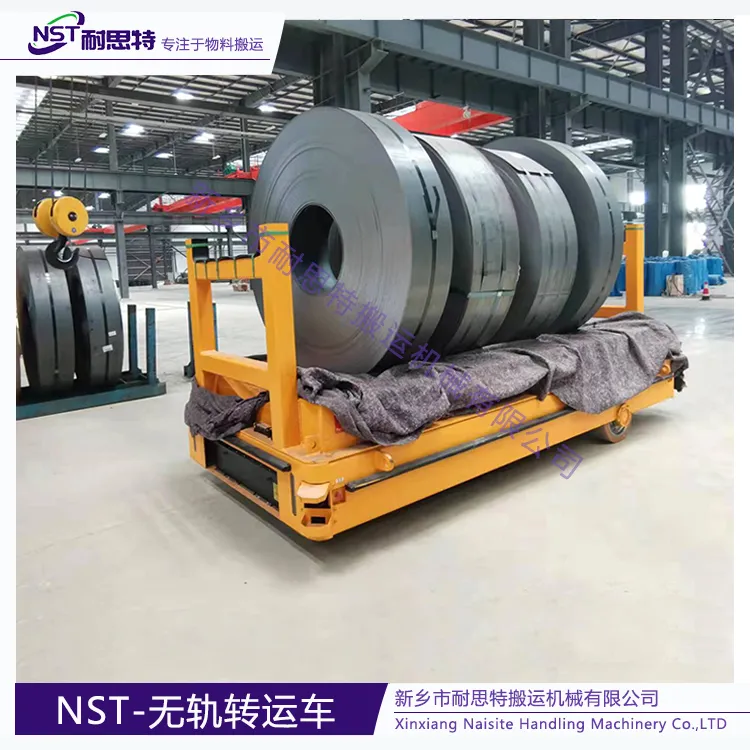

Coil Electric Trackless Industrial Material Handling Equipment
Mold Electric Trackless Industrial Material Handling Equipment
