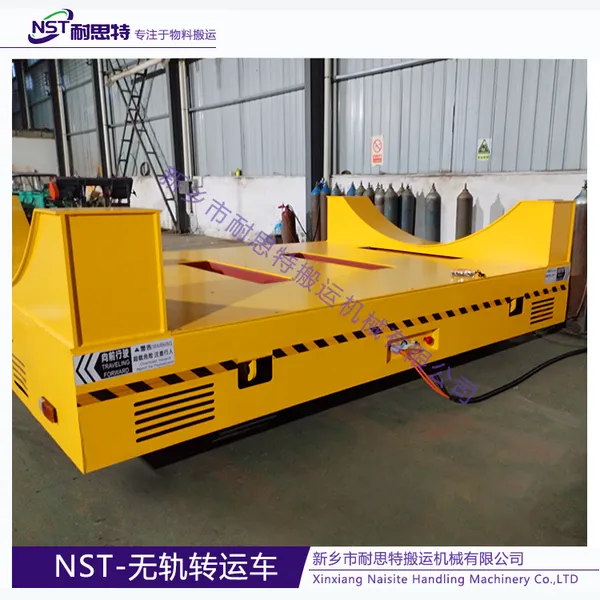

50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails

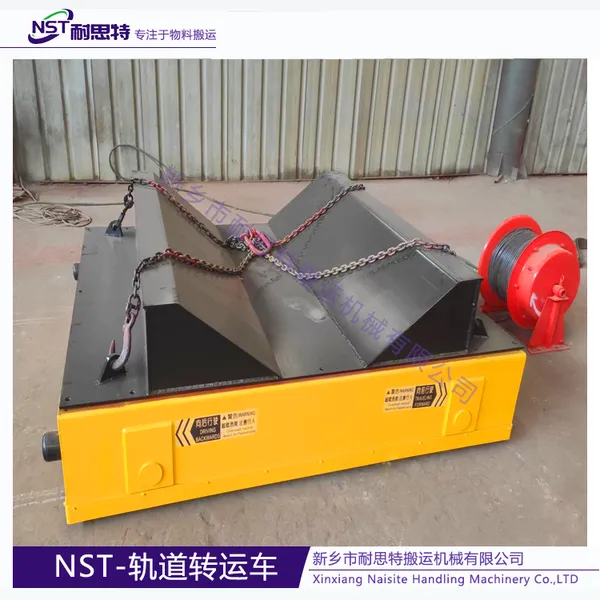

The 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails is powered by cabled drum. This 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails is usually used at ship yard, plant and factory, certain production line. The 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails could get power from outside or from the battery either.
Advantage and functions of the 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails
1.AC motor, DC motor, thermic at diesel cycle, pneumatic.
2.Steel wheels for translation on every kind of rail.
3.Control through fixed push-button panel (on board or on floor), with radio control or translation self-acting management.
4.Electric or electronic translation management.
5.Power supplied by the factory electrical grid, from a battery, by gas oil in case of diesel engine, by the factory air-system in case of pneumatic engine.
6.Parking and service brake.

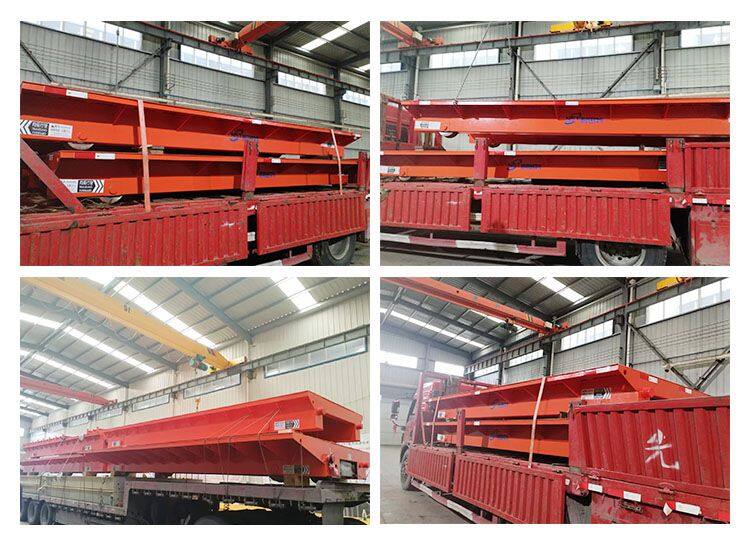

Delivery Site

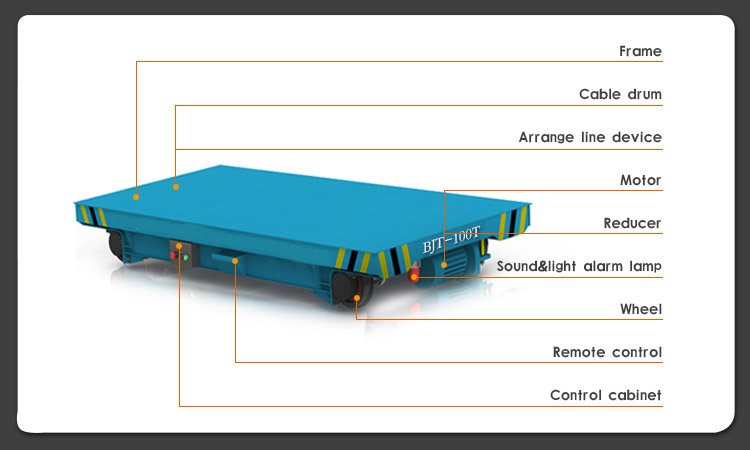

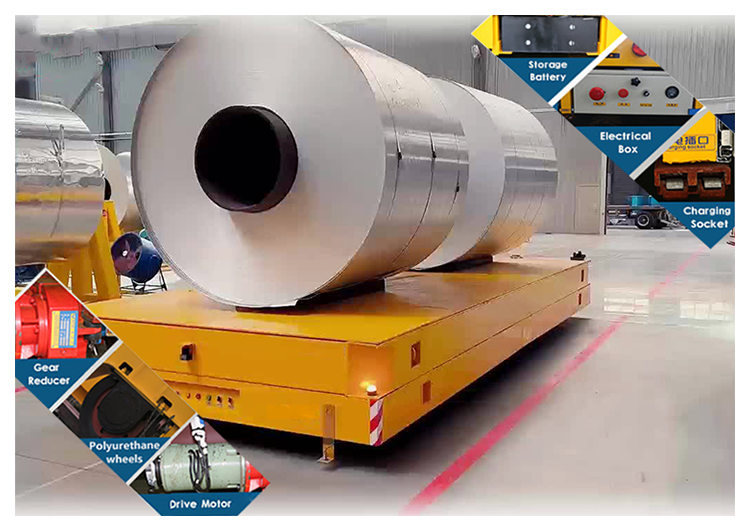

Main Componences of the 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails
The supply power ways can be choose,such as:rail powered,cable reel,battery powered...
Technical Table of the 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |

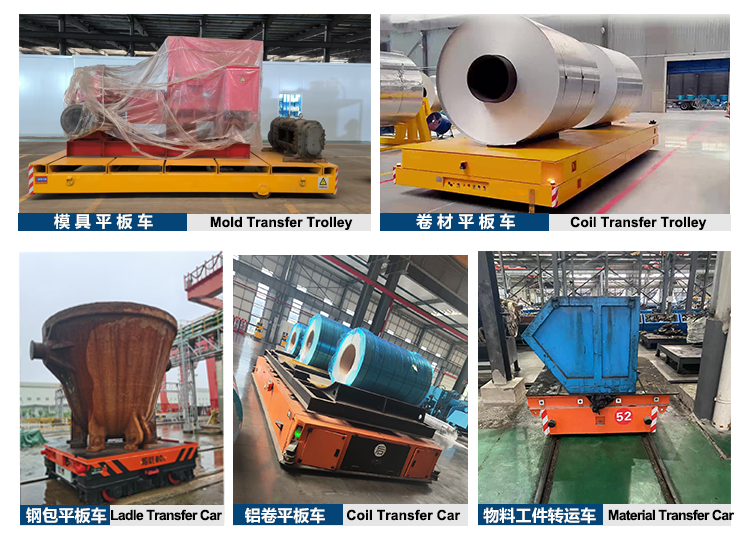

Application and Usage of the 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails
