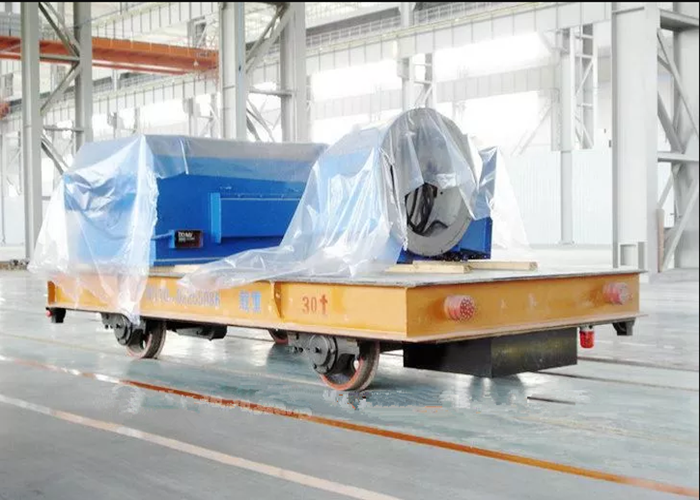

20 ton cable drum motorized Industrial Material Electric Transfer Trailer
The 20 ton cable drum motorized Industrial Material Electric Transfer Trailer is the cable drums powered ,the automated transfer track cargets power AC 380v through the device of cable reel , and the motor is controlled by the power through AC control system that make the automated transfer track car to start, stop, go forward , backward , adjust the speed and so on.We adopt the magnetic coupling cable reel, The 20 ton cable drum motorized Industrial Material Electric Transfer Trailer can make sure that there is no force on the cable and the cable can be wound and released evenly. if The 20 ton cable drum motorized Industrial Material Electric Transfer Trailer is used in short distance transportation,It is a better choice without limited time. Of course, our product includers different power, the proper solution will be recommended to you after learning your requirements.
Advantages and functions of 20 ton cable drum motorized Industrial Material Electric Transfer Trailer
Applied in many occasions, such as easy explosion, easy corrasion, high temperature;
AC motor,simple structure,not limited for the using time;
Powered by cable drum, so there is not strict requirement for the construction of the railway ,and the running distance should accord to the length of the cable;
Cost is not high, easy to operate and maintenance;
Capacity and table size can be customize;
The hydraulic lifting device can be equipped as per your requirement.
As per the transported cargoes,The V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped.
As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly.
Maximum running distance is less than 200m because of the limited cable. And you should add the line device to make the cable smooth when the distance is over 30m.
The cable reel is the magnetic coupling to ensure the cable can operate smoothly without pressure.

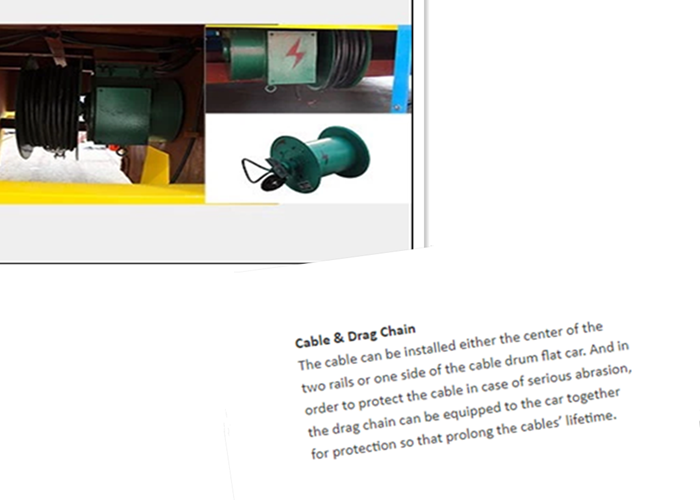

Detailed Image of 20 ton cable drum motorized Industrial Material Electric Transfer Trailer
Technical parameter table of 20 ton cable drum motorized Industrial Material Electric Transfer Trailer
| Rated Load(t) | 2 | 10 | 20 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø350 | Ø400 | Ø500 | Ø500 | Ø600 | Ø600 | Ø600 | Ø600 |
| Ground Clearence(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
Application of 20 ton cable drum motorized Industrial Material Electric Transfer Trailer
