50 ton Battery Motorized Coil Transfer Cart/Battery Powered Factory Coils Material Transporter
The 50 ton Battery Motorized Coil Transfer Cart/Battery Powered Factory Coils Material Transporter meet JB/T6127-10 machinery industrial standards. All the 50 ton Battery Motorized Coil Transfer Cart/Battery Powered Factory Coils Material Transporter are of compact structure, beautiful appearance, accurate positioning, and steady turn capacity, and strong climbing capacity, simple operation, long driving range, low noise, easy maintenance and easy remote control without wire.
Working Principle
The 50 ton Coil Transfer Cart is battery powered. The batteries are installed in the 50 ton Coil Transfer Cart. The batteries supply electricity to the DC motor through the electrical control system to make the flat carts start, stop, go forward and backward, and the speed can be adjusted at the same time, besides that, many other functions can also be conducted by the aid of this kind of principle.
Advantages
1. The DC motor in the 50 ton Battery Coil Transfer Carthas the advantages of stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
2. Compared with the BJT and BDG flat carts, the BWP series are more safe and flexible.
3. It has no strict requirement for the construction of the railway
4. No limit of running distance
5. Safe and convenient operation for there is no wire outside the car
6. Adjustable speed
Product parameters
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |

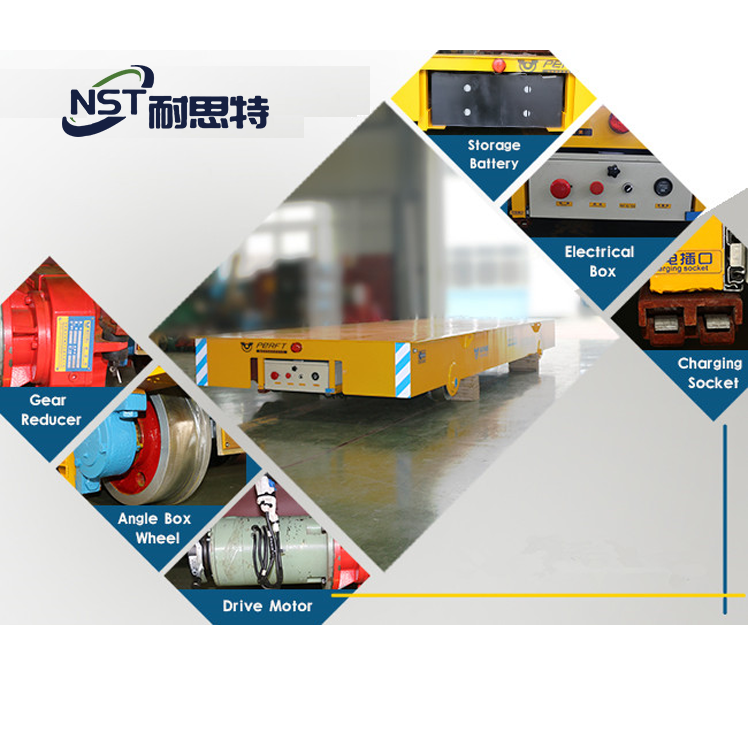

Details
Application
This kind of 50 ton Battery Coil Transfer Cart can be used both on the 'S' and arc-shaped railways to carry many different kinds of stuff. The 50 ton Battery Motorized Coil Transfer Cart/Battery Powered Factory Coils Material Transporter also can be used in the ferry condition and flammable, explosive environment, the hydraulic lifting device can be used installed on the flat transfer carts. This kind of battery flat transfer cart is suitable to be used in the long running distance transportation and low using frequency.
