Electric Material Handling Equipment Trackless Transfer Cart for Industrial Material Handling
The Electric Material Handling Trackless Transfer Cart for Industrial Material Handling get rid of the limits of the orbit. The supply power of the 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling can be choose,such as:battery powered,rail powered,cable reel powered,cable drum,etc.The PLC system of the 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling can be easy to operate.The capacity and table size can be customized.
Advantages and functions
1.Easy to operate.
2.Body light , easy to control .
3.The capacity can be choose during the 0-150 if need.
4.The Ground Clearance of the trackless transfer cart is 50mm.
5.The Trackless Transfer Cart is suitable for factory material transportation.
6.The Trackless Transfer Cart is required cement ground.
7.The Trackless Transfer Cart can turn to 360 degree.
8.The Trackless Flat Transfer Cart could be a flat table or a fence.(Customizable)
Detailed Image
The Electric Material Handling Trackless Transfer Cart for Industrial Material Handling consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling.
Technical parameter table
Rated Load(T) |
5 |
10 |
15 |
20 |
30 |
40 |
50 |
Ground Clearance(mm) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
Wheel Base(mm) |
1500 |
1500 |
1500 |
1700 |
1700 |
1800 |
1800 |
Turnning Radius(mm) |
2501 |
3101 |
3401 |
3901 |
4301 |
4801 |
5201 |
Axles Distance(mm) |
2500 |
3100 |
3400 |
3900 |
4300 |
4800 |
5200 |
Motor Power(Kw) |
3.5 |
5 |
6 |
7 |
10 |
12 |
15 |
Running Speed(m/min) |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-12 |
0-12 |
Cart Weight(t) |
4.3 |
5.3 |
6.6 |
7.9 |
8.8 |
10 |
10.5 |
Impacted Rated Load(t) |
7.5 |
15 |
22.5 |
30 |
45 |
60 |
75 |
Battery Capacity(Ah) |
180 |
160 |
180 |
180 |
250 |
300 |
330 |
Battery Voltage(v) |
36 |
48 |
48 |
48 |
48 |
48 |
48 |
Wheel Quantity |
4 |
4 |
4 |
4 |
44 |
4 |
4 |
Ground Requirement |
Cement Floor |
Cement Floor |
Cement Floor |
Cement Floor |
Cement Floor |
Cement Floor |
Cement Floor |

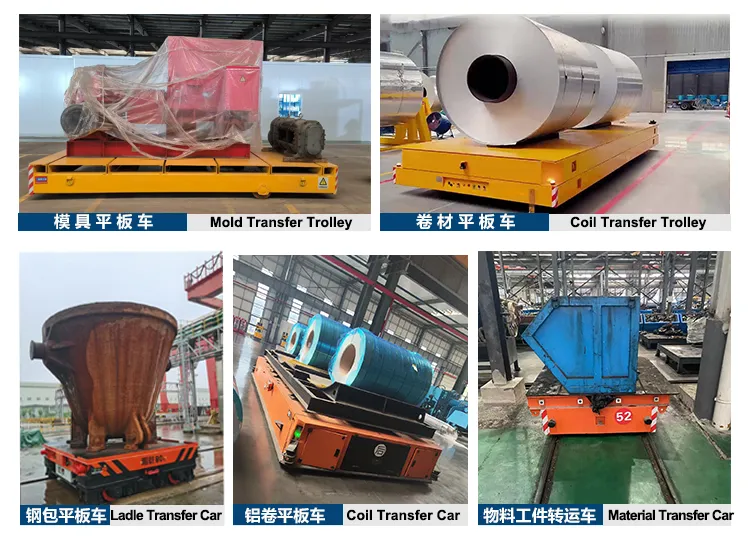

Application
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling has been highly approved by our customers.
