30 ton battery powered carbon steel coil transfer trolley for coils transportation on rails
In order to meet industrial transport demand, we design the kinds of steel coil transfer trolley, including the 30 ton battery powered carbon steel coil transfer trolley for coils transportation on rails,which makes the transporting more convenient and realized turning easily. What’s more, the safe protection has been done in many points, which not only promote safety factor but also get good assessment from our client all over the world.This kind of Rail Coil Transfer Heavy Load Mover is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the “S”and arc-shaped railways.
Advantages of 30 ton battery powered carbon steel coil transfer trolley for coils transportation on rails
1.The hydraulic lifting device can be equipped as per your requirement.
2.Powered by battery, so there is not strict requirement for the construction of the railway ,and the running distance should accord to the length of the cable
3.Aapplied in many occasions, such as easy explosion, easy corrasion, high temperature
4.Run on the straight railways to carry many material, workpiece, workpiece
5.Cost is not high, easy to operate and maintenance
6.No strict requirement for the construction of the railway
7.Safe and convenient operation for there is no wire outside the car
8.Equiped with sensor at the start and ends sides of rails for safety protection.Material is loeaded onto the car for next procedure

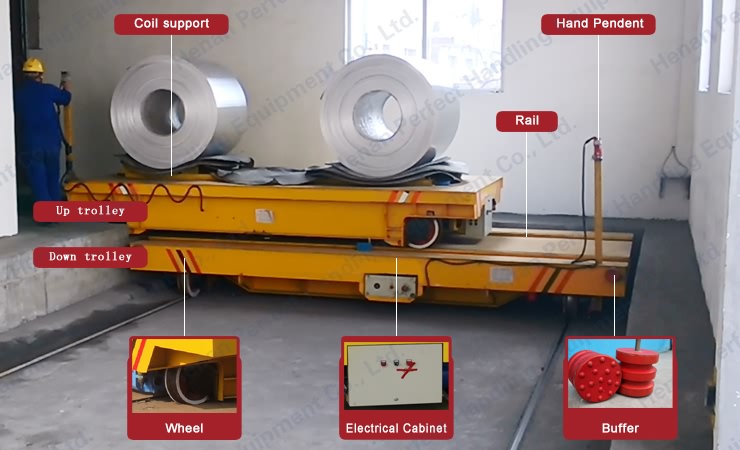

Main components of 30 ton battery powered carbon steel coil transfer trolley for coils transportation on rails
Technical parameters of 30 ton battery powered carbon steel coil transfer trolley for coils transportation on rails
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

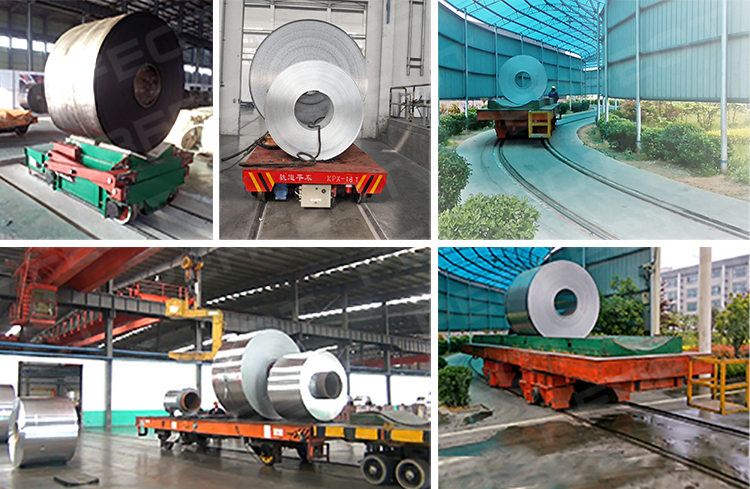

Application and usage of 30 ton battery powered carbon steel coil transfer trolley for coils transportation on rails
The application range includes: car field, steel, iron, heavy industry, project, spaceflight, coal, nuclear energy, hydraulic engineering, warehouse, etc.For material transport: steel ladle, steel structure, steel pipe, plastic material handle, mould, beam, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet...
