Automated Trackless Transfer Cart for Industrial Material Handling Equipment
The BWP series Automated Trackless Transfer Cart for Industrial Material Handling Equipment usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.The Electric Trackless Transfer Flat Car is supplied to pulling motor through electric control system,which makes the Automated Trackless Transfer Cart for Industrial Material Handling Equipment start,stop,move background,turn around and realize other functions.Also, we will provide intelligent automatic rapid charger with the car. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if The Automated Trackless Transfer Cart for Industrial Material Handling Equipment is necessary.
Advantages and functions of the Automated Trackless Transfer Cart for Industrial Material Handling Equipment
1.Needn’t run via the rails, which gets rid of relying for the rails.
2.Run freely on the cement ground, go forward, back forward, turning.etc.
3.Battery powered, so only charged fully.
4.No limitation of the running distance.
5.Can get hydraulic lifting device.
6.Customized as per your true demand.
7.Can add V/U shape for coils transportation.
8.Can add ladle support for hot melton transport.
9.Can adapted Waterproof material,and Explosion-proof device.

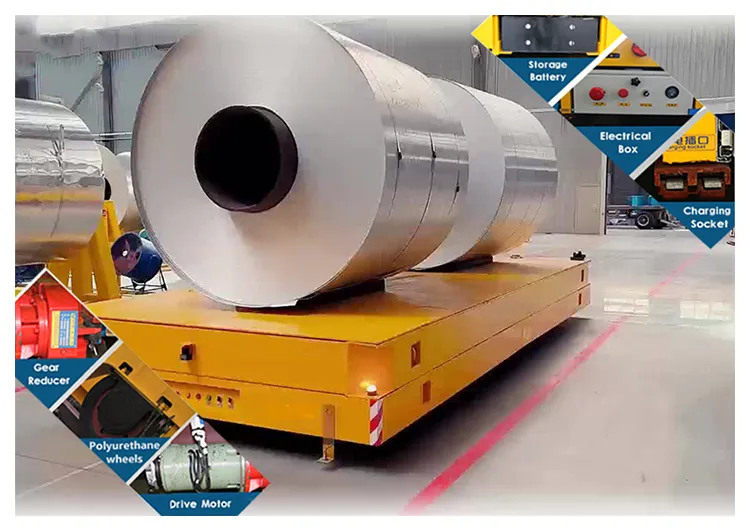

Detailed Image of Automated Trackless Transfer Cart for Industrial Material Handling Equipment
The Automated Trackless Transfer Cart for Industrial Material Handling Equipment consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the Electric Trackless Transfer Flat Car.
Technical parameter table of Automated Trackless Transfer Cart for Industrial Material Handling Equipment
| Rated Load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |

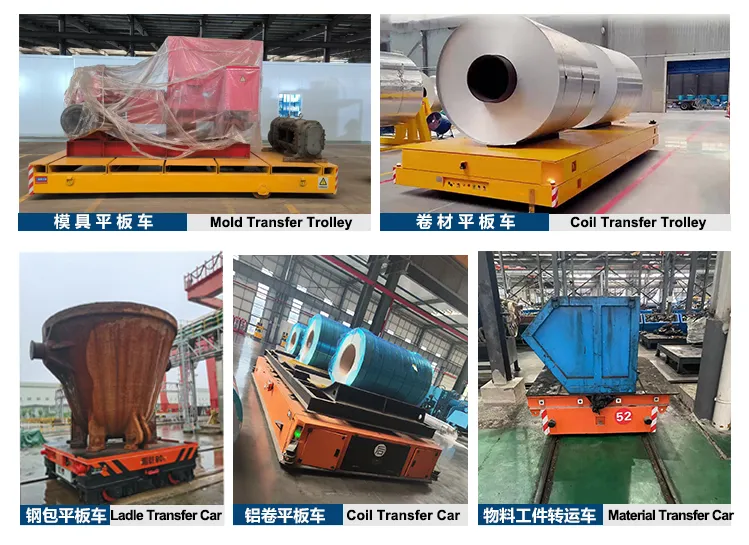

Application of the Automated Trackless Transfer Cart for Industrial Material Handling Equipment
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The Automated Trackless Transfer Cart for Industrial Material Handling Equipment has been highly approved by our customers.
