heavy duty steel coil transfer cart for steel plant on rails for steel coil and aluminium cargo transportation
Advantage and functions of the heavy duty steel coil transfer cart for steel plant on rails for steel coil and aluminium cargo transportation
Excellent gear reducer and motor with high quality, assemblied together perfectly
Safe devices are installed in the powered coil rail car
Wireless remote control for the operatation of the powered coil rail car well
Customization can be supported for the powered coil rail car
The kind of powered coil rail car can be applied in high temperature, easy explosion, ponding, dust, scrap iron,etc
The hydraulic lifting device can be equipped as per customers' demand
The V-frame can be installed for rounded and rolling material
High frequency using and low cost of this coil handling equipment
Rail powered,no limitation of the running time
The running distance of this kinds powered coil rail car according to your work condition
The powered coil rail car is no strict requirement for the rail
The package wooden case of the coil transfer cart is waterproof

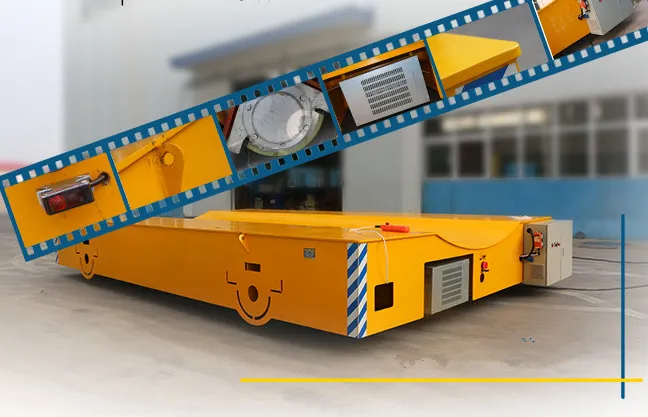

Main Componences of the heavy duty steel coil transfer cart for steel plant on rails for steel coil and aluminium cargo transportation
Technical Table of the heavy duty steel coil transfer cart for steel plant on rails for steel coil and aluminium cargo transportation
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
The Scheme of the heavy duty steel coil transfer cart for steel plant on rails for steel coil and aluminium cargo transportation
Application and Usage of the heavy duty steel coil transfer cart for steel plant on rails for steel coil and aluminium cargo transportation
