Worm Gear Box Butt Welded End Metal Sealing Butterfly Valve (GA363H/F)

Worm Gear Box Butt Welded End Metal Sealing Butterfly Valve (GA363H/F) thumbnail-1

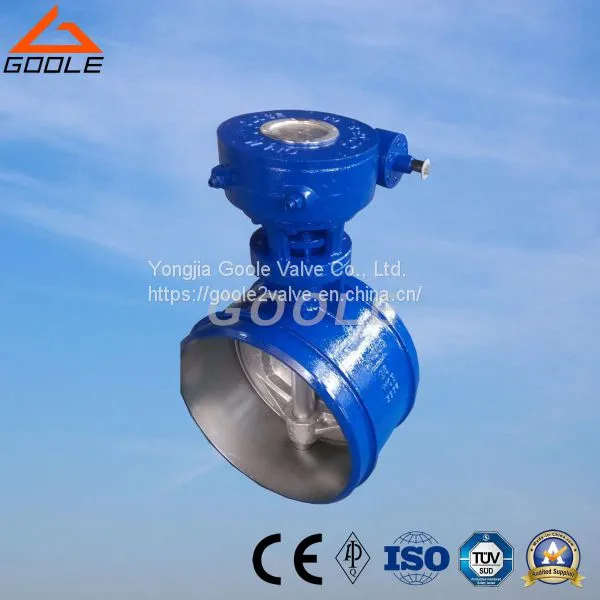

Worm Gear Box Butt Welded End Metal Sealing Butterfly Valve (GA363H/F) photo-1
US$ 2 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
goole
Place of Origin:
China
Model Number:
GA363H/F
Contact Supplier Request Quote Chat Now
Yongjia Goole Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name goole
Place of Origin China
Model Number GA363H/F
Material Forged
Application General
Structure Butterfly
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Hydraulic
Port Size Ningbo
Media Gas
Temperature of Media Medium Temperature

Specification.

1.Design Manufacture Conforming to GB/T12238-1989.
2.Face to face length conforming to GB12221-2005.
3.Welding conforming to ASME B16.25 GB/T12224.
4.Valve Test conforming to JB/T 9092-1999.

Main Specification.


Nominal Diameter DN(mm) 100~1600
Nominal Pressure Pn(Mpa) 1.0 1.6 2.5 4.0
Test pressure(Mpa) Strength 1.5 2.4 3.75 6.0
Seal 1.1 1.76 2.75 4.4
Gas seal 0.5~0.7Mpa
Suitable Medium Water,oil,gas,coal gas,acid,alkali
Suitable Temp. -196~600 C.


Main External Dimensions.

Worm Gear Box Butt Welded End Metal Sealing Butterfly Valve (GA363H/F)

 150LB


DN L Dn H1 H2 H DO
in mm
3 76 114 89.1 186 90 230 160
4 100 127 114.3 195 100 239 160
5 125 140 139.8 208 113 252 160
6 150 140 165.2 240 130 284 160
8 200 152 216.3 265 202 307 200
10 250 165 267.4 295 235 337 200
12 300 178 318.5 340 280 392 250
14 350 190 355.6 383 315 435 300
16 400 216 406.4 427 355 481 400
18 450 222 457.2 467 370 521 400
20 500 229 508 499 406 568 450
24 600 267 609.6 618 464 689 500
28 700 39 711.2 745 560 903 350*
32 800 318 812.8 809 630 967 350*
36 900 330 914.4 873 697 1030 350*
42 1050 410 1066.8 964 777 1122 350*


 300LB


DN L Dn H1 H2 H DO
in mm
3 76 118 89.1 242 108 286 160
4 100 190 114.3 204 108 248 160
5 125 200 139.8 214 120 258 160
6 150 210 165.2 259 135 301 200
8 200 230 216.3 276 202 318 200
10 250 250 267.4 313 235 365 250
12 300 270 318.5 363 280 415 300
14 350 290 355.6 406 315 458 400
16 400 310 406.4 441 355 510 450
18 450 330 457.2 523 370 591 500
20 500 350 508 602 420 740 350*
24 600 390 609.6 695 490 833


Product Tags: valve , Butterfly Valve

Send Inquiry to This Supplier
