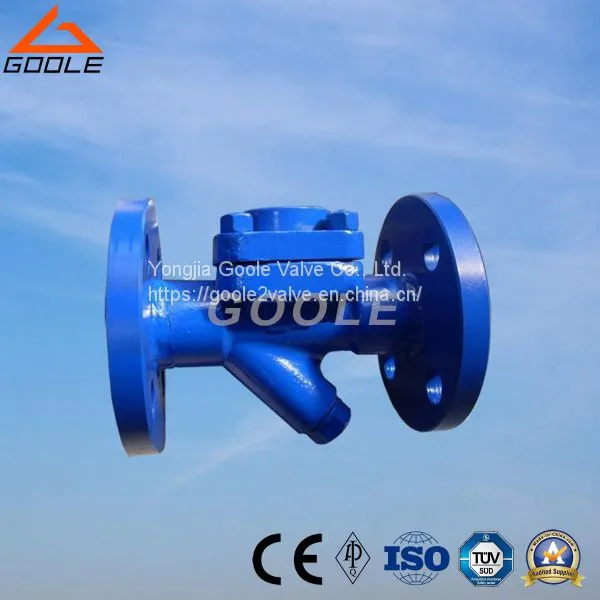

Thermostatic Disc Type Steam Trap (GACS46h)
US$ 2 - 50
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Goole
Place of Origin:
China
Model Number:
GACS46h
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
45 days
Related Products
-
Flanged High Pressure Temperature Disc A105 Steam Trap (GAHR/GARW/GAHRF)US$ 2 - 50MOQ: 10 Pieces -
High Capacity Ball Float Steam Trap Valve (GAFT14HC)US$ 2 - 50MOQ: 10 Pieces
-
High Pressure and Temperature Free Ball Float Steam Trap (GACS41Y/GACS61Y)US$ 2 - 50MOQ: 10 Pieces
-
Hr80/Hr260 High Pressure-Temperature Steam TrapUS$ 2 - 50MOQ: 10 Pieces
-
Hrw/Hrf 150 High Pressure Temperature Disc Steam TrapUS$ 2 - 50MOQ: 10 Pieces
Brand Name
Goole
Place of Origin
China
Model Number
GACS46h
Material
Forged
Application
General
Structure
Pilot
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Pneumatic
Port Size
Ningbo
Media
Water
Temperature of Media
Medium Temperature
Brief Introduction.
This type of steam trap use a metal diaphragm capsule as main element,when the temperature change,the element will expand or contract to control the open-close of steam trap,it is widely applied in steam pipelines and related applications for energy saving.
Field of Application.
Product Name: CS46H Diaphragm Capsule Steam Trap.
Pressure Rating: 1.6 -40Mpa.
Nominal Diameter: DN15-50 mm.
Body Material: Steel WCB.
Standard flanges: DIN, ANSI, JIS.
Main Technical Parameters and Indexes of Performance.
| Applicable Pressure Range(Mpa) | 0.01-2.5 |
| Max.allowable Temperature | 300 |
| Temperature of valve-openning | 15/30 |
Material of Main Component.
| Name of component | Material of component |
| Body,Cap | WCB/304 |
| Seat | 2Cr13/304 |
| Diaphragm Capsule | 304 |
| Strainer | 304 |
Main External Dimensions.
|
|
| DN | L | H1 | H | W |
| 15-20 | 150 | 55 | 113 | 70 |
| 25 | 160 | 55 | 113 | 70 |
| 32-50 | 230 | 60 | 145 | 120 |
