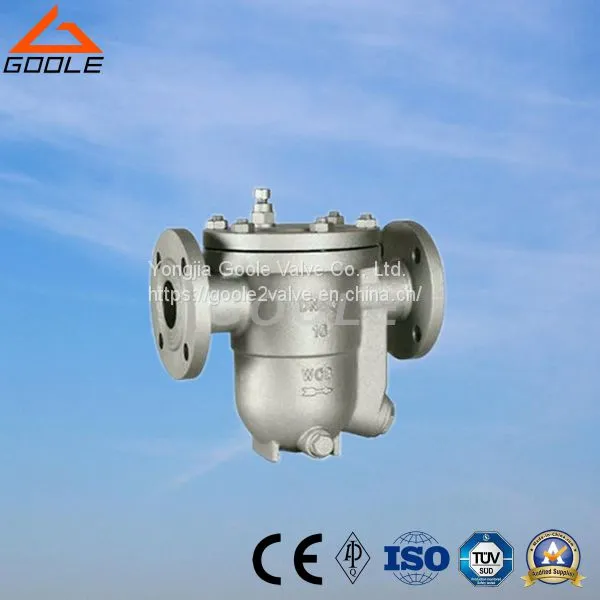

Help CenterWcb Flanged Free Ball Float Steam Trap (CS41)
Related Products
-
Diaphragm Capsule Steam Trap (GACS16H)US$ 2 - 50MOQ: 10 Pieces -
Thermostatic Disc Type Steam Trap (GACS46h)US$ 2 - 50MOQ: 10 Pieces
-
Flanged High Pressure Temperature Disc A105 Steam Trap (GAHR/GARW/GAHRF)US$ 2 - 50MOQ: 10 Pieces
-
High Capacity Ball Float Steam Trap Valve (GAFT14HC)US$ 2 - 50MOQ: 10 Pieces
-
High Pressure and Temperature Free Ball Float Steam Trap (GACS41Y/GACS61Y)US$ 2 - 50MOQ: 10 Pieces
Brief Introduction.
Advantages.
1.Continues discharging saturation condensed water without accumulation, and so get the maximum thermal efficiency.
2.When steam pressure changes, the ball float can adjust the opening of valve seat without influence, and so it is stable.
3.With automatic and manual releaser, and so its exhaust performance is good without airlock and working is smooth without noise.
Working Principle.
By the action of buoyancy, the position of floating ball changes with the water level of condensation water and adjust the opening of valve seat automatically, continue to discharge condensation water, when the condensation water stops, the floating ball fall onto bottom by gravity, then close opening of drain valve. The opening of drain valve is below the water lever, and so the water is separated from steam automatically, and form water seal without steam leakage.
Application.
By automation, speediness and continuing features, this valve is used for the steam heating equipment, condensation water recovery system and the place where needs removing condensation water at quick speed, and so stop steam leakage effectively and obtain optimum heating.
Main Technical Parameters and Indexes of Performance.
| Mini Working Pressure | 0.01Mpa | Maxi allowable temperature for cast steel | 42 5 |
| Mini Working Pressure | 0.01Mpa | Maxi allowable temperature for cast steel | 42 5 |
| Mini degree of super cooling | 0 | Maxi allowable temperature for stainless steel | 525 |
| Leakage rate with loading | 0 | Working Medium | Saturated vapor, condensed water |
| Maxi allowable rate of back pressure | 80% | Exhaust plant | Stainless steel / alloy |
Material of Main Component.
| Valve body, cap | WCB / 304 |
| Valve seat | 2Cr13 / 304 |
| Floating ball | Stainless steel |
| Filter | Stainless steel |
Main External Dimensions.
|
|
| Producnt model | DN | Conjunction method | Max.allowable temp. | Material of valve body | External dimension (mm) | |||
| L | H1 | H2 | W | |||||
|
A series Free Ball floating Steam Trap |
15 | Internal thread | 350 | WCB | 120 | 82 | 89 | 84 |
| 20 | Internal thread | 350 | WCB | 120 | 82 | 89 | 84 | |
| 25 | Internal thread | 350 | WCB | 120 | 84 | 95 | 84 | |
|
B series Free Ball float Steam Trap |
15 | Internal thread | 350 | WCB | 150 | 84 | 114 | 114 |
| 20 | Internal thread | 350 | WCB | 150 | 84 | 114 | 114 | |
| 25 | Internal thread | 350 | WCB | 150 | 86.5 | 116.5 | 114 | |
| 32 | Internal thread | 350 | WCB | 155 | 98.5 | 104.5 | 114 | |
| 40 | Internal thread | 350 | WCB | 155 | 98.5 | 104.5 | 114 | |
| 50 | Internal thread | 350 | WCB | 210 | 98.5 | 104.5 | 114 | |
|
C series Free Ball float Steam Trap |
15 | Flange | 350 | WCB | 195 | 94.5 | 107 | 132 |
| 20 | Flange | 350 | WCB | 195 | 97 | 104.5 | 132 | |
| 25 | Flange | 350 | WCB | 215 | 101.5 | 111.5 | 140 | |
|
D series Free Ball float Steam Trap |
25 | Flange | 350 | WCB | 270 | 102.5 | 151 | 180 |
| 32 | Flange | 350 | WCB | 270 | 109 | 154.5 | 180 | |
| 40 | Flange | 350 | WCB | 280 | 112 | 170 | 184 | |
| 50 | Flange | 350 | WCB | 290 | 117 | 175 | 195 | |
|
F series Free Ball float Steam Trap |
50 | Flange | 350 | WCB | 410 | 132 | 129 | 270 |
| 65 | Flange | 350 | WCB | 410 | 139.5 | 136.5 | 270 | |
| 80 | Flange | 350 | WCB | 430 | 148 | 313 | 275 | |
| 100 | Flange | 350 | WCB | 430 | 158 | 323 | 280 | |
|
G series Free Ball float Steam Trap |
80 | Flange | 350 | WCB | 550 | 147 | 331 | 335 |
| 100 | Flange | 350 | WCB | 550 | 147 | 331 | 335 | |
| 125 | Flange | 350 | WCB | 550 | 169.5 | 353.5 | 335 | |
| 150 | Flange | 350 | WCB | 550 | 169.5 | 353.5 | 335 | |
