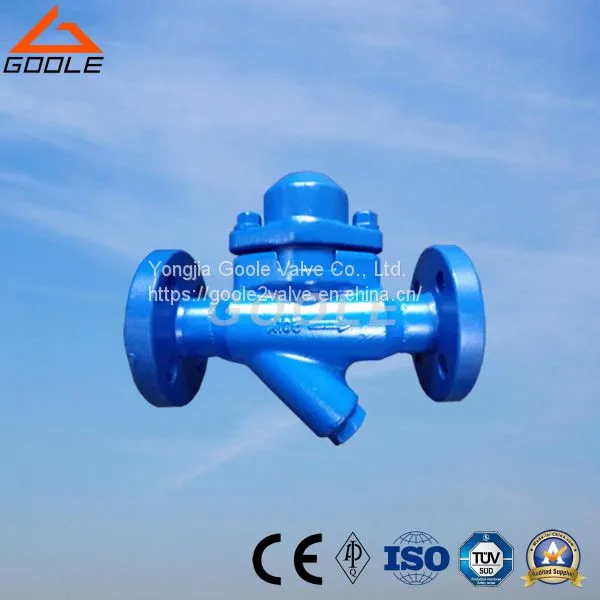

The Thermostatic Bimetallic Steam Trap BK45 is used for low capacity applications such as drip and tracing, and economically combines steam trap, check valve and Y-Strainer (with optional blow off valve) in a small profile with a convenient 2-bolt cover for easy maintenance.
Features and Benefits
• Forged steel body and cover.
• Pressure assisted fail-open design.
• Factory-preset bimetallic regulator with integral staged nozzle. No adjustment required.
• Discharges hot condensate in a modulating fashion at approximately 18°F (10°C) below saturation temperature throughout its operating range. One internal regulator for all pressure ranges.
• Unaffected by water hammer or superheat-solid stainless steel internals.
• Self draining - will not freeze when installed in gravity drainage position.
• Automatically vents air and non-condensable gases and has a high (6:1) cold water capacity for rapid start-up.
• Operates with zero steam loss throughout its operating range saving steam and money during the life of the trap.
• Easy in-line inspection and maintenance - mechanical stops prevent crushing of the gasket for extended gasket life.
• Can be installed in any position.
• Internal stainless steel Y-strainer, with optional blowoff valve.
• Integral check valve design.
Materials
• Body and Cover - ASTM A105 (DIN 1.0460)
• Cover Bolts - ASTM A193 B7 (DIN 1.7258)
• Bimetallic Regulator - Stainless Steels
• Other Internals - Stainless Steel Available End Connections
Flanges: ANSI 150RF and 300RF (DIN, PN 40)
Screwed sockets: NPT, BSP
Socket-weld, Butt weld
