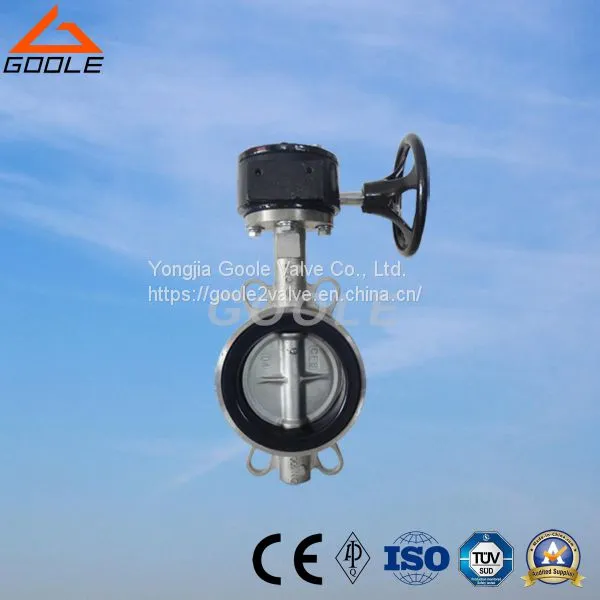

Manual Soft Seal Wafer Type Butterfly Valve (GAD371X)
US$ 2 - 50
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
goole
Place of Origin:
China
Model Number:
GAD371X
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
45 days
Related Products
-
Bellows Thermostatic Steam Trap/Liquid Expansion Type Steam Trap (GACS44H/GACS14F)US$ 2 - 50MOQ: 10 Pieces -
Adjustable Constant Temperature Type Steam Trap (GASTC)US$ 2 - 50MOQ: 10 Pieces
-
FT43 Ball Float Steam TrapUS$ 2 - 50MOQ: 10 Pieces
-
FT14 Ball Float Steam TrapUS$ 2 - 50MOQ: 10 Pieces
-
Thermostatic Bimetallic Steam Trap (GACS17h)US$ 2 - 50MOQ: 10 Pieces
Brand Name
goole
Place of Origin
China
Model Number
GAD371X
Material
Forged
Application
General
Structure
Butterfly
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Hydraulic
Port Size
Ningbo
Media
Gas
Temperature of Media
Medium Temperature
Soft sealing butterfly valve is used for connecting medium or adjusting the flow rate in the pipelines,the temperature of medium can be 120 degree celsius,the working pressure can be 1.6 Mpa.It's widely applied in food,medicine,chemical,petroleum,electric power,metallurgy,urban construction,textile,papermaking.,etc industrial sectors.
Main Characteristics.
New design,unique structure,light weight,swift to open or close.
Small operating torque,easy operating,saving effort.
Can be installed anywhere,easy maintenance.
Sealing part is replacable,reliable sealing,zero leakage.
Sealing material is age-resistant and anti-corrosive,greatly prolong the service life.
Main Technical Parameters.
| Nominal diameter | DN | 50-1200 | ||
| Nominal pressure | PN | 0.6 | 1.0 | 1.6 |
| Test pressure | Shell test | 0.9 | 1.5 | 2.4 |
| Seal test | 0.66 | 1.1 | 1.76 | |
| Medium | Fresh water,sewage,sea water,air,steam,food,drug,various oil,acid,alkali,salt.,etc. | |||
Main Parts and Materials.
| Part Name | Part Material |
| Body | Ductile iron,cast steel,alloy steel,stainless steel. |
| Disc | Gray cast iron,ductil iron,cast steel,stainless steel and others. |
| Seat ring | NBR,EPDM,PTFE and others |
| Stem | Cr13,stainless steel |
| Packing | Graphite or others. |
Main Extenal Dimensions.
| Class | DN | L | d | Do | n-M | H | H1 | H2 |
| 150LB | 50 | 43 | 52.9 | 120.7 | 4-5/8 UNC | 210 | 161 | 80 |
| 65 | 46 | 64.5 | 139.7 | 4-5/8 UNC | 225 | 175 | 89 | |
| 80 | 46 | 78.8 | 152.4 | 4-5/8 UNC | 235 | 181 | 95 | |
| 100 | 52 | 104 | 190.5 | 8-5/8 UNC | 250 | 200 | 114 | |
| 125 | 56 | 123.3 | 215.9 | 8-3/4 UNC | 265 | 213 | 127 | |
| 150 | 56 | 155.6 | 214.3 | 8-3/4 UNC | 276 | 226 | 139 | |
| 200 | 60 | 202.5 | 298.5 | 8-3/4 UNC | 320 | 260 | 175 | |
| 250 | 68 | 250.5 | 362 | 12-7/8 UNC | 355 | 292 | 203 | |
| 300 | 78 | 301.6 | 431.8 | 12-7/8 UNC | 400 | 337 | 242 |
