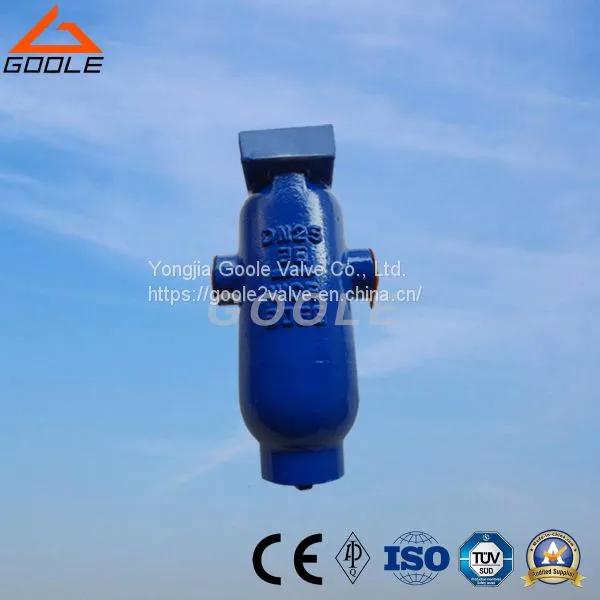

Help CenterCF41f Type Steam Water Separator (GACF41)
Related Products
-
Complex Overheated Steam Inverted Bucket Steam Trap (GACS15Y/GACS45Y/GACS65Y)US$ 2 - 50MOQ: 10 Pieces -
Free Ball Float Steam Trap (CS11)US$ 2 - 50MOQ: 10 Pieces
-
Wcb Flanged Free Ball Float Steam Trap (CS41)US$ 2 - 50MOQ: 10 Pieces
-
Diaphragm Capsule Steam Trap (GACS16H)US$ 2 - 50MOQ: 10 Pieces
-
Thermostatic Disc Type Steam Trap (GACS46h)US$ 2 - 50MOQ: 10 Pieces
Brief Introduction.
This type of steam separator use the sharp change of steam flow to separate the droplets from the steam,it is mainly used for supplying dry steam to steam facilities and protecting facilities from water hammer,besides of steam,the medium can also be compressed air and other gas,It has following advantages:
Can adjust the air inflow automatically with the pressure change of medium,reduce vibration and noise.
Pressure can rise with the temperature of steam,greatly reduce the power of pump motor,therefor realize the purpose of energy-saving.
Heat efficiency can reach to 100%,save steam by at leat 20%.
Easy maintenance and long service life.
Field of Application.
Product Name: CF41 type Steam Water Separator.
Pressure Rating: 1.6- 3.0 Mpa.
Nominal Diameter: DN65-350 mm.
Body Material: Steel WCB,Stainless Steel.
Standard flanges: DIN, ANSI, JIS.
Main Technical Parameters and Indexes of Performance.
| Highest separation efficiency(dry degrees) | 98% |
| Minimum Pressure Drop | 0.5 % |
| Max.Allowable Temperature | 350 |
| Pressure Range(Mpa) | 0.01-2.5 |
Material of Main Component.
| Name of component | Material of component |
| Body | WCB,Stainless Steel |
| Internal Parts | Stainless Steel |
Main External Dimensions.
|
| DN | L | H1 | H2 |
| 20-32 | 320 | 65 | 100 |
| 40-50 | 460 | 80 | 140 |
| 65 | 490 | 90 | 180 |
| 80-100 | 510 | 110 | 190 |
| 125-150 | 590 | 145 | 200 |
