2018 Balancing Machine Specially for Turbocharger in Hot Sale
US$ 1000 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JP balancer
Place of Origin:
China
Model Number:
PHZY-1.6/5/16
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
20 days
Related Products
-
2018 High-precise PRZY-0.5/5kg Serial Dynamic Balancing Machines Specially Applied for TurbochargerUS$ 1000 - 15000MOQ: 1 Set -
High Quality Precise Universal-joint Balance Machine CE PHW-3000HUS$ 10000 - 30000MOQ: 1 Set
-
2017 Motor Rotor, Generator Rotor, Armature Dynamic Balancing MachineUS$ 10000 - 20000MOQ: 1 Set
-
2017 High Quality High-precise Automatic Drilling Balancing MachineUS$ 10000 - 100000MOQ: 1 Set
-
Brake Disc Drum Rotor Automatic Dynamic Balancing MachineNegotiableMOQ: 1 Set
Brand Name
JP balancer
Place of Origin
China
Model Number
PHZY-1.6/5/16
Power
Electronic
Usage
Balancing Machine
| Product Name | Turbocharger balancing machines |
| Application | turbocharger rotor dynamic balance |
| Dimensions | 800*700*1400mm |
| Power Supply | 3 phase, 220v, 50 hz |
| Machine weight | 200kg |
| Drive Power | 0.23 kw |
| Delivery time | Within 20 days |
| Certificates | CE ISO SGS BV |
| Package | One fumigated wooden case |
| Warranty | 12 months |

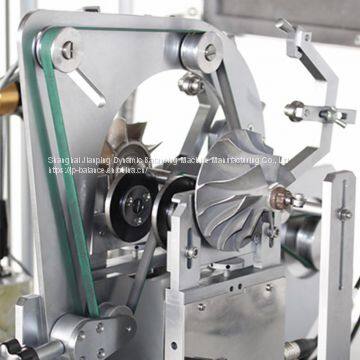

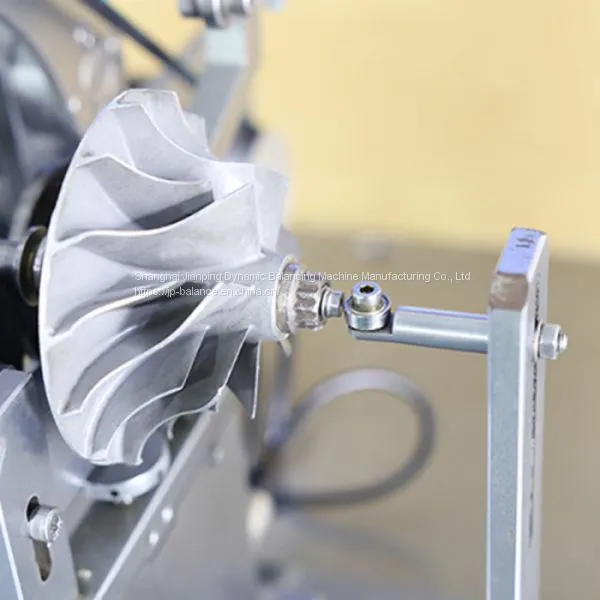

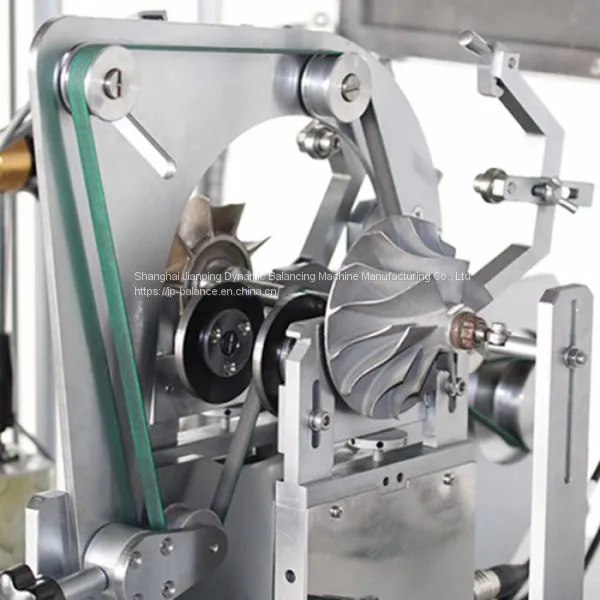

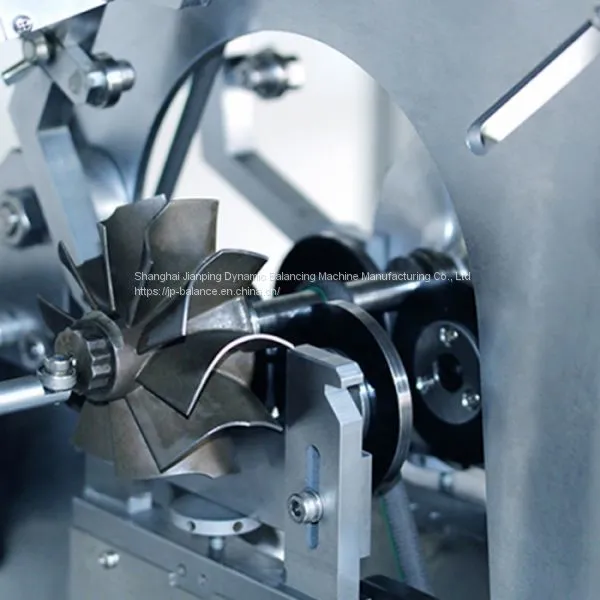

• Widely used in balancing turbocharger, turbocharger impellers,turbocharger compressors ,turbocharger turbines etc .
• Auto-positioning bed,17#LCD screen,large tool carriage structure
• Dedicated bracket,driven by Nylon belt ,variable speed motor 230W
This balancing machine is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by Nylon belt , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency .
| Technical data at a glance | PHZY-1.6/5/16 |
| Maximum weight of workpiece(kg) | 1.6/5/16 |
| Maximum diameter of workpiece(mm) | 300 |
| The distance between two bearing pedestals (mm) | 25-480 |
| Journal diameter on roller carriages(mm) | 3-40 |
| Belt driving diameter(mm) | 15-150 |
| Rotation speed when the diameter of operating transmission is 100mm(r/min) | ~1470 |
Motor power (kw) |
0.23DC |
Minimum achievable residual unbalance (emar) |
