2017 High Quality High-precise Automatic Drilling Balancing Machine
US$ 10000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JP
Place of Origin:
China
Model Number:
A1LZ1
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
25 days
Related Products
-
Brake Disc Drum Rotor Automatic Dynamic Balancing MachineNegotiableMOQ: 1 Set -
New Upgrading Crankshaft Automatic Balancing Correction Machines in Hot SaleUS$ 10000 - 100000MOQ: 1 Set
-
Automatic Balancing Correction Machine With Production LineUS$ 10000 - 100000MOQ: 1 Set
-
Cooling Fan Automative Balancing MachineUS$ 1000 - 14000MOQ: 1 Set
-
Rotor Balancing Machine for Cars and Trucks AlternatorUS$ 1000 - 9000MOQ: 1 Set
Brand Name
JP
Place of Origin
China
Model Number
A1LZ1
Power
Electronic
Usage
Balancing Machine
• Manual loading and unloading
•15-inch touch screen
• Advanced balancing measuring software
• Automatic measure,automatic milling and correction,automatic retest
• Rigidity structure design,with a longer use life

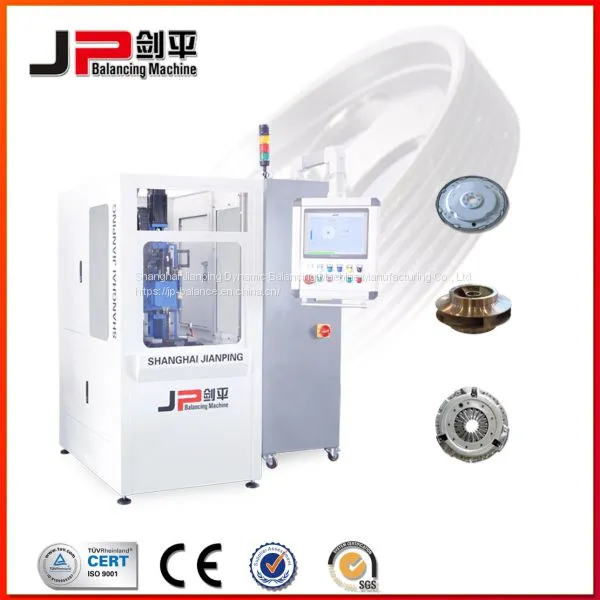

Automatc Vertical Balancing Correction Machine A1LZ1 is designed specially for the automatic balancing of disc-shaped parts in one plane,
Automatc Vertical Balancing Correction Machine A1LZ1 with one station is one of the advanced vertical balancing machine of shanghai jianping,the whole balancing task is competely automatically including measuring,indexing,milling correction and checking,A1LZ1 is a good choice to mass produce with short cycle time,high efficiency and high accuracy
Parameters of Balancing Unit | |
| Max Mass of Workpiece(kg) | 35(clamp included) |
| Max Height of Workpiece (mm) | 200 |
| Max Diameter of Workpiece (mm) | 400 |
| Max Balancing Speed(r/min) | 800 |
| Motor Power(kw) | 1.5 |
| Min Achievable Residual Unbalance Amount (g.mm/kg) | 5 |
| Drilling Unit | |
| Drilling Speed(r/min) | 1500 |
| Cutting Spindle Motor Power(kw) | 0.75 |
| Max Allowed Correct Times | 2 |
| Machine Parameter | |
| Machine Motor Power(kw) | 6 |
| Machine Weight(ton) | 1.5 |
| Dimensions(mm) | 900*1300*1850 |
| Pressure(Mpa) | 0.4-0.8 |
| Processing Period(s/pcs) | 90 |
