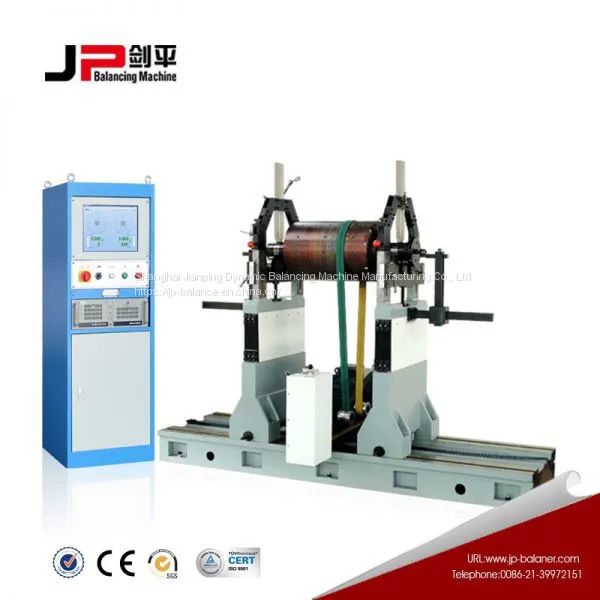

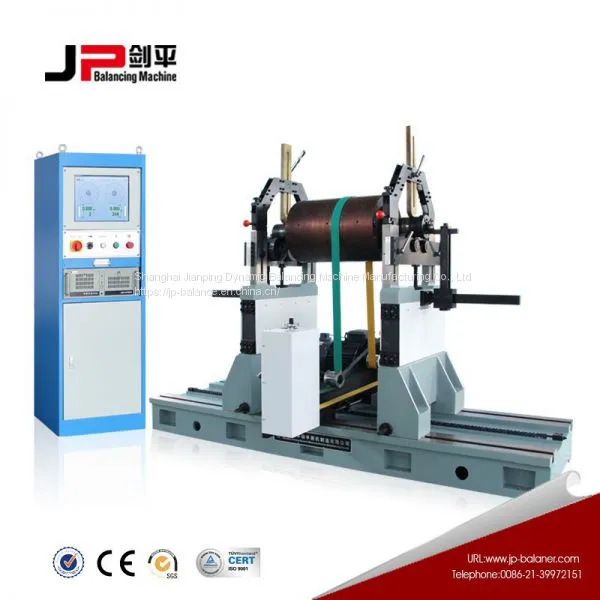

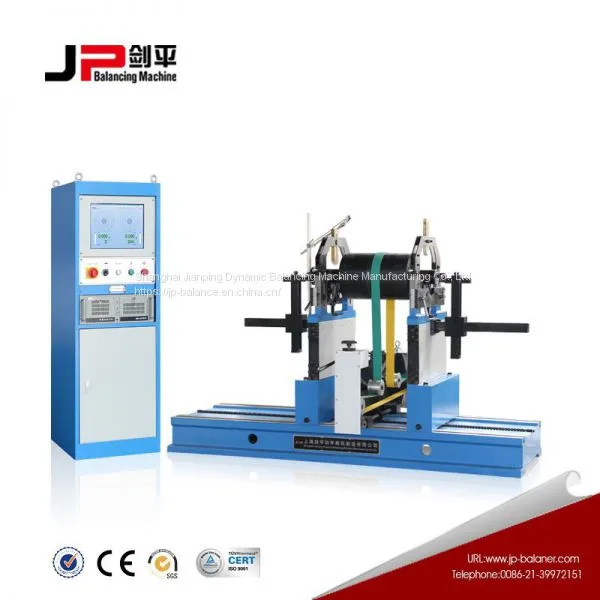

High quality bend pulley dynamic balancing instrument
Production Description
• Specially designed brackets transmit mechanical force with low vibration damping
• Durable and reliable sensor possesses good linearity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Belt-driving offers higher precision and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of application
Range of Application
Widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, textile machinery, fans, impeller, rubber roller, cylinder, shaft, etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Production Parameters of bend pulley dynamic balancing instrument
Technical data at a glance |
PHQ-1000 |
PHQ-2000 | PHQ-3000 | PHQ-5000 |
Max Mass of Workpiece (kg) |
1000 |
2000 |
3000 |
5000 |
Max Diameter of Workpiece (mm) |
1500 |
1800 |
2000 |
2000 |
Distance between Two Support Bearings (mm) |
160~1500 |
180~1700 |
500~2200 |
500~2200 |
Journal Diameter Scope of Workpiece (mm) |
35~200 |
40~240 |
40~380 |
40~380 |
Diameter Scope of Driving Belt (mm) |
40~400 |
40~600 |
50~1000 |
50~1000 |
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) |
1148,15541) |
590,13751) |
795,18531) |
795,18531) |
Motor Power (kw) |
42) |
5.52) |
7.52) |
152) |
Min Achievable Residual Unbalance Amount (emar) |
Min 0.5g· mm/kg |
Min 0.5g· mm/kg |
Min 0.5g· mm/kg |
Min 0.5g· mm/kg |
1) Stepless speed regulation
2) Frequency conversion
