Production Description

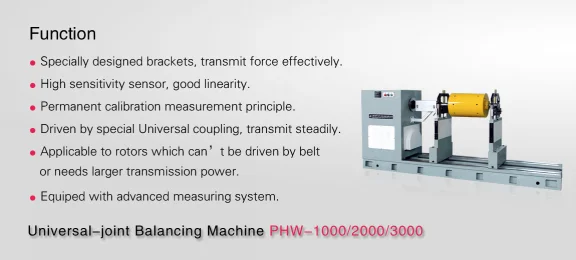

• Special designed brackets can effectively transmit mechanical force
• The durable and reliable sensor possesses high sensitivity
• The permanent calibration brings high accuracy
• Driven by universal coupling,transmit the power steadily
• Applicable to rotors which can't be driven by belt or need large power
• Advanced electrical measuring system and friendly man-machine interface
Range of Application

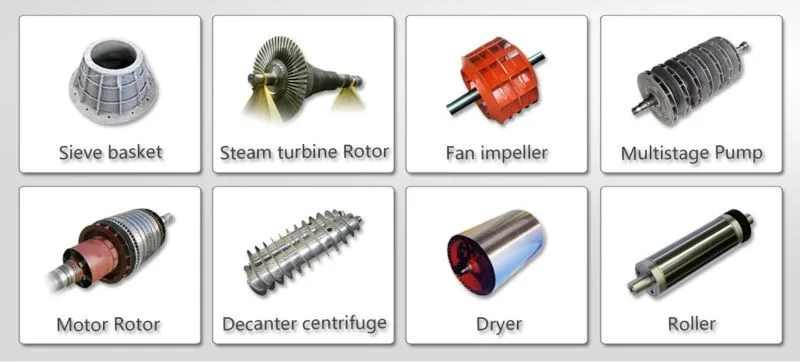

This balancing machine is mainly used in checking the balance of rotatable bodies such as medium-sized and large-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by universal joints, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc
Specification |
Parameters |
Maximum Weight of Work piece (Kg) |
1000 |
Maximum Diameter of Work piece (mm) |
Ø1600 |
Maximum Diameter of Work piece (mm) |
Min 60 |
Journal Diameter of Roller Carriage(mm) |
Standard Ø25~120 Also can extra increase to Ø120~240 |
Distance from Coupling Flange of Drive Shaft to center of Farthest Bearing Support(mm) |
2000 |
Spindle Speed(r/min) |
600,1095 Stepless regulation |
Motor Power(Kw) |
4 (AC frequency conversion) |
Universal Coupling Torque(N*m) |
250 |
Machine bed length ( mm) |
3000 |
Minimum achievable Unbalance Reduction Ratio(%) |
≤1g· mm/kg
|

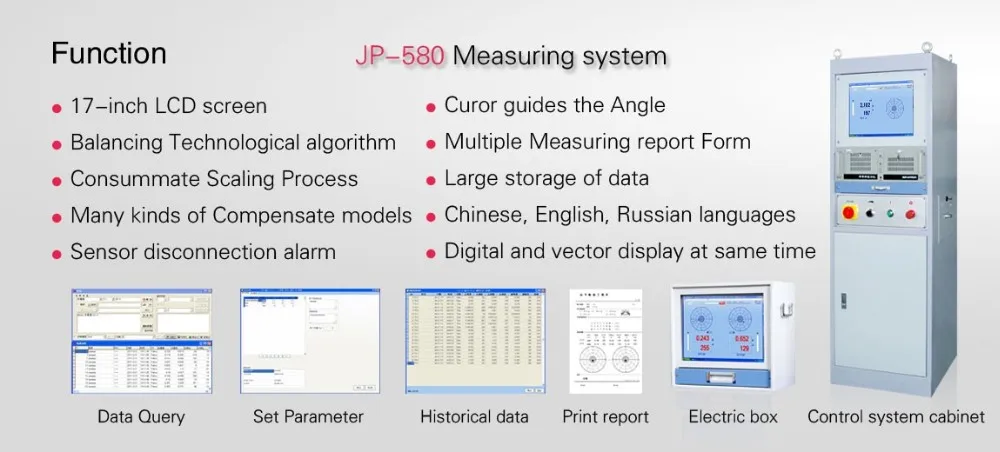

JP-580 computer measuring unit

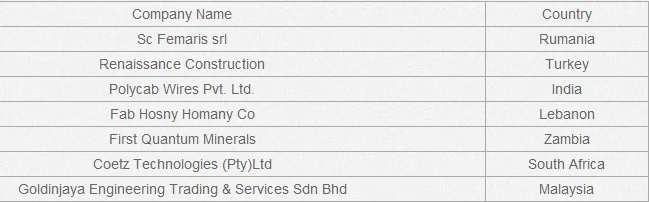

Cooperators list
