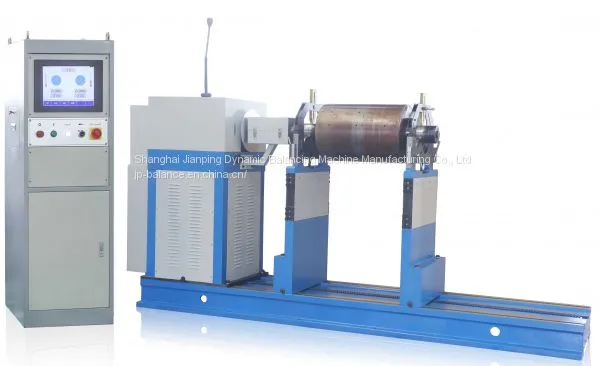

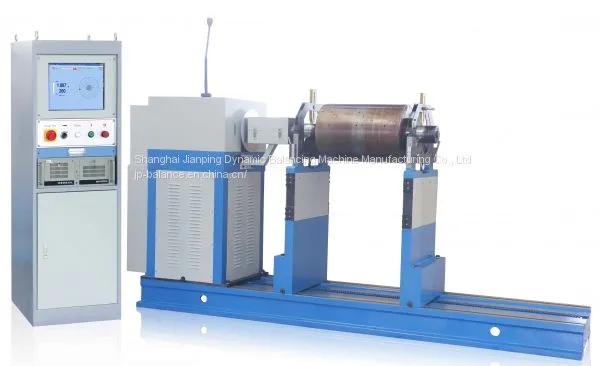

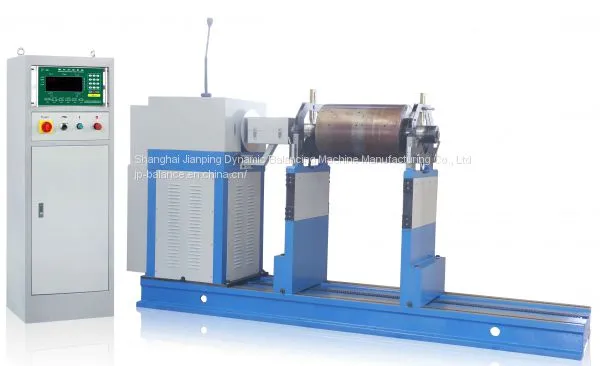

High Quality Precise Universal-joint Balance Machine CE PHW-3000H
US$ 10000 - 30000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JP-Balancer
Place of Origin:
China
Model Number:
PHW-3000H
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
25 days
Related Products
-
Rotor Balancing Machine for Cars and Trucks AlternatorUS$ 1000 - 9000MOQ: 1 Set -
Armature Rotor Balancing MachineUS$ 1000 - 10000MOQ: 1 Set
-
Belt Drive Balancing Machine for Motor Rotor ,centrifucal Rotor,roller,crankshafts,turbochargers From China SupplierUS$ 10000 - 200000MOQ: 1 Set
-
JP High Quality Bend Pulley Dynamic Balancing MachineUS$ 1000 - 32000MOQ: 1 Set
-
Juicer Screen Balancing Machine With Fantastic Quality 2018US$ 1000 - 10000MOQ: 1 Set
Brand Name
JP-Balancer
Place of Origin
China
Model Number
PHW-3000H
Power
Electronic
Usage
Balancing Machine
High quality precise Universal-joint Balance Machine CE PHW-3000H
Product Description
Product Detail
1) Stepless speed regulation
2) Frequency conversion
| Product name | Universal joint balancing machine |
| Usage | Rotor up to 5000 kg |
| Dimensions | 3300*800*1800 |
| Gross weight | 1600 kg |
| Drive power | 7.5 kw |
| Power supply | 3-phase Voltage 380v, Frequency 50HZ |
| Delivery time | 3-25 days |
| number of package | 2 pcs |
| Certificated | CE, ISO 9001 |
| Warranty | 12 months |
| Product Keywords | Turbine Balancing Machine,Turbine Balancer,Roof Turbine Ventilators Balancing Machine |
20000/30000kg Universal Joint Drive Balancing Machine
Production Description
• Special designed brackets can effectively transmit mechanical force
• The durable and reliable sensor possesses high sensitivity
• The permanent calibration brings high accuracy
• Driven by universal coupling,transmit the power steadily
• Applicable to rotors which can't be driven by belt or need large power
• Advanced electrical measuring system and friendly man-machine interface
• The durable and reliable sensor possesses high sensitivity
• The permanent calibration brings high accuracy
• Driven by universal coupling,transmit the power steadily
• Applicable to rotors which can't be driven by belt or need large power
• Advanced electrical measuring system and friendly man-machine interface
Range of Application

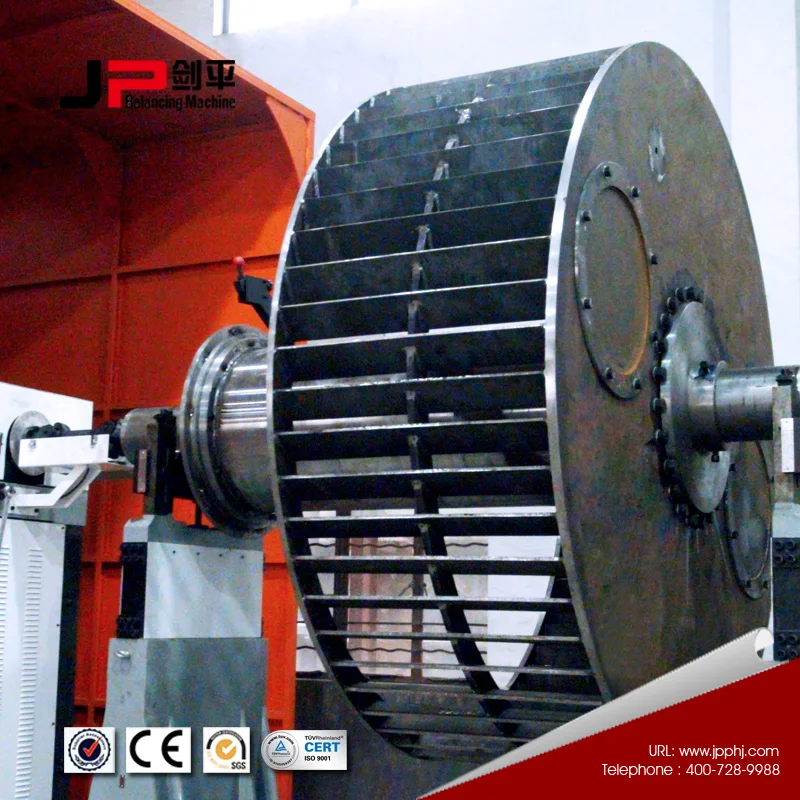

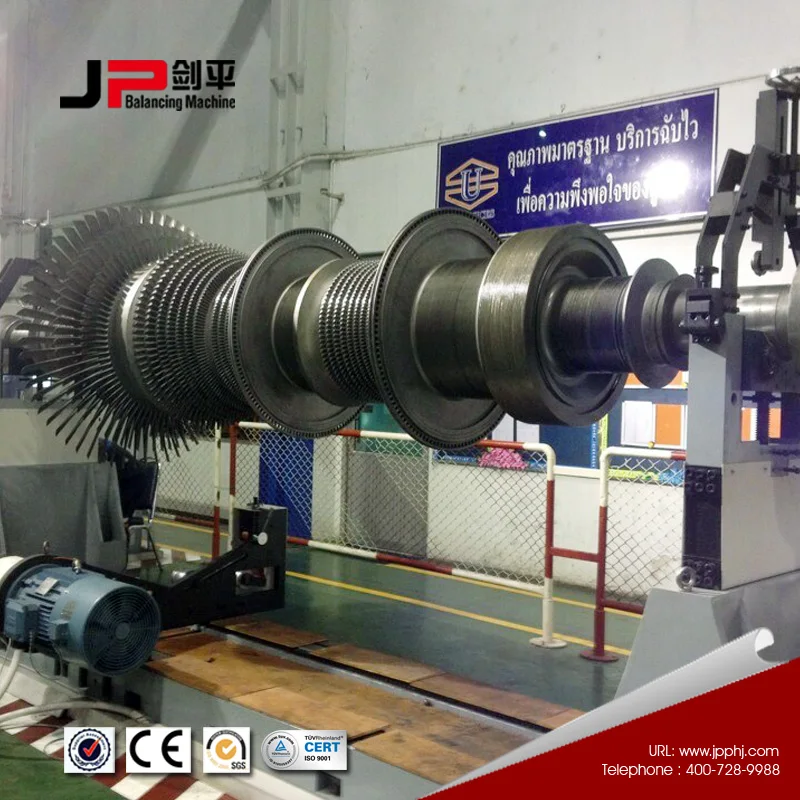

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc
Production Parameters
Technical data at a glance |
PHW-20000 |
PHW-30000 |
Mass Scope of Workpiece (kg) |
20000 |
30000 |
Max Diameter of Workpiece (mm) |
2800 |
3000 |
Distance Between Two Support Bearings (mm) |
Min:450 |
Min:500 |
Journal Diameter Scope of Workpiece (mm) |
60~400 |
80~500 |
|
Max Distance between Driving Flange and Right Bearing Support (mm) |
5300 |
6000 |
Rotation Speed of the Main Axis (r/min) |
195,336,561,916,13741) |
127,218,365,596,895,11041) |
Motor Power (kw) |
552) |
752) |
Torque of Universal Joint Shaft (N·m) |
5000 |
7800 |
Min Achievable Residual Unbalance Amount (emar) |
2g· mm/kg |
2g· mm/kg |
2) Frequency conversion
