Production Description
• Manual loading and unloading

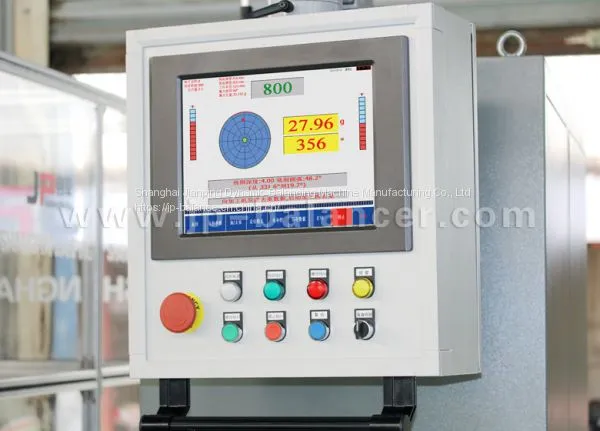

•15-inch touch screen
• Advanced balancing measuring software
• Automatic measure,automatic milling and correction,automatic retest
• Rigidity structure design,with a longer use life
Range of Application

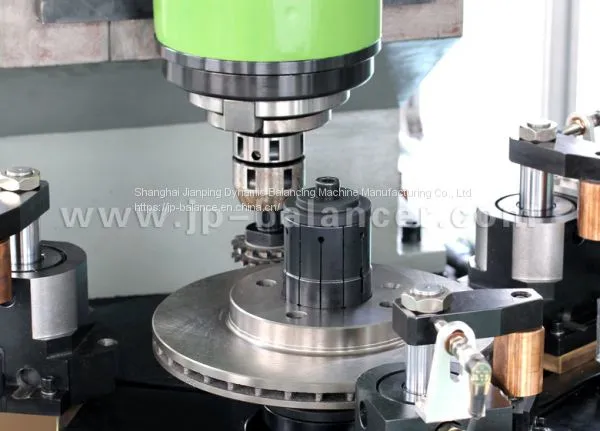

Automatc Vertical Balancing Correction Machine A1LX20 is designed specially for the automatic balancing of disc-shaped parts in one plane,

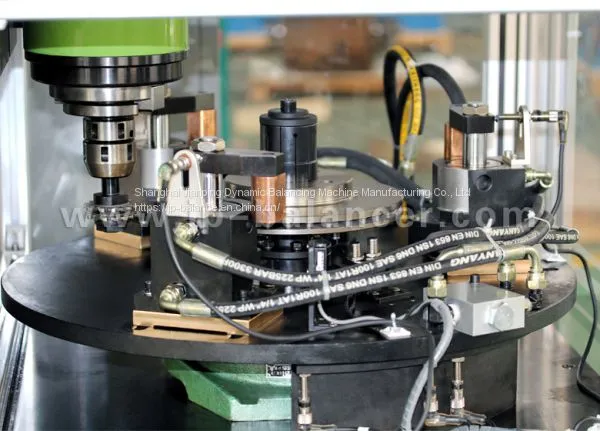

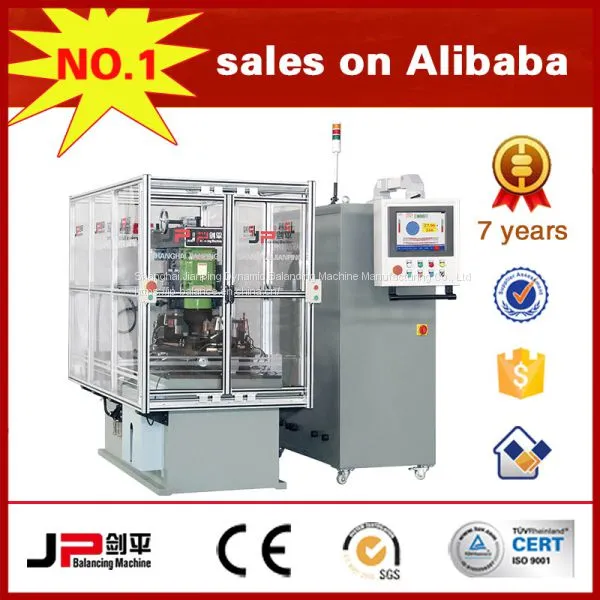

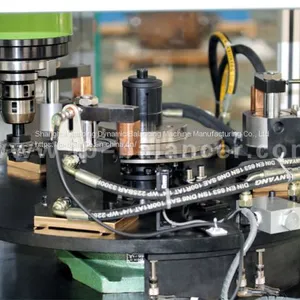

Automatc Vertical Balancing Correction Machine A1LX20 with one station is one of the advanced vertical balancing machine of shanghai jianping,the whole balancing task is competely automatically including measuring,indexing,milling correction and checking,A1LX20 is a good choice to mass produce with short cycle time,high efficiency and high accuracy.
| Data Rotors | |
| Max Mass of Workpiece(kg) | 35 |
| Max Diameter of Workpiece (mm) | 450 |
| Balancing Unit Parameter | |
| Spindle Speed (r/min) | 800 |
Motor Power(kw) |
1.5 |
| Min Achievable Residual Unbalance Amount (emar) | 5g· mm/kg |
| Unbalance Correction | |
Maximum Milling Depth(mm) |
Depending on rotor |
| Maximum Milling Width(mm) | Depending on rotor |
| Cutting Speed(r/min) | 900 |
| Cutting Spindle Motor Power(kw) | 2.2 |
| Maximum Milling Angle(degree) | 0-90 |
| Milling Cutter Range(mm) | 60-125 |
| Machine Parameter | |
| Power(kw) | 6 |
| Weight(ton) | 1.5 |
| Dimensions(mm) | 900*1600*1800 |
