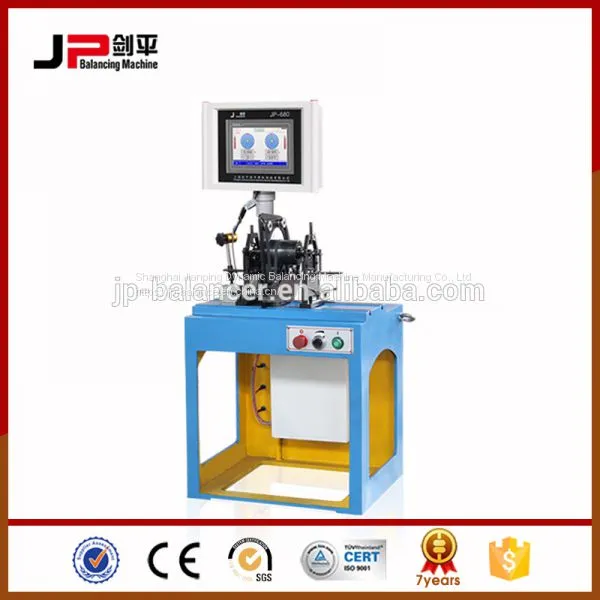

Help CenterArmature Rotor Balancing Machine
Related Products
-
Belt Drive Balancing Machine for Motor Rotor ,centrifucal Rotor,roller,crankshafts,turbochargers From China SupplierUS$ 10000 - 200000MOQ: 1 Set -
JP High Quality Bend Pulley Dynamic Balancing MachineUS$ 1000 - 32000MOQ: 1 Set
-
Juicer Screen Balancing Machine With Fantastic Quality 2018US$ 1000 - 10000MOQ: 1 Set
-
High Quality Precise Universal-joint Balance Machine CE PHW-3000HUS$ 10000 - 30000MOQ: 1 Set
-
Rotor Balancing Machine for Cars and Trucks AlternatorUS$ 1000 - 9000MOQ: 1 Set

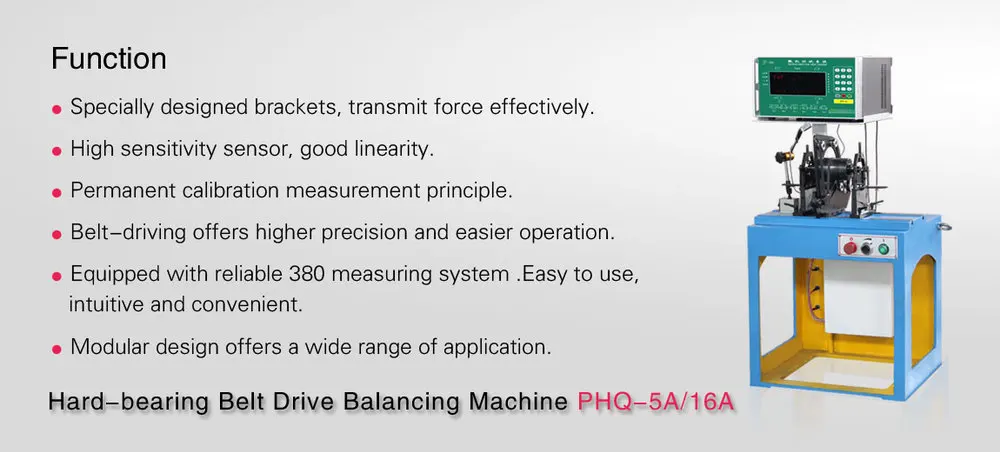

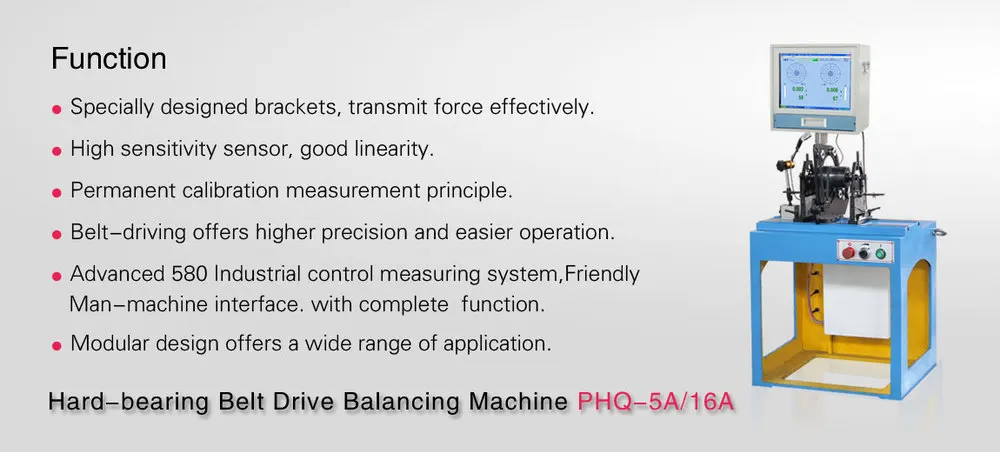

• Specially designed brackets transmit mechanical force with low vibration damping and high rigidity
• Durable and reliable sensor possesses good linearity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount

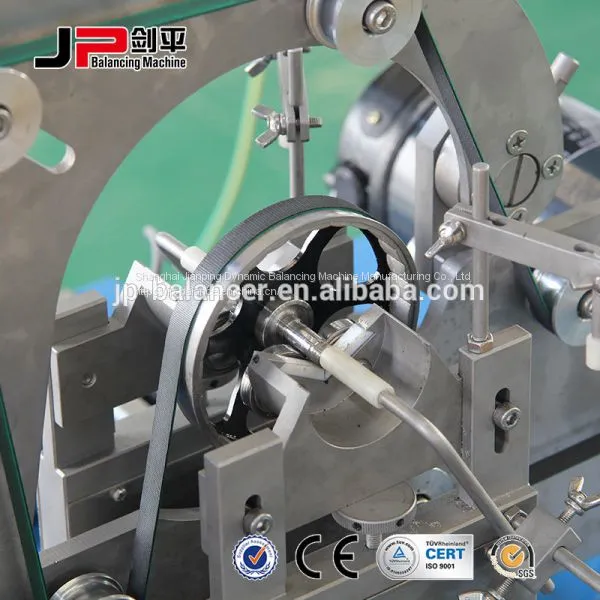

• Belt-driving offers higher precision and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of application
Range of Application

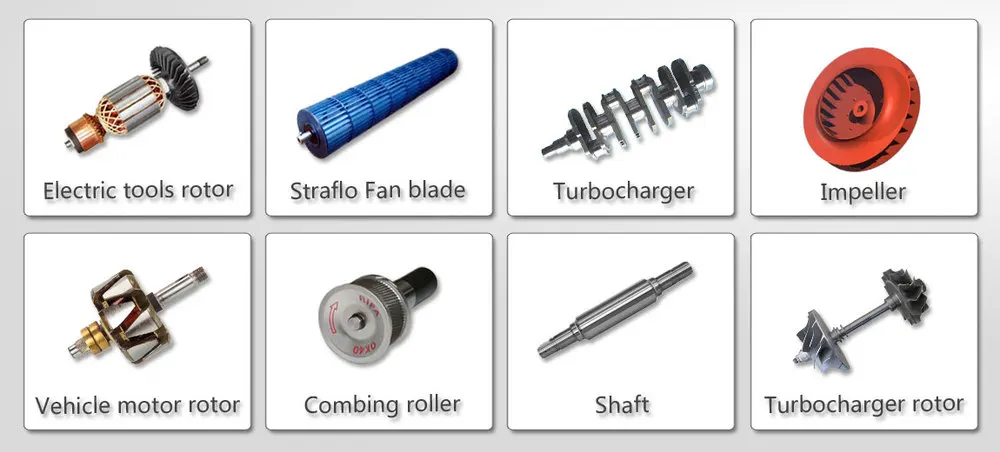

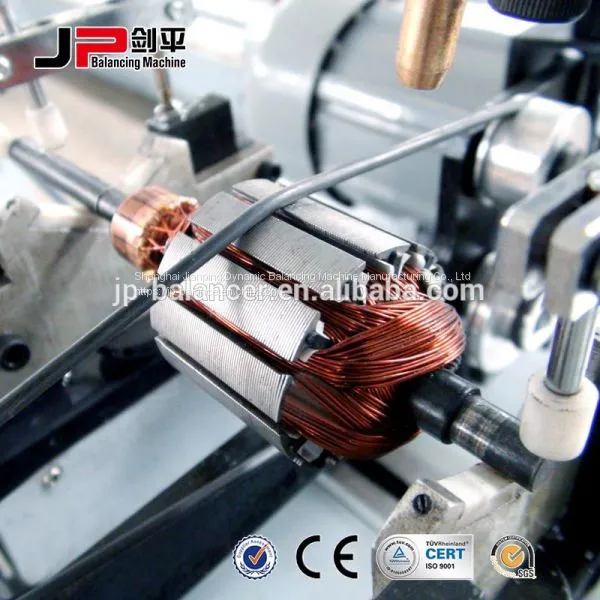

This balancing machine is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by Nylon belt , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency .

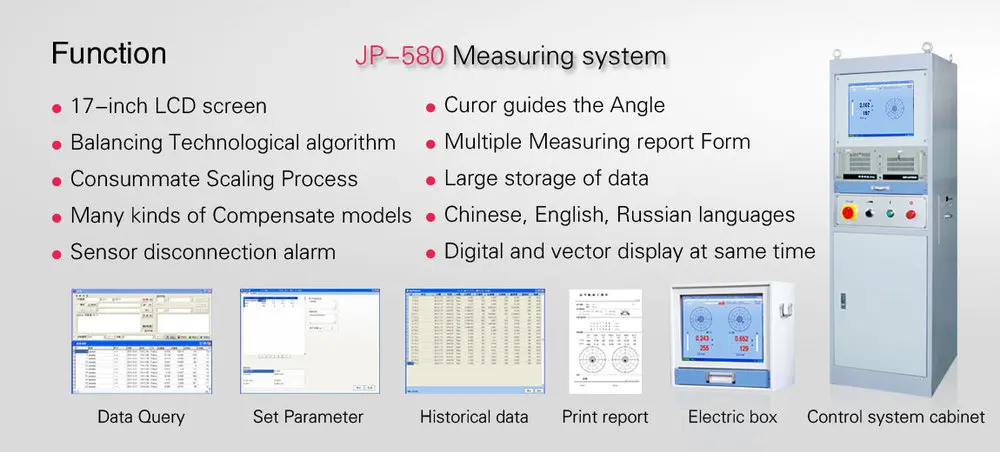

Electrical Measuring System (Option)
Production Parameters
Technical data at a glance |
PHQ-1.6A/5A/16A |
Max Mass of Workpiece (kg) |
1.6/5/16 |
Max Diameter of Workpiece (mm) |
300 |
Distance between Two Support Bearings (mm) |
60-500 |
| Journal Diameter Scope of Workpiece (mm) | 5~40 |
Diameter Scope of Driving Belt (mm) |
15~150 |
| Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) | ~1470 |
Motor Power (kw) |
0.23DC |
Min Achievable Residual Unbalance Amount (emar) |
≤ 0.3g· mm/kg |
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently | |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
easuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
