Production Description
• Balance and correction can be finished at a time,Just need one person for it
• Production takt is faster,Once reduction rate is higher
• Easy to replace product,Only need to replace products fixture and adjust sensor position
• Man-Machine interface,It has memory function for production capacity and real-time production information
• Rigidity structure design,with a longer use life
Range of Application

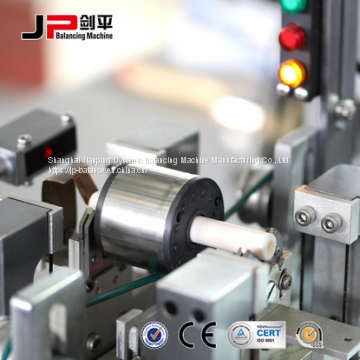

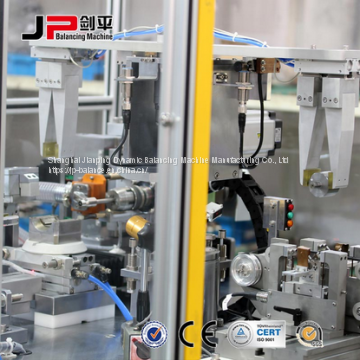

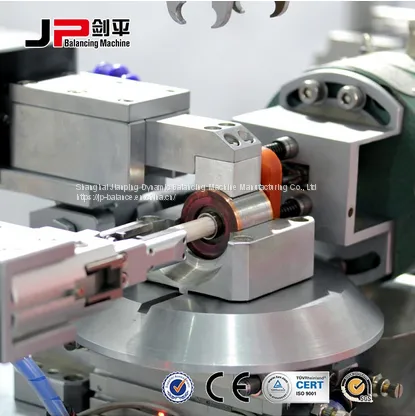

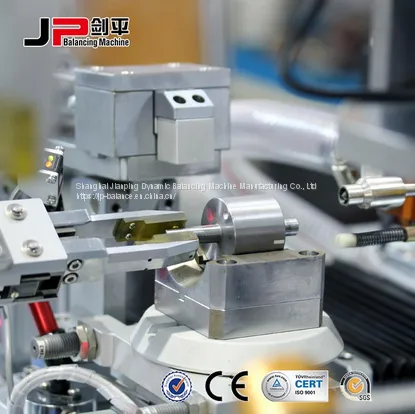

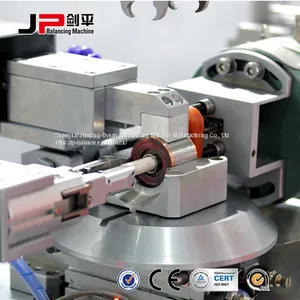

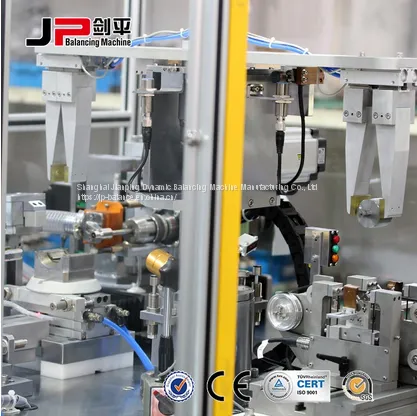

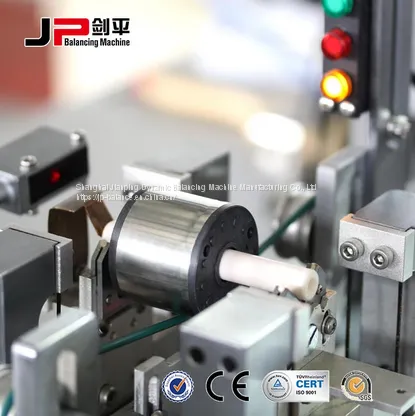

Two-Station Automatic Balancing Correction Machine is designed specially for rotors’balance measurement and correction.which use end face to remove weight,It can connect rotor production line to achieve automatic production
Technical data at a glance |
A2WZ1 |
Main Components |
Cylinder:SMC. |
Rotor Diameter Range |
The rotor weight less than 0.5KG. |
Balancing Speed |
1000-3000rpm |
Milling Method |
Double cutter drilling |
Power |
AC380V |
Pneumatic |
0.4-0.6Mpa |
Residual unbalance eccentricity |
G=6.3 |
Dimension |
1130*1200*1700mm |
