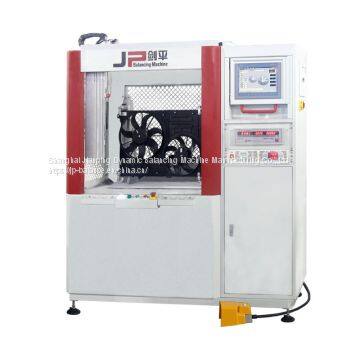

Help CenterAutomotive Cooling Fan Assembly Balancing Machine
Related Products
-
Automotive Balancing Machine for Automotive Cooling FanUS$ 1000 - 100000MOQ: 1 Set -
Air Conditioning Cross Flow Fan Balancing Machine 2018 in Hot SalesUS$ 1000 - 10000MOQ: 1 Set
-
5kg Hard Bearing Self Drive Balancing MachineUS$ 1000 - 10000MOQ: 1 Set
-
5kg Heater Unit Dynamic Balancing Machine From China in 2018US$ 1000 - 15000MOQ: 1 Set
-
2018 Field Balancing MachineUS$ 1000 - 10000MOQ: 1 Set
| Place of Origin | Shanghai, China (Mainland) |
| Brand Name: | JP Balancing Machine |
| Model Number: | PRZD-20H |
| Power: | Electronic |
| Usage: | Balancing Machine |
| Product Name: | Cooling Fans Automative Balancing Machine |
| Application: | Fans Balancing Machine |
| Fans size: | 650*500 mm diameter |
| Power Supply: | Single phase, 220v, 50 hz |
| Max Achievable Unbalancing Amount | 5 g.mm/kg |
| Safety cover | Automatic Door |
| Operation | 15'' Touch Screen |
| Working pressure | 0.45-0.6 |
| Certificates | CE ISO SGS BV |
| Warranty | 12 months |
1. Automatic cover for safety protection
2. 12-inch Weinview Man-Machine interface
3. Advanced measuring software
4. Pneumatic tooling fixture with quick clamping
5. High precision unbalance measuring system for soft bearing
6. Wide Measuring range serves unbalance test to either single fan or double fans
7. Test of the electrical performance, vibration or yaw is possible for the rotor(Extra installation needed)

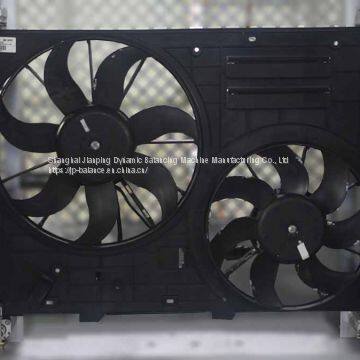

Mainly used for the overall balancing of the engine cooling fan and the radiator cooling fan assembly.
Equipped with 15-inch touch screen and JP-800 measuring system,
it is able to perform current test and voltage test to the workpiece besides regular measuring.
Pneumatic fixtures provide quick fastening, higher efficiency, easier operation and greater convenience.
| Max. mass of workpiece | kg | Clamp included | |||
| Balancing speed | r/min | Adjustable | |||
| Min achievable residual unbalance amount | g.mm/kg | ≤5 | |||
| Unbalance reduction rate | URR(%) | ≥90% | |||
| Working pressure | Mpa | 0.45-0.6 | |||
| Operating voltage | V | AC:220V | |||
| Max. measurable fan size | mm | 650×500 | |||
| Balancing machine fixture | Pneumatic cylinder | ||||
| System | JP-800 | ||||
| Measuring support | Soft bearing measuring mechanism | ||||
| Man-machine exchange | 15-inch Weinview touch screen | ||||
| Safety cover | Automatic cover | ||||
| Extended function | Vibration and Yaw | ||||
