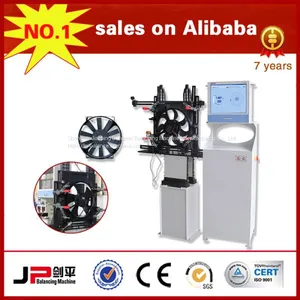

Help CenterAutomotive Balancing Machine for Automotive Cooling Fan
Related Products
-
Automotive Cooling Fan Assembly Balancing MachineUS$ 1000 - 15000MOQ: 1 Set -
Air Conditioning Cross Flow Fan Balancing Machine 2018 in Hot SalesUS$ 1000 - 10000MOQ: 1 Set
-
5kg Hard Bearing Self Drive Balancing MachineUS$ 1000 - 10000MOQ: 1 Set
-
5kg Heater Unit Dynamic Balancing Machine From China in 2018US$ 1000 - 15000MOQ: 1 Set
-
2018 Field Balancing MachineUS$ 1000 - 10000MOQ: 1 Set

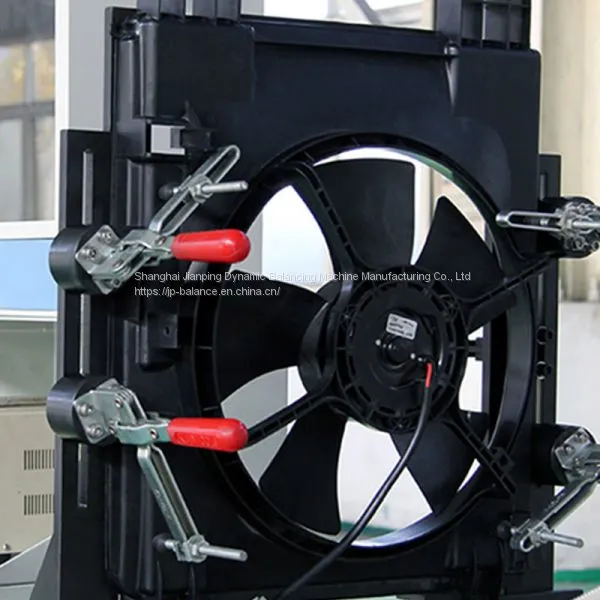

1.Mainly used in the whole balancing of automotive air conditioning cooling fan assembly,Full consideration of the balancing accuracy for overall component .
2.Eliminate the unbalance amount caused by bearing and other parts assembly inaccuracy,Improve the product quality
3.Soft bearing bracket system,high precision,custom special fixture,fasten with quick chuck.Apply to Whole Balancing Perfectly.
Design
Well-designed mechanical module helps to do quick and precise balancing.Give more choices,Equip your optimal balancing device with less expense.
Special Features
It adopted soft bearing supporting frames system,with advantage of high precision,efficiency, customized special clamps can use quick chuck fastening, perfectly applied to the global balancing,
Electrical Measuring System (Option)
Production Parameters
| Technical data at a glance | PRZD-5 |
| Max Mass of Workpiece(kg) | 5 |
| Maximum Workpiece Frame Size(mm) | 440*500 |
| Balancing Speed(r/min) | 3200(Customize) |
| Height of working(mm) | 1125 |
Min Achievable Residual Unbalance Amount (emar) |
5g· mm/kg |
Unbalance Reduction Rate(%) |
≥90 |
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently | |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
easuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
