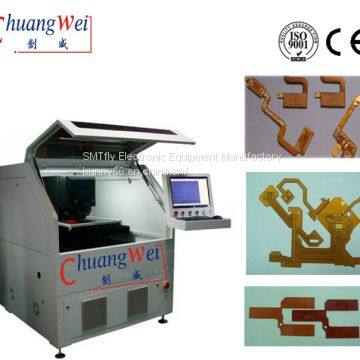

Cut PCB with Laser Pcb Depanel Machine,PCB & FPC Depaneling Equipment,CWVC-5S
Cut PCB with Laser Pcb Depanel Machine,PCB & FPC Depaneling Equipment,CWVC-5S Features:
· Pre-camera vision product position registration and model check
· Coherent Avia NX UV laser with HurrySCAN head
· High capacity BOFA dust collector
· User friendly Window based software
· PCB flexible product jig adjustable for different board size
· High resolution and accurate Z stage with auto-focus function
· Large area low friction front loading platform for sliding multiple product jigs
· Fully covered class 1 safety enclosure
· Able to do cutting and marking together
· Compact size
. Neat and smooth edge, no burr or overflow
. More quick and easy, shorten the delivery time;
. High quality ,no distortion,surface clean& uniformity;
. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed
Detailed Product Description
Product Name: | Laser Pcb Separator | Super: | Low Power Consumption. |
Laser: | 12/15/17W | Laser Brand: | Optowave |
Power: | 220V 380v | Warranty: | 1 Year |
Cut PCB with Laser Pcb Depanel Machine,PCB & FPC Depaneling Equipment,CWVC-5S Specification:
Laser | Q-Switched diode-pumped all solid-state UV laser |
Laser Wavelength | 355nm |
Laser Power | 10W/12W/15W/17W@30KHz |
Positioning Precision of Worktable of Linear Motor | ±2μm |
Repetition Precision of Worktable of Linear Motor | ±1μm |
Effective Working Field | 460mmX460mm(Customizable) |
Laser Scanning Speed | 2500mm/s (max) |
Galvanometer Working Field Per One Process | 40mmх40mm |
Challenges of Depaneling using Routing/Die Cutting/Dicing Saws
· Damages and fractures to substrates and circuits due to mechanical stress
· Damages to PCB due to accumulated debris
· Constant need for new bits, custom dies, and blades
· Lack of versatility – each new application requires ordering of custom tools, blades, and dies
· Not good for high precision, multi-dimensional or complicated cuts
· Not useful PCB depaneling/singulation smaller boards
Lasers, on the other hand, are gaining control of the PCB depaneling/singulation market due to higher precision, lower stress on the parts, and higher throughput. Laser depaneling can be applied to a variety of applications with a simple change in settings. There is no bit or blade sharpening, lead time reordering dies and parts, or cracked/broken edges due to torque on the substrate. Application of lasers in PCB depaneling is dynamic and a non-contact process.
Advantages of Laser PCB depaneling/singulation
· No mechanical stress on substrates or circuits
· No tooling cost or consumables.
· Versatility – ability to change applications by simply changing settings
· Fiducial Recognition – more precise and clean cut
· Optical Recognition before PCB depaneling/singulation process begins.
· Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
· Extraordinary cut quality holding tolerances as small as<50 microns.
· No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards
Working principle :
humidity sensor ( humidity and temperature signal ) → Microcomputer ( CPU Central Processing Unit ) → Heaters ( PTC heating module polymer material heating ) → Smart shape memory alloy ( alloy shape with temperature change ) → Balance spring ( general balance spring with alloy )
Cutting Application:
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
