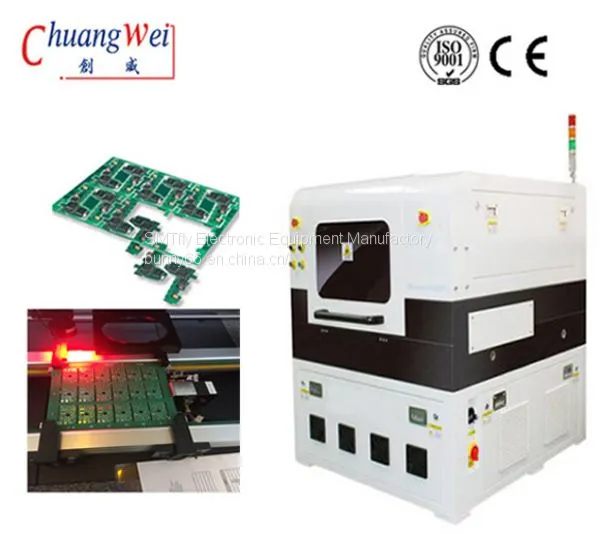

FPC Laser Depaneling for Fpc Cutting,CWVC-5L Features:
1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time;
4. High quality ,no distortion,surface clean& uniformity;
5. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed
Laser PCB Cutting with UV Laser Specification:
Laser class |
1 |
Max. working area (X x Y x Z) |
300 mm x 300 mm x 11 mm |
Max. recognition area (X x Y) |
300 mm x 300 mm |
Max. material size (X x Y) |
350 mm x 350 mm |
Data input formats |
Gerber, X-Gerber, DXF, HPGL, |
Max. structuring speed |
Depends on application |
Positioning accuracy |
± 25 μm (1 Mil) |
Diameter of focused laser beam |
20 μm (0.8 Mil) |
Laser wavelength |
355 nm |
System dimensions (W x H x D) |
1000mm*940mm |
Weight |
~ 450 kg (990 lbs) |
|
Power supply |
230 VAC, 50-60 Hz, 3 kVA |
Cooling |
Air-cooled (internal water-air cooling) |
Ambient temperature |
22 °C ± 2 °C @ ± 25 μm / 22 °C ± 6 °C @ ± 50 μm |
Humidity |
|
Required accessoires |
Exhaust unit |
Laser Flex PCB Depanelization with UV Laser Fpc Separator of Advantages:
1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
3.Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance
A Video of Flexiable Circuit Board with UV Laser Cutting FPC Sample:
