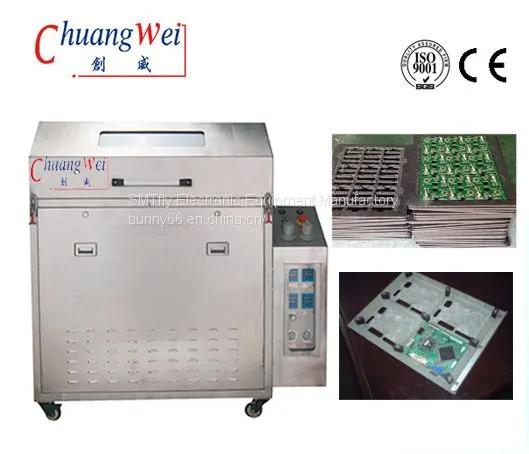

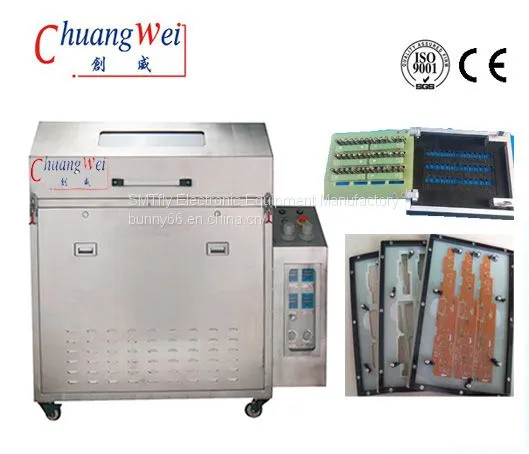

High Effiency Stencil Ultrasonic Cleaning Machine,CW-5100
- 20 Set / Sets per Month
- Shenzhen,Guangzhou,Hongkong
- T/T L/C
- 15 days
Product Details
Brand Name: | Chuangwei | Place of Origin: | China | Model Number: | CW-5100 |
Product Description
Machine and Artificial / Ultrasonic Cleaning PCB Fixture Comparison:
Condenser cleaning | Manual or ultrasonic cleaning | Comparing results |
Automatic cleaning,100% safe | Charged cleaning or artificial iron brush cleaning+solution,poor safety | ≥ |
Batch cleaning,fast and efficient | Cleaning time is long,low efficiency | ≥ |
One-touch operation,no need to special cleaning staff | Iron brush fixture,dirty,tired,need special cleaning personal | ≥ |
Up and down,around the full range of cleaning,cleaningthoroughly,high cleanliness | Condenser on the dead ends,the surface dirty cleaning difficult | ≥ |
Solution cycle repeated repeated use | High Cleaning costs | ≥ |
Spay cleaning and rinsing,governance well intact | Iron brush cleaning will be raised,the surface off the phenomenon,the impact of follow-up product quality | ≥ |
Cleaning +rinse+dry,after cleaning the surface without solvent | No rinse,after cleaning solvent residue,after the use of heat when the smell out after the smell out | ≥ |
CW-5100 Washing machine reflow condenser before and after comparison:
Specifications of CW-5100 Cleaning system,Stencil Cleaner,PCBA Cleaning System:
• Cleaning basket size :Φ1000mm× 200mm(H) , Maximum cleaning height :450mm, Special size should be customized
• Cleaning fluid capacity :80L( maximum )
• Rinse fluid capacity :80L( maximum )
• Cleaning method : Spray Rotary Cleaning
• Dry way : Compressed air dry
• Recommended cleaning time :3-15mins
• Recommended cleaning and drying time :2-3mins
• Recommended rinse time :1-2mins
• Recommended drying time :3-6mins
• Cleaning filter : Using 3-level filtration
• Class 1 filter :2mm( Filter debris )
• Level 2 filter :100um( Primary filter flux, iron and other lumps )
• Level 3 filter :20um( Filter flux, rosin and so on )
• Air supply :0.5~ 0.7Mpa
• Air consumption :800-1000L/min
• Outlet size :Φ130mm(W)×60mm(H)
• dimension :1550mm(L) ×1780mm(W) ×1730mm(H)
CW-5100 Advantages of Cleaner / Washer Machine of the Rule:
1. One-touch operation,no need to special cleaning staff
2. Batch cleaing,cleaning fast and efficient
3. No electricity ,all pneumatic cleaning,100% safe
4. Up and down, around the full range of cleaning,cleaning thoroughly,high cleanliness
5. Suitable for a variety of cleaing fluid
6. Automatic cleaning,saving labor
7. The solution is repeated several times
8. Spray cleaning,governance with a condenser intact
FAQ:
1. What is your main advantage?
We have been manufacturing these products for more than 14 years. Experience is our advantage.
2. Can you customized product according to different application?
Yes, just send us your application. We will work out solution for you.
3. What is the main advantage of your wave solder machine?
From small solder pot capacity to high volume wave, we offer a full line wave solder for your choice.
4. What is your normal lead time?
For standard machine, our lead time is 3 weeks. Customized product may be a little longer.
5. What is your normal package?
We use plywood crate.
6. What is your payment terms?
For standard machine, we offer 50% with order, 50% before shipment
For customized machine, we offer 70% with order, 30% before shipment.
7. Are you looking for global distributors?
Yes, we are looking for global distributors of our proven quality products. Hope you can share with our success.
If you need the machine,please contact us:
WhatsApp/Wechat: +86 136 8490 4990
