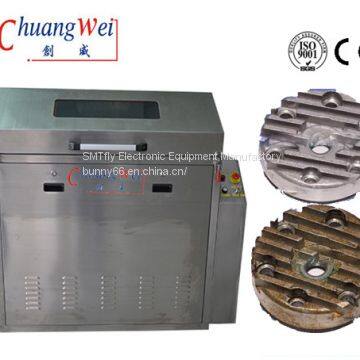

Electric Fixture Cleaning Machine,Washing Machine for Fixture,CW-5200 Specifications:
• Cleaning basket size ：1000mm Diameter round basket × 200mm(H) , Special size need to be customized
• Cleaning fluid capacity ：80L（ maximum ）
• Rinse fluid capacity ：80L（ maximum ）
• Cleaning method ： Spray rotary cleaning and rinsing
• Dry way ： Heated air knife dry
• Recommended cleaning time ：5-20 mines
• Recommended rinse time ：2-3 mines
• Recommended drying time ：5-20 mines
• Cleaning filter ： Using 3-level filtration
• Class 1 filter ：2mm（ Filter impurities ）
• Class 2,3 filters ：100um/20um（ Filter flux, rosin and so on ）
• Blower ：3.7KW Heated to 80°
• Electric pump ：2.2KW/1.1KW
• Diaphragm pump ： 1 inch diaphragm pump (pumping, drainage)
• Air supply ：0.5Mpa~ 0.7Mpa,600-800L/min
• power supply ：AC380V,3Phase,22KW
• weight ：about 500KG
• dimension ：1380(L) ×2100mm(W) ×1400mm(H)
CW-5200 Machine and Artificial / Ultrasonic Cleaning Fixture Comparison
Spray cleaning |
Manual or ultrasonic cleaning |
Comparing results |
|
Spray pressure can be adjusted, batch cleaning, fast and efficient |
Cleaning time is long, low efficiency |
≥ |
One-touch operation, no need to special cleaning personnel |
Iron brush fixture, dirty, tired, need special cleaning personnel |
≥ |
Up and down, around the full range of cleaning, cleaning thoroughly, high cleanliness |
Fixture on the dead, the surface dirty, cleaning difficult |
≥ |
The solution is recycled several times to save the solvent |
Need to immersion cleaning, cleaning costs are high, |
≥ |
Spray cleaning and rinsing, governance well intact |
Iron brush cleaning will be raised, the surface off the phenomenon, the impact of follow-up product quality |
≥ |
Cleaning + rinse + dry, after cleaning the surface without solvent |
No rinse, after cleaning solvent residue, after the use of heat after the smell of smell out |
≥ |
CW-5200,Washing-Cleaning Fixture Machine with No Rinse Advantages:
1. Touch screen display, one-button operation, one person cleaning, saving labor
2. Water-based cleaning fluid, environmental protection
3. The cleaning solution is recycled to save the solution
4. Batch cleaning ,cleaning fast and efficient
5. Equipped with a wind knife, can be completely dry
6. Up and down, around the full range of cleaning, cleaning thoroughly, high cleanliness
7. Spray cleaning, governance with intact
FAQ:
1. What is your main advantage?
We have been manufacturing these products for more than 14 years. Experience is our advantage.
2. Can you customized product according to different application?
Yes, just send us your application. We will work out solution for you.
3. What is the main advantage of your wave solder machine?
From small solder pot capacity to high volume wave, we offer a full line wave solder for your choice.
4. What is your normal lead time?
For standard machine, our lead time is 3 weeks. Customized product may be a little longer.
5. What is your normal package?
We use plywood crate.
6. What is your payment terms?
For standard machine, we offer 50% with order, 50% before shipment
For customized machine, we offer 70% with order, 30% before shipment.
7. Are you looking for global distributors?
Yes, we are looking for global distributors of our proven quality products. Hope you can share with our success.
