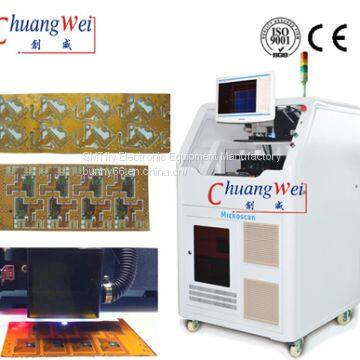

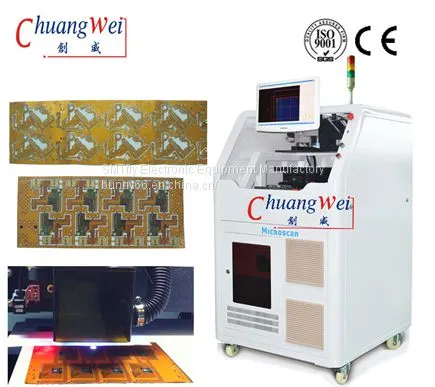

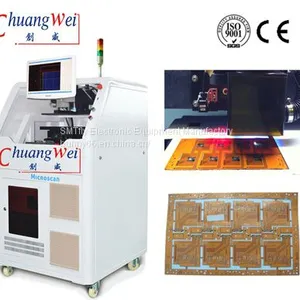

PCB (printed circuit board) Depaneling using UV Laser,CWVC-6 Specification:
Laser |
Q-Switched diode-pumped all solid-state UV laser |
Laser Wavelength |
355nm |
Laser Power |
10W/12W/15W/17W@30KHz |
Positioning Precision of Worktable of Linear Motor |
±2μm |
Repetition Precision of Worktable of Linear Motor |
±1μm |
Effective Working Field |
460mmX460mm(Customizable) |
Laser Scanning Speed |
2500mm/s (max) |
Galvanometer Working Field Per One Process |
40mmх40mm |
Laser class |
1 |
Max. working area (X x Y x Z) |
300 mm x 300 mm x 11 mm |
Max. recognition area (X x Y) |
300 mm x 300 mm |
Max. material size (X x Y) |
350 mm x 350 mm |
Data input formats |
Gerber, X-Gerber, DXF, HPGL, |
Max. structuring speed |
Depends on application |
Positioning accuracy |
± 25 μm (1 Mil) |
Diameter of focused laser beam |
20 μm (0.8 Mil) |
Laser wavelength |
355 nm |
System dimensions (W x H x D) |
1000mm*940mm |
Weight |
~ 450 kg (990 lbs) |
|
Power supply |
230 VAC, 50-60 Hz, 3 kVA |
Cooling |
Air-cooled (internal water-air cooling) |
Ambient temperature |
22 °C ± 2 °C @ ± 25 μm / 22 °C ± 6 °C @ ± 50 μm |
Humidity |
|
Required accessoires |
Exhaust unit |
PCB Laser Depaneling Machine with UV Laser,CWVC-6 Cutting Application:
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
