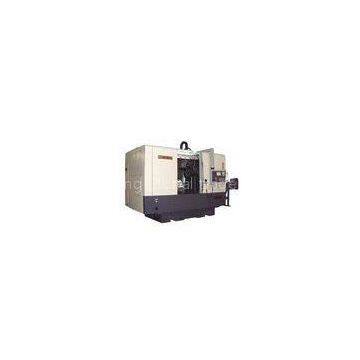

CNC Lathe Machine for Hub Cutting , i. e. Precision OD and ID Turning

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BOCHI		Place of Origin	China
Model Number	CK7660L

Product Description

Delivery Time:within 35days
Certification:ISO9001:2000

Horizontal CNC Lathe Machine for hub cutting , i. e. precision OD and ID turning

CK7660l CNC Lathe with complete functions is designed especially for hub cutting, i. e. precision OD and ID turning of 12\"～18\"hubs in car industry.

CK7660L CNC Lathe
Features:
This lathe, with complete functions is designed especially for hub cutting, i. e. precision OD and ID turning of 12\"～18\"hubs in car industry. The whole lathe is in column structure and uses high grade cast iron as major pieces. Since finite element force analysis is applied on main parts the lathe is rigid and remains table during speed cutting. Two guide ways are quality reinforced linear ways. A balance cylinder is fitted to X-axis column to distribute the weight of carriage, hence improves the machining accuracy and speed feeding capacity, and reduces the set-up time. Large-flow and chip-flushing cooling system can carry built up heat away immediately all the time and covey chips fluently. Environment protection is considered into design. The lathe is specially suitable for speed and precision turning of hubs in car and motorcycle in

Quick Details

Condition:	New	Place of Origin:	Shanxi,China (Mainland)	Brand Name:	BOCHI
Model Number:	CK7660L	Type:	Horizontal	CNC or Not:	CNC
Voltage:	380V	Power(KW):	30-37kw	Dimension(LWH):
Weight:	7000kg	Certification:	ISO9001:2000	Warranty:	one year

Main parameter and specifications:

Item	Unit	CK7660L
Capacity	Max swing over bed	mm	Φ750
Max swing over slide	mm	Φ600
Max chuck type workpiece turning length	mm	350
Max turning dia.	mm	Φ630
Guide way	Bed way span/section	mm	420/45
Carriage way span/section	mm	284/35
Spindle	Spindle nose	GB5900.1	A2-8
Spindle thru-hole	mm	Φ105
Spindle bearing dia.(front/rear)	mm	Φ140/Φ130
Spindle speed	r/min	22-2200
Main motor (cont./30min)	kw	30(37)(FANUC servo) 22(30)(Greenland servo)
Max spindle torque output	Nm	550
Hydraulic jig/cylinder		F52/MS200C(AUTO STRONG )
Carriage	X/Z-axis travel		410/720
X/Z-axis rapid traverse	mm /min	20/24
X/Z-axis servo motor	kw	2.1/3.8
X/Z-axis ball screw dia.	mm	Φ40/Φ50
X/Z-axis screw bearing dia.	mm	Φ30/Φ40(NSK)
Turret	Number of station		12(8)-station
Tool section (turning/boring)	mm	□25X25/Φ40
Others	Power source	kVA	60
Dimension (L×W×H)	mm	3205X2075X2425
Total weight	kg	7000

Advantage:

1. Professional make it for years and have a rich experience.

2. Good relationship team for study and development.

3. Good reputation from the customer in the world.
