Y3180K gear hobbing machine with good rigidity, high working accuracy and suitable for large or single production.

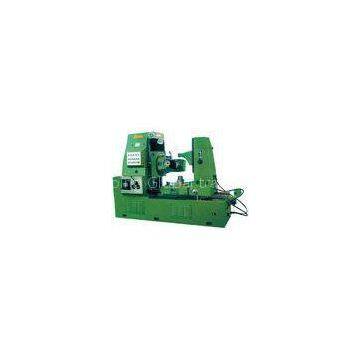

Y3180K gear hobbing machine
Features:
1.
The machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprockets. The machine is characterized by good rigidity ,high working accuracy ,easy in operation and be maintained. The machine can be operated not only with forward and backward cutting. but also with axial or radial feed. According to the special needs of users, can be raised or extended tool to expand the scope of the processing machine accuracy. As customers’ requirement, cab be heightened or lengthened for the machine.1.
Quick Details:
| Condition: |
New
|
Place of Origin: |
Liaoning,China (Mainland)
|
Brand Name: |
GUANHUA
|
| Model Number: |
Y3180K
|
Type: |
Horizontal
|
CNC or Not: |
Not
|
| Voltage: |
380V,
|
Power(KW): |
5.5KW
|
Dimension(L*W*H): |
2600x1400x1940mm
|
| Weight: |
5000kg
|
Certification: |
ISO9001:2000,
|
Warranty: |
one year
|
Model: Y3180K
Main parameter:
1, Range of processing
① Max. workpiece diameter:
With work stay:620mm
Without work stay:800mm
② Max.module
Steel:8mm
Casting iron:10mm
③ Max. width: 300mm
④ Min. Number of Gear on workpiece :6 tooth
2, Tool post
① Max. swivel Angle of tool post : 240°
② Max. travel of tool post(Vertical): 350mm
③ Min. reading of swivel angle of tool post:6′
④ Vertical move speed of tool post:0.52 m / min
⑤ Vertical move amount of tool post(manual):0.754mm
⑥ Step of feeding amount(Vertical):12step
⑦ Range of feed(vertical):0.4~4mm / rpm.
3, Working table
①Work table diameter:625mm
②Work table bore diameter:80mm
③Movement per revolution Horizontal(manual):1mm
④Min. reading movement horizontal:0.01mm
⑤Hydraulic drive movement horizontal:50mm
⑥Movement speed of worktable (Horizontal):0.55m / min
⑦Distance between tailstock end face and worktable surface:400-720mm
4, Hobbing Spndle
① Max. hob diameter/lengthen:180mm/175mm
(2) Tie rod threading diameter:M16
(3) Taper of hob arbor fitting::M.T.5
(4) Max. hob axial movement:55mm
(5) Distance between hob axis and worktable surface:240-590mm
(6) Distance between hob and worktable center:50-500mm
(7) Range of spindle speed:40~250rpm
(8) Step of spindle:9step
5, Motor and machine weight
① Motor: 5.5kw / 1440rpm
② Axial fast motor(Vertical): 0.75kw / 1380rpm
③ Radial fast motor:0.75kw / 1380rpm
④ Motor of hydraulic pump:1.1kw / 1000rpm
⑤ Net weight:5000kg
⑥ Machine size(L xWxH): 2600x1400x1940mm
6, Others
① Diameter of hob arbor:22mm,27mm,32mm,40mm
② Arbor diameter:35mm
Advantage:
1. Professional maker.
2. Popular in the world.
3. Good quality and competitive.
