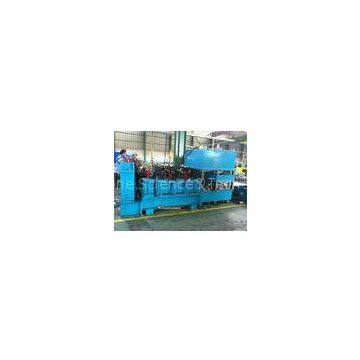

45Kw Roofing Roll Forming Machine Corrugated Silo Panel Cold Roll Former
- T/T L/C D/P D/A
- 7 days
You May Like
-
Hydraulic Flying Shear Roofing Roll Forming Machine PLC Control Tile Press
-
Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line
-
Galvanized Steel Roof Tile Curving Machine 120 Degree Horizontal Type
-
Purlin Roll Forming Machine Auto 14 Rolling Station Hydraulic Forming Machine
-
Automatic Steel Roof Purlin Roll Forming Machine Chain Drive 20 M/min
-
Z Purlin Roll Forming Machine Steel Structure C-Z Interchangeable Machine
Product Details
| Brand Name | HRF | Place of Origin | China | |
| Model Number | HRF1090 |
Product Description
Certification:CE
Silo Roll Forming Machine
Descrition:
1. We adopts 24 forming stations with forged iron stands and 20T hydraulic decoiler and superonice sensor control to sychronize the speed between the roll forming machine and decoiler .The forming machine speed can reach up to 15m/min and stop-to-cut with cutting tolerance within 1.5mm
2 . We adopt gearbox drive to gurantee the machine performance stable and long-term running.
3. Corrugated Silo panels are widely used in the workd market .We have engaged in supplying the corrugated silo roll forming line to South American markets since 2008 .With stable performance and good forming product,we gained good reputations from our customers
Applications:
Corrugated silo panel
corrugated panel
corrugated sheet
Drawing:
|
1 |
Material thickness |
mm |
0.8--3mm cold rolled steel |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
24 |
|
4 |
Main power |
kw |
45 |
|
5 |
punching |
Hydraulic cutting |
|
|
6 |
Hydraulic power |
kw |
15kw |
|
7 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
8 |
Drive |
/ |
Gearbox drive |
|
9 |
Decoiler |
10T/15T/20 hydraulic decoiler(coil car as option) |
Flowchart
Competitive Advantage:
1. We have experienced engineer who engaged in designing the roll forming machines for 10 years
2. We have complete after-sales service system and we guanratee all life of the machines maintaince .
3. We can gurantee in-time delivery and well-done packaging
