1.8mm Step Beam Rack Roll Forming Machine , Hydraulic Forming Machine

Description:

1: We have professional engineering team and can use the Copra Software skifllfully to design the forming diagram according to the profile drawing.

2: We adopt the heavy stands to make the machine robust and strong.

3:We adopt pnematic saw flying cut to shear all profiles

4: The step beams is popular used in the project of supermarket construction in North America and South America e.g Mexico,Argentina,Chile and so on

5: We exported the step beam machine to Mexico and all of the profiles produced can meet the customer’s requirements

6: We also can supply accessories parts machine together with rack machine,crossbar machine,base machine etc

Applications:

Step beams in the supermarket

Beams

C beams

Specifications:

Profile Drawing

Technical Parameter:

1) Suitable raw material: 1.5---2mm cold rolled steel or

galvanized steel(G300Mpa)

2) Number of roller stations: 31 and series of vertical rollers

3) Main machine motor power:2--22KW with speed reducer

8) Control system: PLC,Siemens made in Germany

9) Way of cutting: flying saw cutting

10) Saw cutting motor power:18.5kw

11) Cutting length tolerance:≤±3mm

12 ) Machine structure: forged iron stands structure( see the picture)

13) Omron encoder measures the length ,made in Japan

14) Yaskawa inverter made in Japan

15) Control voltage: 380 V,50Hz,3 Ph or according to local standard

16) Dimension of the machine: about 8000mm×800mm×1200mm

polished

17. Machine weight:20,000kgs

18. Total line demension(LxWXH):27000mmx1000mmx1100mm

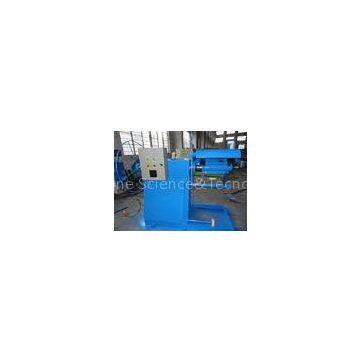

Motorized Decoiler:

► Load capacity:3 Ton

► Coil inner-diametre:450-550mm

► Coil width: max 500mm

► Manual expansion and motorized decoiling

Technological Process:

Decoiling → Coil sheet guiding&feeding,levelling → Roll forming → flying saw cutting → outable
