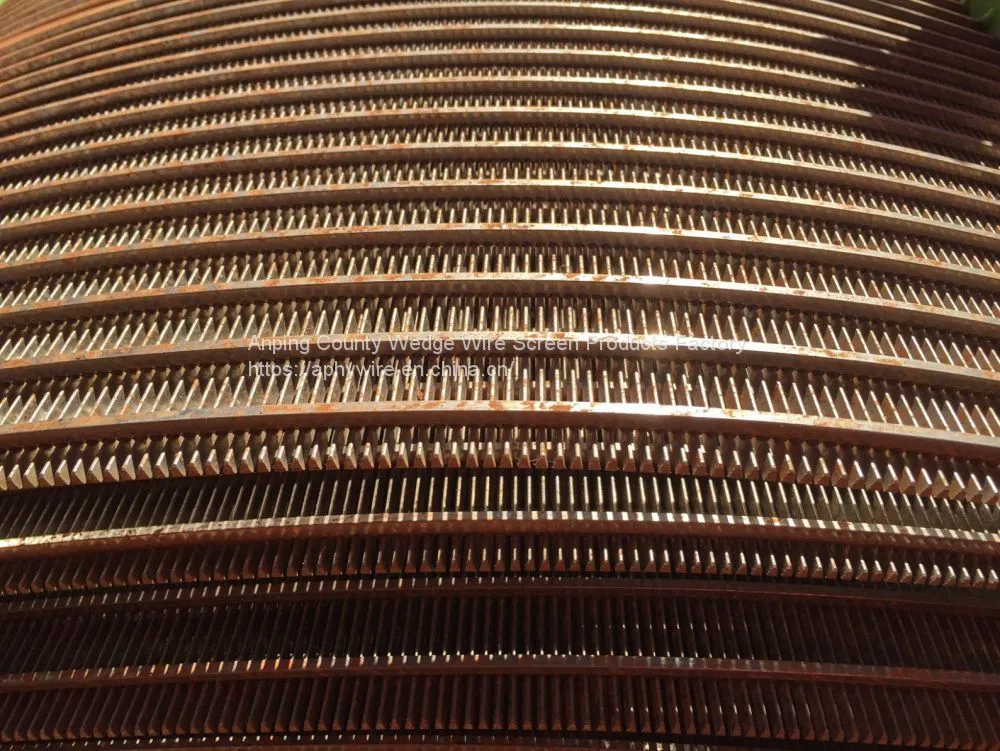

Stainless Steel 304 316 Wedge Wire Screen V Shape Slot Screen Panels
The key of producing the first-class screen mesh is the melting and welding craft, this factory is precisely based on this point, in 2001, has independently developed the automatic welding equipment. It have been proved that, the strip/slot sieve plate processed with the technology has the highest jig efficiency, the strongest ability of shake- resistance and anti- pulls ,the least maintenancesrequest and the longest service life.
The mould production include dehydrated product,and all kinds of strip and slot sieve panal ,flat sieve plate,arc-shape sieving plate,jig sieving plate, acentric sieving basket,t the gap of the sieve surface varies from 0.05-45mm, altogether 60s' specs, could be made according to the users requirment.
Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 50mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 4430mm
| SIZES OF THE WIRE AND ROD | ||||||
| WIRE SHAPE | V | V | V | V | V | V |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 4.5 | 4.6 |
| ROD SHAPE | V | V | V | V | V | O |
| Width(mm) | 2.0 | 2.2 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.5 | 4.6 | 5.0 | 6.0 | 3.0~3.8 |
Industry:
mining machinery: used for desilting and dewatering of coal preparation plants, coal whasher.
wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
food industry: the filtration process can be used for food and beverage.
aquaculture: used for farming, cleaning up waste residues from animals.
