Screen Piece / v Wire Flat Panel / Wedge Wire Grating

Screen Piece / v Wire Flat Panel / Wedge Wire Grating photo-1

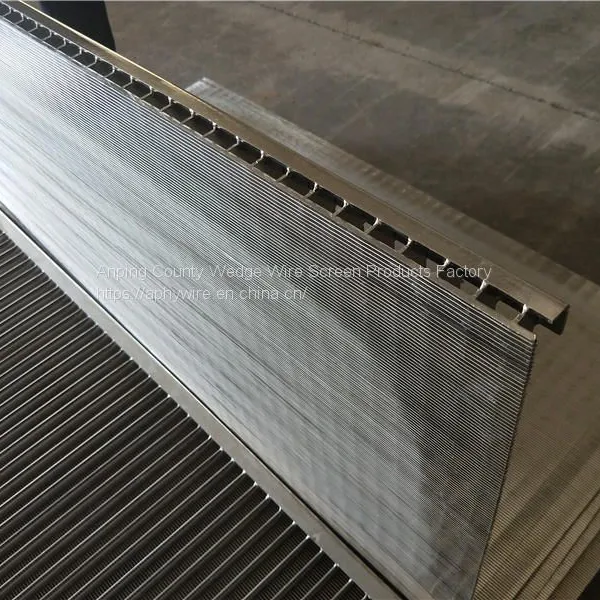

Screen Piece / v Wire Flat Panel / Wedge Wire Grating photo-2

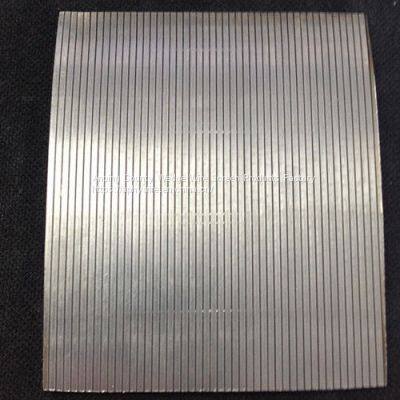

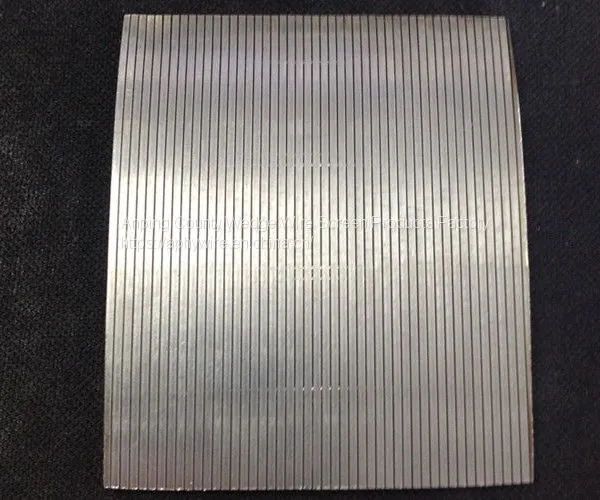

Screen Piece / v Wire Flat Panel / Wedge Wire Grating photo-3
Screen Piece / v Wire Flat Panel / Wedge Wire Grating photo-4

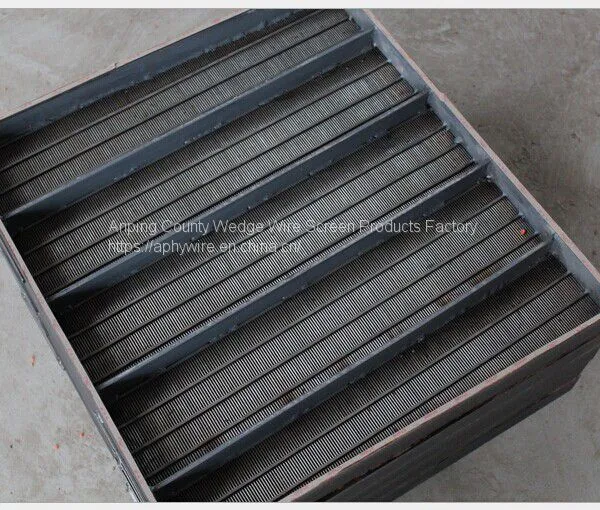

Screen Piece / v Wire Flat Panel / Wedge Wire Grating photo-5
US$ 90 - 190 MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Brand Name:
Anping wedge wire screen factory
Place of Origin:
China
Model Number:
to order
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin, China
Delivery Detail:
7 days
Brand Name Anping wedge wire screen factory
Place of Origin China
Model Number to order
Material Low-Carbon Iron Wire
Type Other, v wire filter plate
Application Construction Wire Mesh
Wire Gauge 1.5x2mm, 1.5x2.5mm, 2x3mm. 2.2x3.5mm, 2.5x4mm, 3x4.6mm, 3.2x6mm, 4x7mm
Material Low-Carbon Iron Wire
Aperture 0.05-50mm
Hole Shape Square

Screen Piece /  v wire flat panel / wedge wire grating

Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment



Wedge Wire Screen Panels Description:

Wedge Wire Screen Panel is welded by V wire and support rod.

There is a fixed value slot between each v wire.

The support bar can be a round wire or a triangular wire or a trapezoidal wire.



Wedge Wire Screen Panels Specification:

Material Stainless steel
Grade 304
Dimension 1500 * 500 m, request
Slot Size 1.0 mm
Width up tp 4000mm
Length up to 4000mm
Type Screen plate
Wire size 3*4.6 mm
Support rod 3*4.6mm with flat steel bar
Wire shape V shape



Wedge Wire Screen Panels Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 100mm

Discrepancy: + / - 0.05mm

Dimension: width up to 4000 mm

                    Length up to 4000mm

Specification of the wrap wire:1*2 mm,  2*3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.



Wedge Wire Screen Panels Feature:

1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability



Wedge Wire Screen Panels Advantages:

Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.


Product Tags: Wedge wire screen panle , wedge wire screen plate , johnson screen plate , johnson screen panel , stainless steel wedge wire sheets , wedge wire support grids , sieve bend screen , arc screen plate , v wire slotted panel
