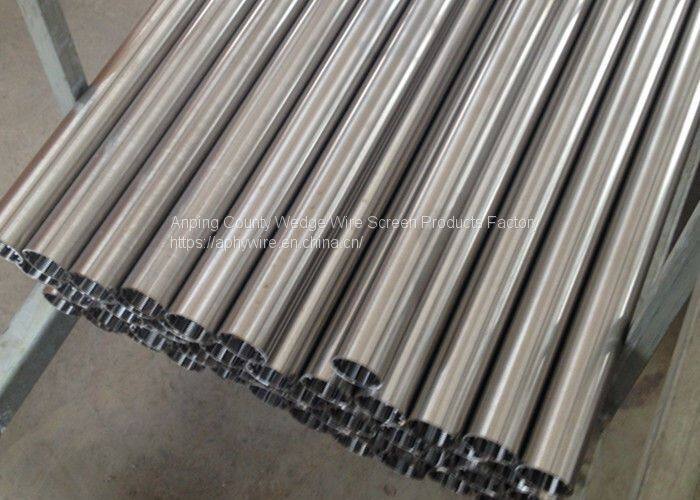

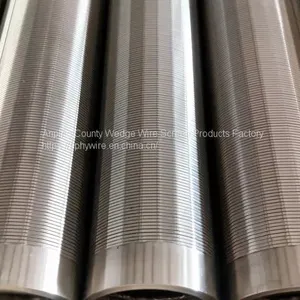

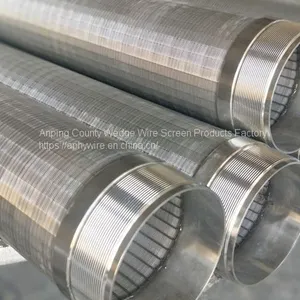

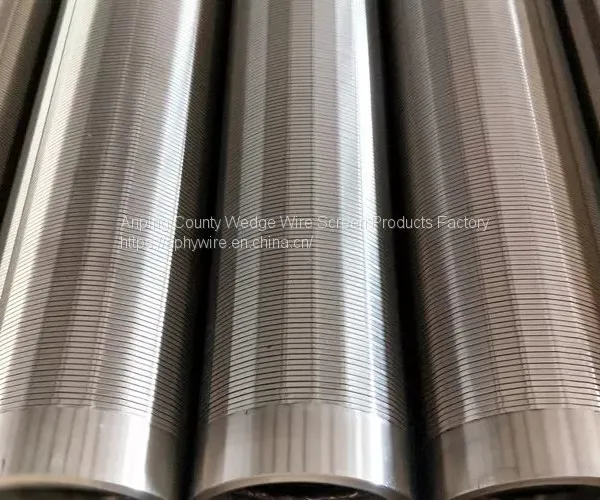

Stainless Steel 304 Wedge Wire Screen Pipe With 0.05mm Slot Opening
Wedge wire screen pipe, also called Johnson screen, wire wrapped screen, water well screen.
It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

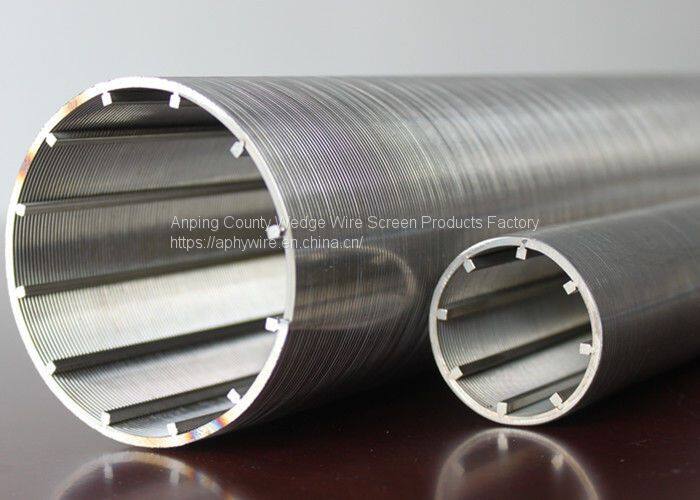

The wedge wire screen pipe is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
Wedge Wire Screen Pipe Performance:acidproof,alkali-resisting, bear high temperature and so on.
Wedge Wire Screen Pipe Application:Screen
Wedge Wire Screen Pipe Style: Strainer
1. ISO 9000
2. Slot:0.05-45mm
3. Diameter:10-1000mm
4. Length:10-6000mm
5. Low price,long life.
6. High quality,not rust
7. Drain quickly,filter
8. Competitive price
9. A one-time molding products with high precision,
10.Small error
11.Low price high quality fast delivery
12.Logo printing available
13.Safe for distance delivery
14.Used in coal, mine, water treatment etc. profession

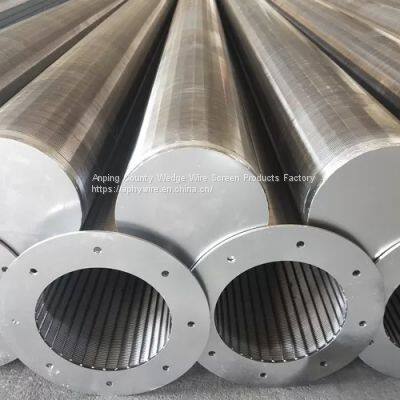

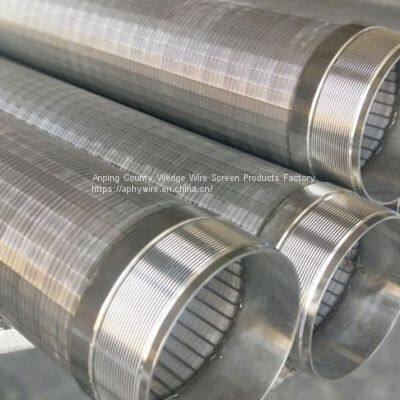

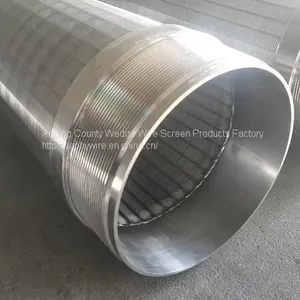

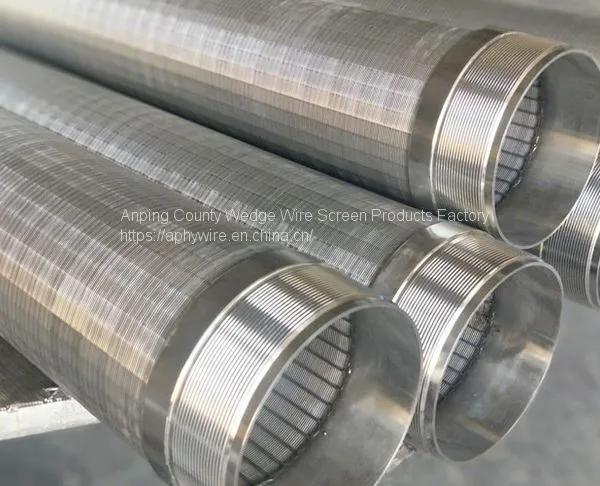

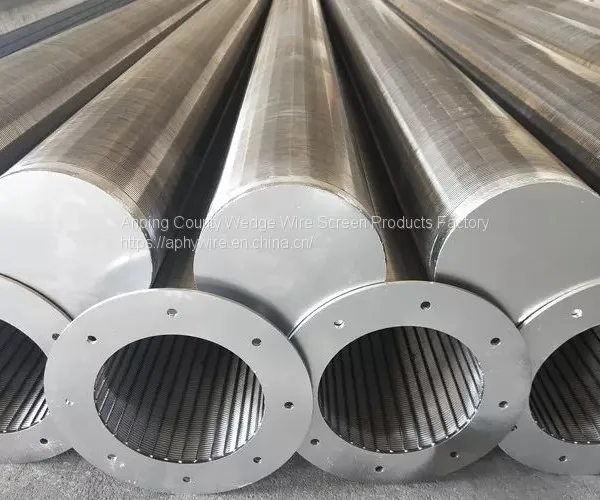

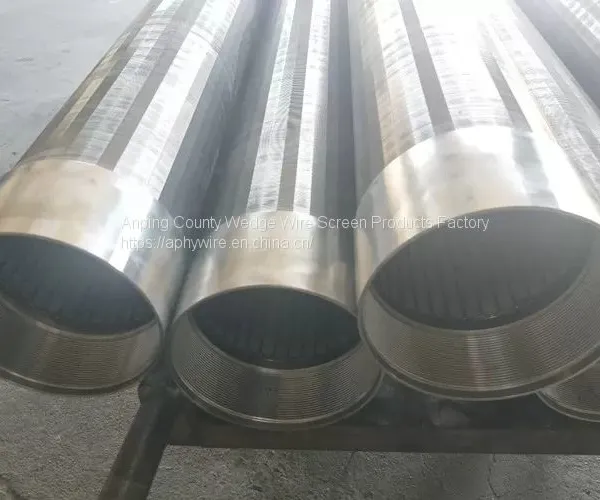

15.End connection: with welding or threaded male/female coupling
Normal Specifications of wedge wire screen pipe
| Material | stainless steel 304, 304L, 316, 316L, 321, etc. |
| Tube diameter | 25 mm - 1500 mm |
| Tube length | 0.3 m, 0.6 m, 1 m, 2 m, 3 m, 6 m and 12 m. Special sizes can be customized |
| Slot size | 0.05 mm - 2.5 mm |
| Surface profile type | triangle wire |
| Support profile | triangle wire, round wire, flat bar or wedge wire |
