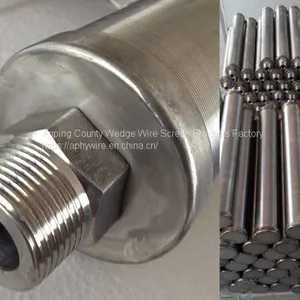

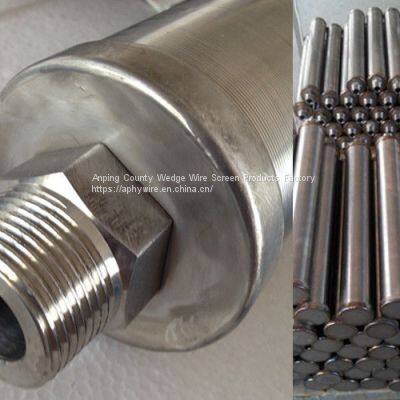

Help CenterWedge Wire Spiral Screen Tube , Stainless Steel v Wire Johnson Filter Candles
Related Products
-
Wedge Wire Filter Nozzle, Johnson Screen Nozzle, Stainless Steel Strainer Nozzle, Filter Bottom Nozzle ElementUS$ 5 - 25MOQ: 20 Pieces -
Stainless Steel Lateral Arm, Header LateralUS$ 30 - 85MOQ: 30 Pieces
-
Looped Wedge Wire Water Well ScreenUS$ 56 - 356MOQ: 30 Sets
-
Vee - Wire Johnson Sand Conrol Wire ScreensUS$ 20 - 120MOQ: 10 Pieces
-
Terra MeshUS$ 0.8 - 0.8MOQ: 15 Sets
Contact Person: Miss Anne Gu
Mobile: 0086-0-13653289943
MSN:aphengyuanwire@hotmail.com
produce name: v wire water well screens, wire wrapped screens pipe, Johnson Screen, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube,reverse rolled screen, strainer pipe, continous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainlss steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screensm wide slit screens, well point screens, PPS screen, oil screen tube

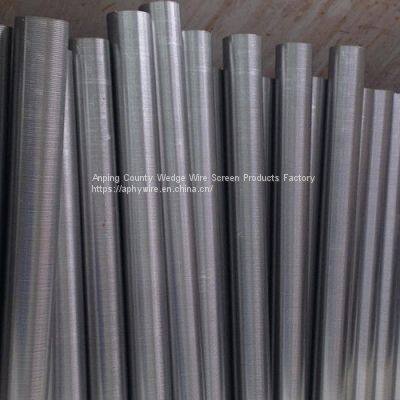

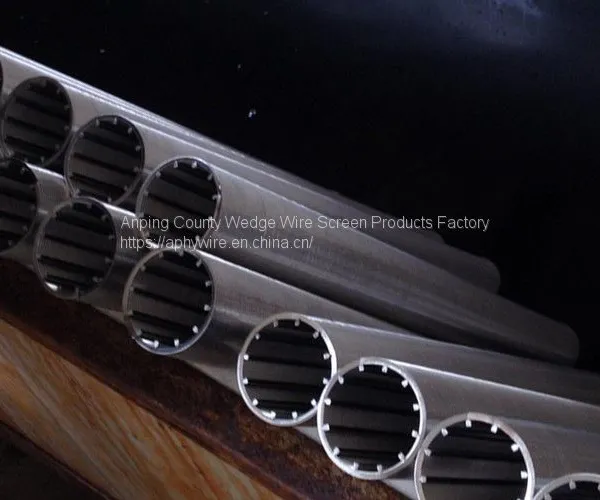

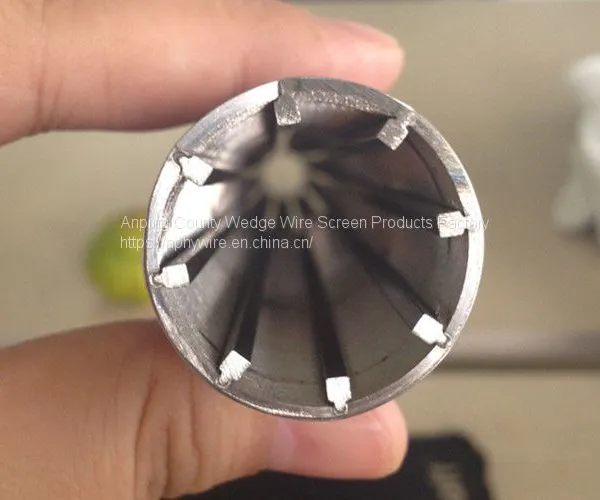

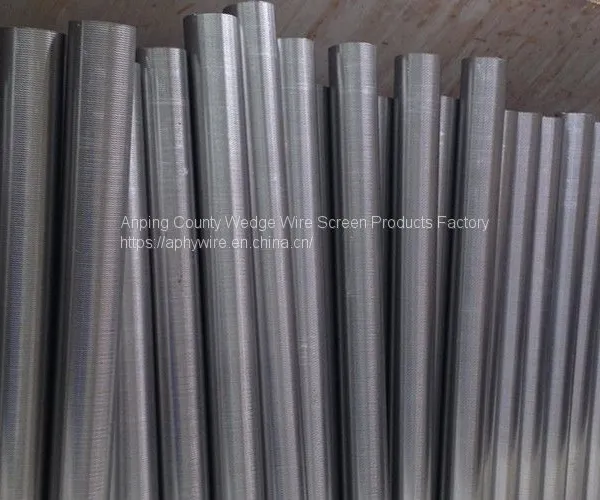

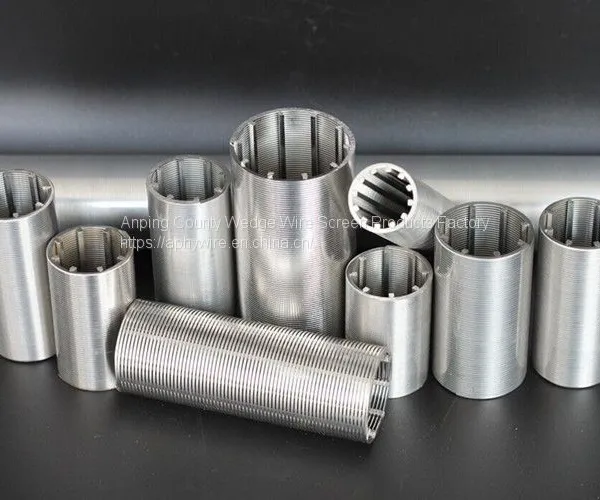

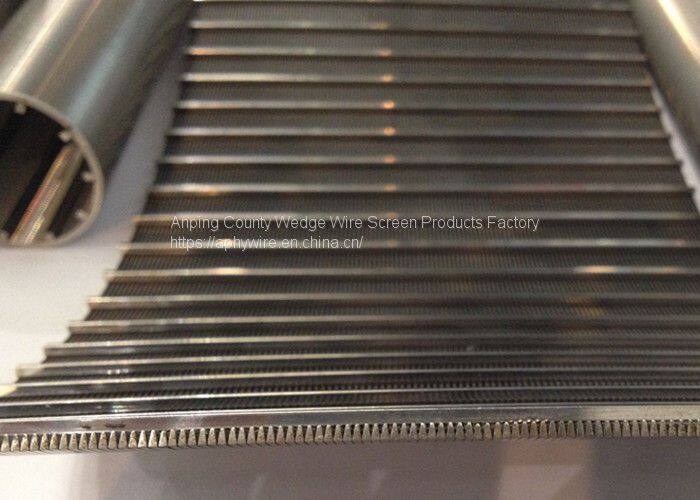

Made of V-shape profile wire and longitudinal support rod, each intersecting point of the wires is fusion welded, so it has sturdy constriction and good mechanical property.
The V-shape section can avoid blockage and make sure of the unimpeded water. And the continuous slot have flexiable open area, that can reduce the speed of the water entering to avoid the sand entering the screen under the pressure, so it can filter sand better.
And also the slot size can changed according to different requirment.
It is widely used for water, oil, and gas wells, and is the dominant water well screen used in the water well industry.
Specification:
1.Material: stainless steel(304, 304L, 316, 316L etc.)
low carbon, low carbon galvanized steel(LCG),
2.Diameter: Normal size is 89mm 114mm, 168mm 219mm 245mm 273mm 325mm 406mm 426mm and etc.
More size can be made according to customer's requirment
3.Slot: 0.1mm, 0.2mm, 0.5mm, 0.75mm, 1mm, 1.5mm and etc.
Also can be made as customer's requirement.
4. Length: 1-6m (2.9 or 5.8m is suitable for container loading)
Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating
Data reference table:
size |
the inside diameter of |
Outer |
Internal |
||||
in |
mm |
In |
mm |
in |
mm |
In |
mm |
2 |
51 |
2 |
51 |
25/8 |
67 |
23/4 |
70 |
3 |
76 |
3 |
76 |
35/8 |
92 |
33/4 |
95 |
4 |
102 |
4 |
102 |
45/8 |
117 |
43/4 |
121 |
5 |
127 |
5 |
127 |
55/8 |
143 |
53/4 |
146 |
6 |
152 |
6 |
152 |
65/8 |
168 |
7 |
178 |
8 |
203 |
8 |
203 |
85/8 |
219 |
91/4 |
235 |
10 |
254 |
10 |
254 |
103/4 |
273 |
113/8 |
289 |
12 |
305 |
12 |
305 |
123/4 |
324 |
133/8 |
340 |
14 |
356 |
131/8 |
333 |
14 |
356 |
- |
- |
16 |
406 |
15 |
381 |
16 |
406 |
- |
- |
20 |
508 |
18 3/4 |
476 |
20 |
508 |
- |
- |
PROFILE WIRE |
||||||||
WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
SUPPORT ROD |
|
|||||
WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
