BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain

BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain thumbnail-1
BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain thumbnail-2
BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain thumbnail-3
BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain thumbnail-4
BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain thumbnail-5

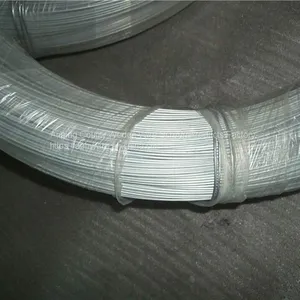

BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain photo-1
BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain photo-2
BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain photo-3
BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain photo-4
BWG 12 14 20 Galvanized Wire, Hot Dipped Galvanized Iron Wire, Galvanized Iron Wire, Galvanized Steel Wire for Bunding, Metal Chain photo-5
US$ 1200 - 1300 MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
Anping wedge wire screen factory
Place of Origin:
China
Model Number:
to order
Contact Supplier Request Quote Chat Now
Anping County Wedge Wire Screen Products Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Port, Tianjin, China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Anping wedge wire screen factory
Place of Origin China
Model Number to order
Material Galvanized Iron Wire
Type Other, galvanized wire
Application Construction Wire Mesh
Wire Gauge #10,#12,#14,#16,#18,#20,#22,.etc
Material Galvanized Iron Wire

BWG 12 14 20 Galvanized Wire/ Gi Binding Wire/Hot Dipped Galvanized Iron Wire

Galvanized wire is made of high quality low carbon steel wire rod processing, is made of high quality low carbon steel, after drawing molding, pickling rust removal, high temperature annealing, hot dip galvanized, cooling and other technological processes processing.Galvanized wire is divided into hot galvanized wire and cold galvanized wire (electric galvanized wire).

Galvanized iron wire, also known as galvanized steel wire, finds most uses in binding of construction materials or weaving of galvanized wire mesh products.

According to the difference of zinc coating process can be divided into: electro galvanized steel wire and hot-dipped galvanized steel wire.

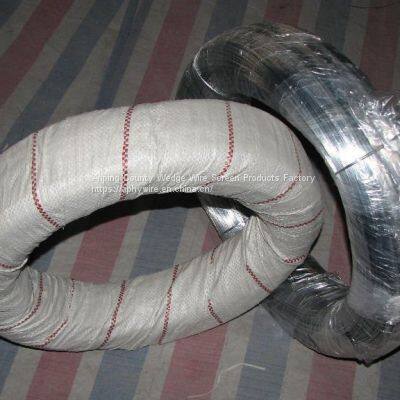

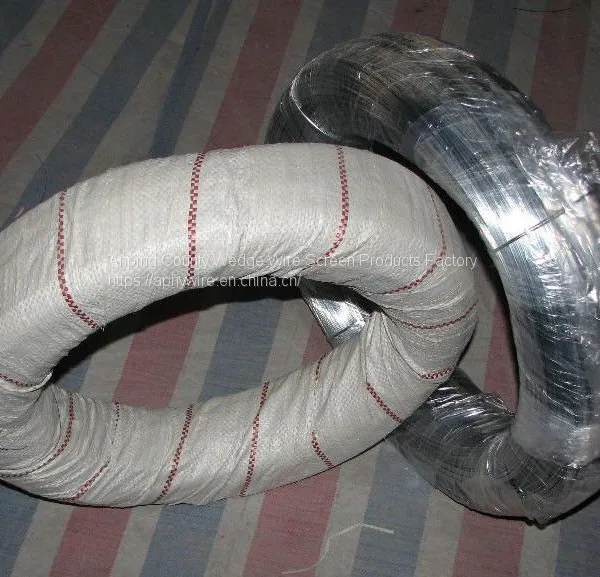

  • Galvanized Wire in Small Coils:
    Wire diameter: 0.5-1.8mm
    Packed in 1kg-20kg small coils. Plastic film inside, gunny bags or woven bags outside.

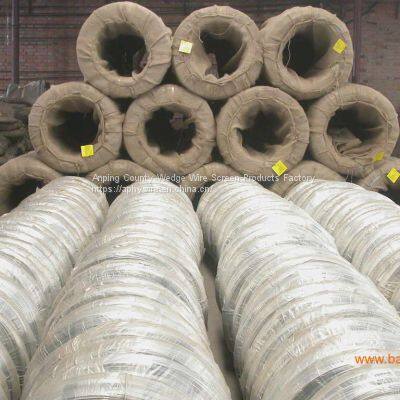

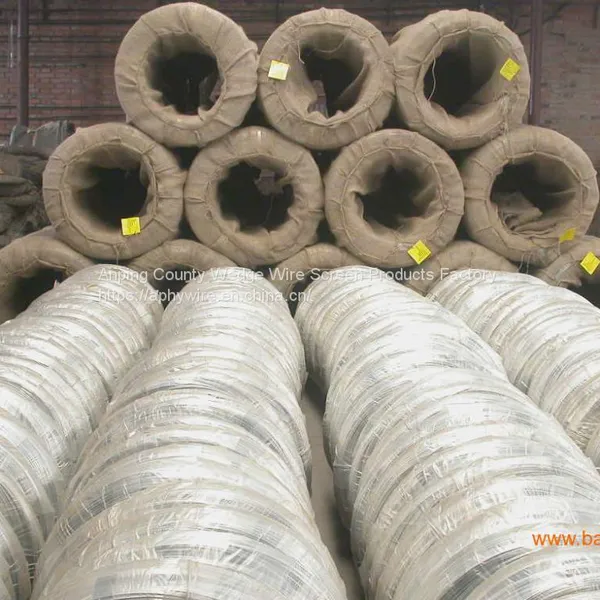

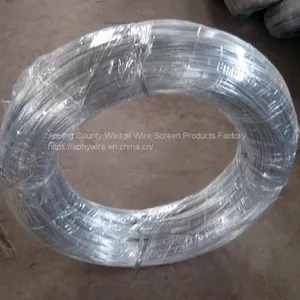

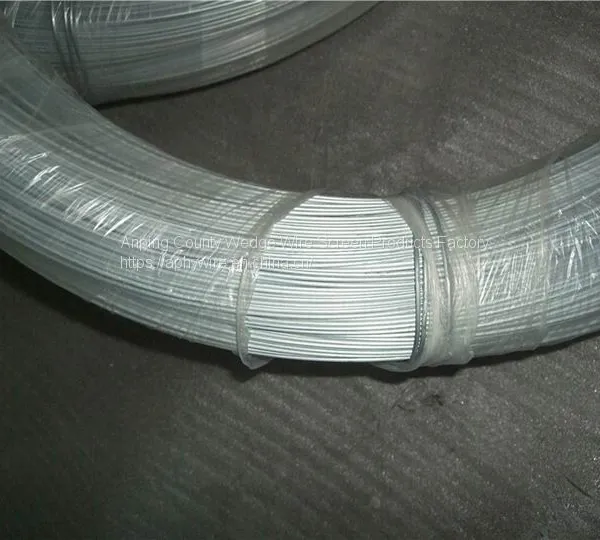

  • Galvanized Wire in Big Coils:
    Wire diameter: 0.6-1.6mm.
    Tensile strength: 300--500MPa.
    Elongation: =15%.
    Packing: Big coils of 150kg-800kg.

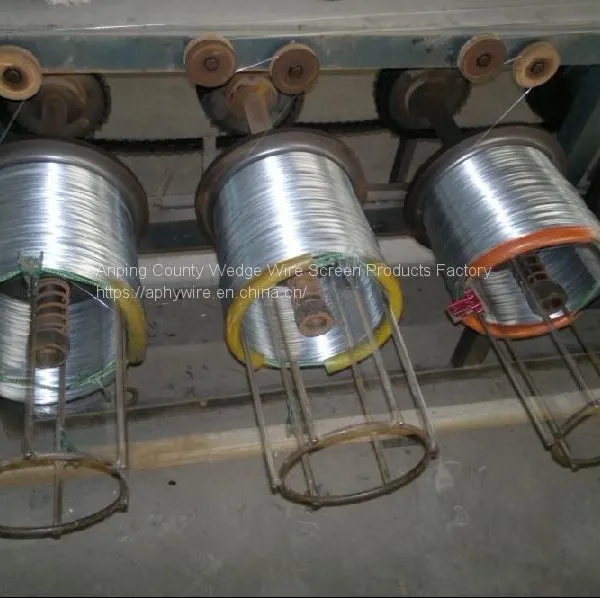

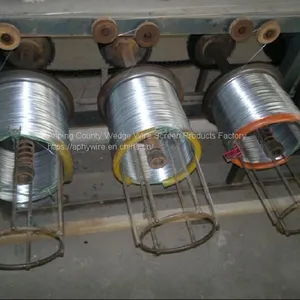

  • Galvanized Wire on Spools:
    Wire diameter: 0.265-1.60mm.
    Tensile strength: 300--450MPa.
    Elongation: =15%.
    Packing: On spools of 1kg-100kg.

Bwg 12 14 20 Galvanized Wire/ Gi Binding Wire/Hot Dipped Galvanized Iron Wire

Characteristice:
galvanized iron wire has good toughness and elasticity, with a thick galvanized layer, strong corrosion resistance and other characteristics.

Galvanized wire is divided into hot-dipped galvanized wire and cold galvanized wire (electrical galvanized wire)

Hot galvanizing is melting in the heat inside the liquid zinc immersion plating, production speed, coating thickness, but are not uniform, the market allows the minimum thickness of 45 microns, up to 300 microns.Color is darker, more consumption of zinc metal, metal forming infiltration layer and matrix, and good corrosion resistance, hot dip galvanized outdoor environment can stay for decades.Because the coating obtained is thicker, hot dip galvanizing has better protective performance than electric galvanizing, so it is an important protective coating for steel parts in harsh working environment.Hot dip galvanized products are widely used in chemical equipment, petroleum processing, Marine exploration, metal structure, power transmission, shipbuilding and other industries, in agricultural fields such as pesticide irrigation, greenhouse and construction such as water and gas transmission, wire casing, scaffolding, Bridges, highway guardrail, etc., in recent years have been widely used

Cold galvanizing (electric galvanizing) is in the electroplating trough through the unidirectional current zinc gradually plated on the metal appearance, production speed is slow, uniform coating, thin thickness, usually only 3-15 microns, the appearance of light, poor corrosion resistance, generally a few months will rust.Compared with hot dip galvanizing, the production cost of electric galvanizing is lower.


Wire Gauge SWG(mm) BWG(mm) Metric(mm)
8 4.05 4.19 4.0
9 3.66 3.76 4.0
10 3.25 3.40 3.5
11 2.95 3.15 3.0
12 2.64 2.77 2.8
13 2.34 2.41 2.5
14 2.03 2.11 2.5
15 1.83 1.83 1.8
16 1.63 1.65 1.6
17 1.42 1.47 1.4
18 1.22 1.25 1.2
19 1.02 1.07 1.0
20 0.91 0.84 0.9
21 0.81 0.81 0.8
22 0.71 0.71 0.7


Bwg 12 14 20 Galvanized Wire/ Gi Binding Wire/Hot Dipped Galvanized Iron Wire

Bwg 12 14 20 Galvanized Wire/ Gi Binding Wire/Hot Dipped Galvanized Iron Wire
