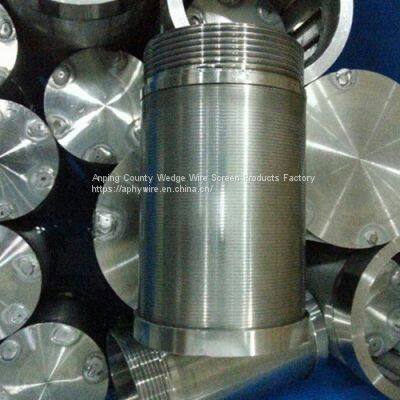

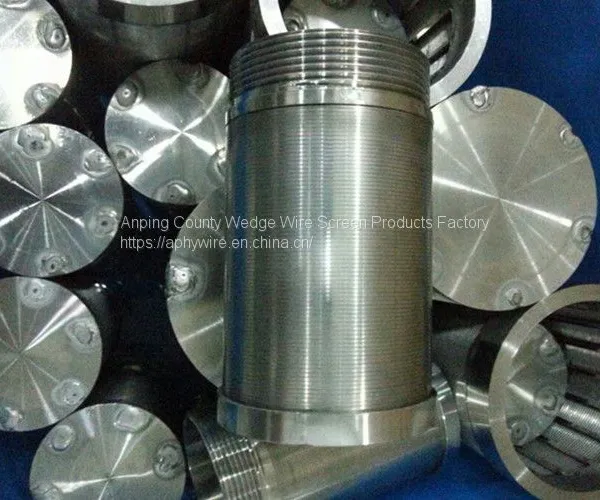

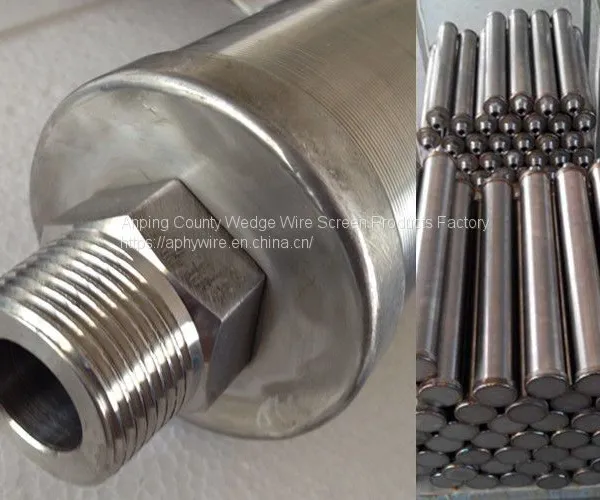

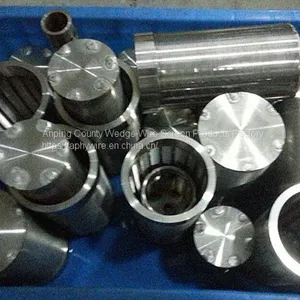

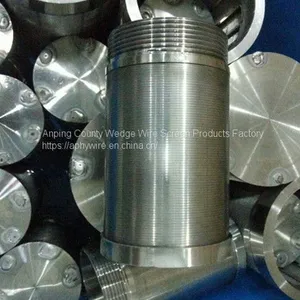

Help CenterStainless Steel Lateral Arm, Header Lateral
Related Products
-
Wedge Wire Spiral Screen Tube , Stainless Steel v Wire Johnson Filter CandlesUS$ 20 - 50MOQ: 30 Meters -
Wedge Wire Filter Nozzle, Johnson Screen Nozzle, Stainless Steel Strainer Nozzle, Filter Bottom Nozzle ElementUS$ 5 - 25MOQ: 20 Pieces
-
Wedge Wire Screen Tube , Wedge Johnson Wire Water Well Screen PipeUS$ 20 - 120MOQ: 30 Meters
-
Stainless Steel Wire MeshNegotiableMOQ: 1 Set
-
Rotary Drum Screen, Wedge Wire Screen Basket, V Wire Filter BasketUS$ 30 - 120MOQ: 3 Sets
Anping County Wedge Wire Screen Products Factory
whatsapp: +86-13653289943
qq: 374153898
skype: anne_gu
water well screen, wedge wire screen pipe, wire wrapped screen tube, stainless steel filter element, cylindrical screen, oil well screen, spiral screen tube, continuous slot screens, johnson wire screen, v wire slot tube, rod based well screens
Specification Details:
Diameter: 1-78.5"
Length:10ft, 20ft
Slot: 0.025mm, 0.03mm, 0.05mm, 0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.75mm, 1.0mm,...50mm
Connection: threaded (NPT, PT, BSP), welded rings, flange
Precision Fine Water Filter Johnson Screen Wire Mesh Tube
Product Description:
Material: SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
External diameter: 25--300mm
Standard: Non-standard, OEM, ODM
Specification:Easy leakage, wear resistance, corrosion resistance. The mesh cross
section is a trapezoid, narrow width of the gap, have a wire made of cold rolled
stainless steel, this wire is support rods. The screen is uniform, the welding is
stable, high hole rate, long service life, high strength, stiffness and bearing capacity
of rigid, screening filter device can be made into various shapes.

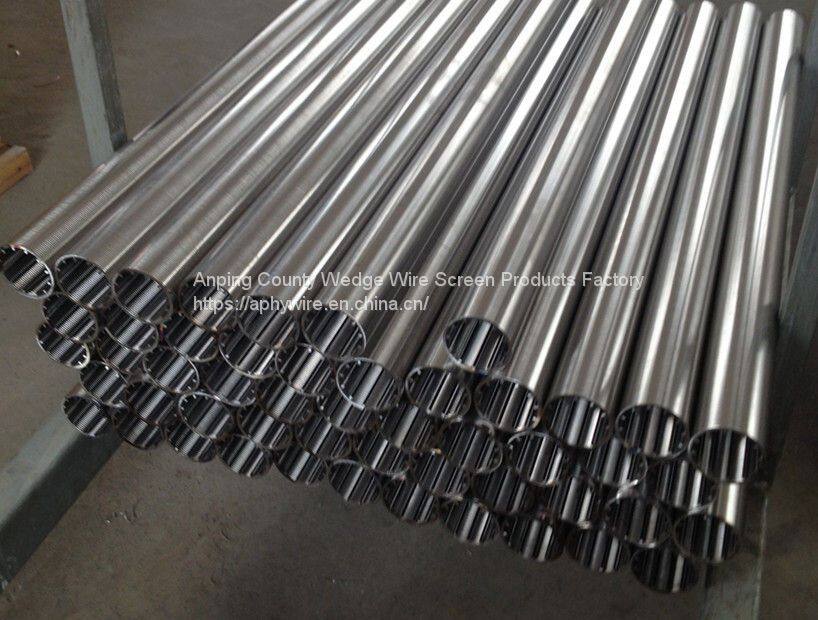

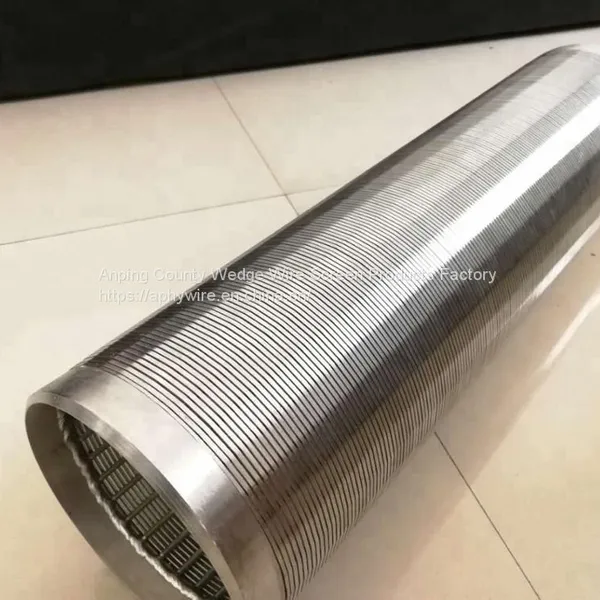

| Item | Wedge Wire Screen Pipe |
| Material | Stainless steel 304, 304L, 316L and 321 etc. |
| Specification |
Profile Wire Width: 1.0mm to 3.2mm Profile Wire Height: 2.0mm to 6.0mm
Support Rods Width: 2.0 3.0mm Support Rods Height: 3.0mm to 7.0mm Round: From 2.5mm to 6.0mm
Slot Size: 0.1mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length | Max 6 meters |
| Pipe diameter | 29mm to 1200mm |
| Pipe Screen Ends | Plain Beveled ends, male/female threaded, flange or close up. |
| Feature |
Accurate filtering performance. Normal or high grade type for choice. |
| Usage |
Sewage treatment and flood system: water source inlet, basement supply, carbon and resin retention, decentralization softening and ion exchange, sand, double and mixed media filtration, waste water sludge treatment; Mineral processing, paper making and food processing: screening, coal drying, starch filtration, pulp and plant fiber filtration, beverage filtration; |
| Customized | Available |
Characteristic:
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.
