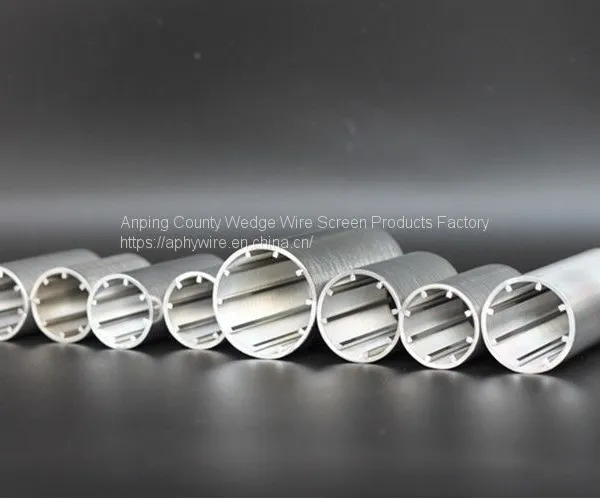

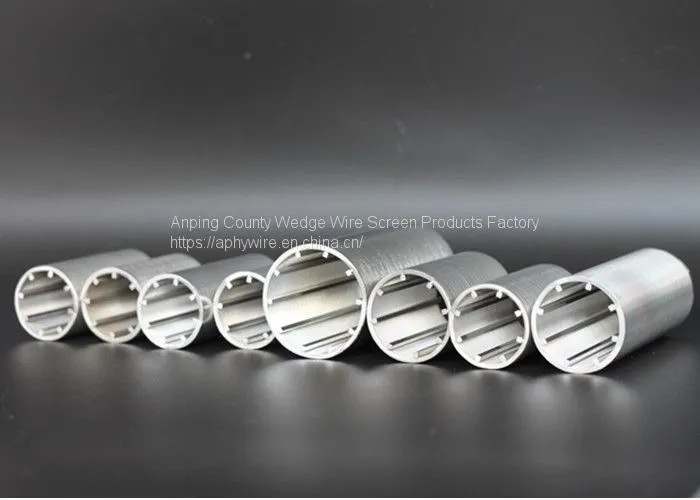

Help CenterWedge Wire Profect Round Johnson Screen Tube
Related Products
-
Sieve Bend Plate , v Wire Slot Panel, Wedge Wire Johnson Filter PanelUS$ 60 - 200MOQ: 5 Square Meters -
Low Carbon Galvanized Johnson Screen TubeUS$ 36 - 360MOQ: 15 Pieces
-
Johnson Drilling Well Screen,slotted Screen,strainer PipeUS$ 20 - 120MOQ: 10 Pieces
-
Johnon Type v Wire Screen; Johnson Wire Screen ; Johnson Well ScreenUS$ 30 - 300MOQ: 10 Pieces
-
Sieve Bend Plate , v Wire Slot Panel, Wedge Wire Johnson Filter PanelUS$ 60 - 200MOQ: 5 Square Meters
whatsapp: +86 13653289943
skype: anne_gu
QQ: 374153898

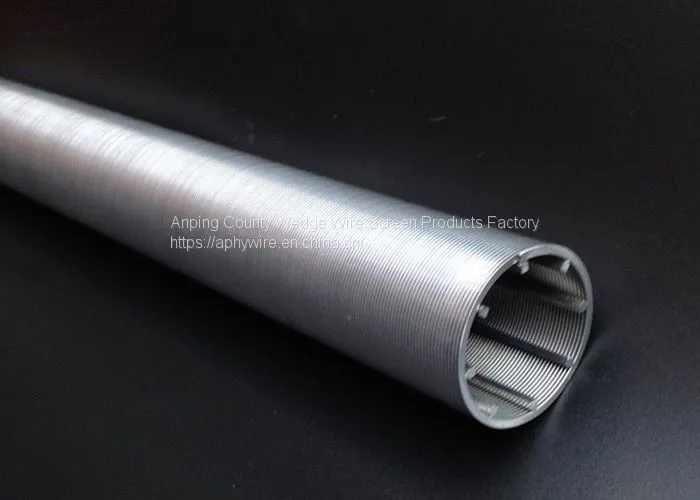

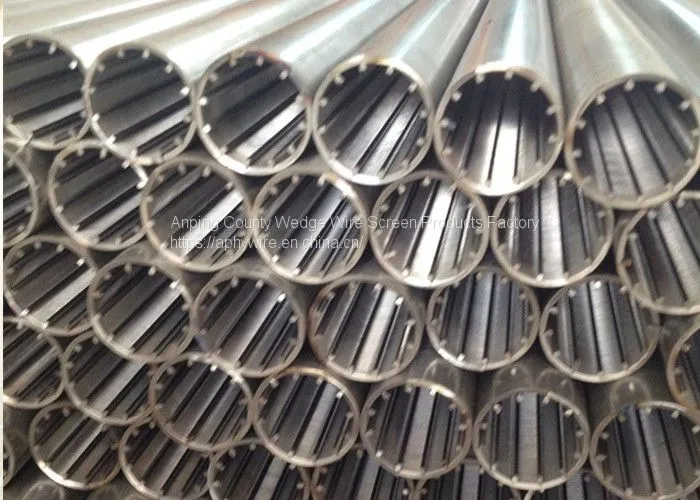

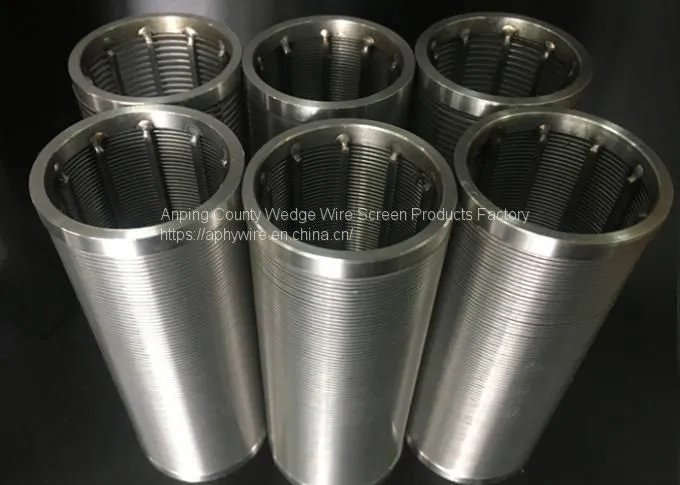

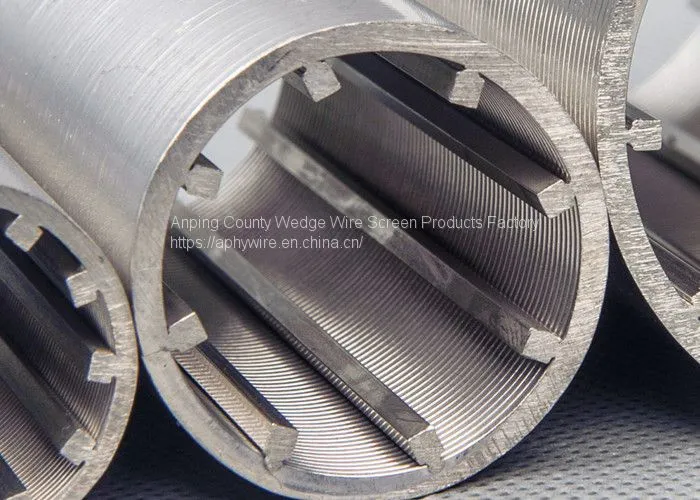

johnson screen tube, water well screen, wedge wire screen, spiral screen pipe, continuous slot screen, v wire screens, oil well screen, wire wrapped screen
Material: stainless steel wire, low carbon galvanized
Diameter: 19-2000mm
Slot: 0.025-6000mm
length: up to 6.05m
End connection: threaded, welding rings, flange
Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 4.8MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 3.8MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.0MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Special specification can be made according to your need!
Advantages:
When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings. The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
Industry:
Water Well Screen Pipe Screen, continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
