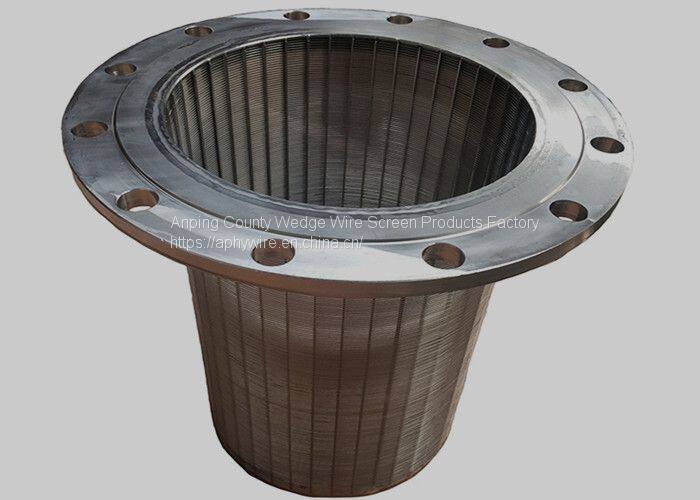

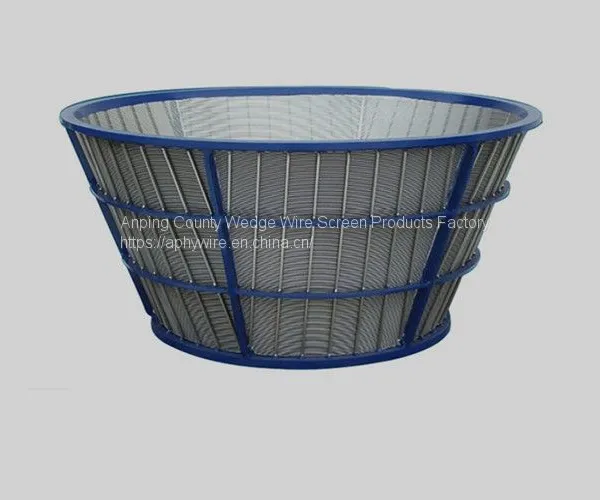

Wedge Wire screen cylinders / filter drum
Filter water pipe is also called filter, water filter, commonly known as flower tube. Pumping hole (well), which is placed in the water bearing layer, can be permeable.

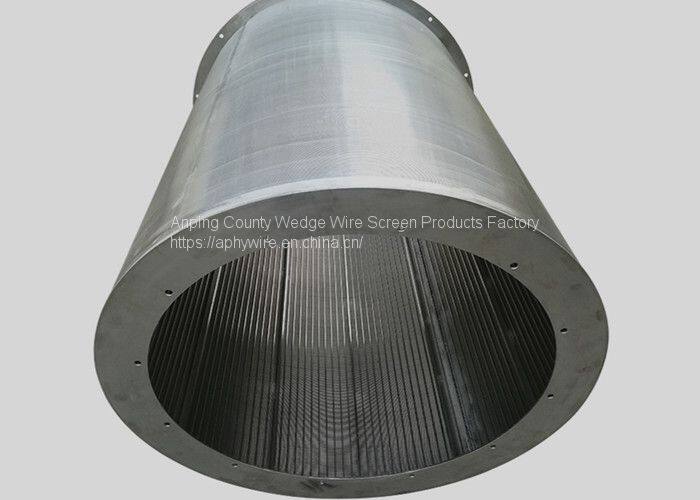

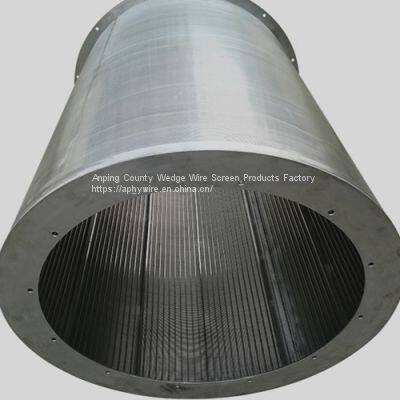

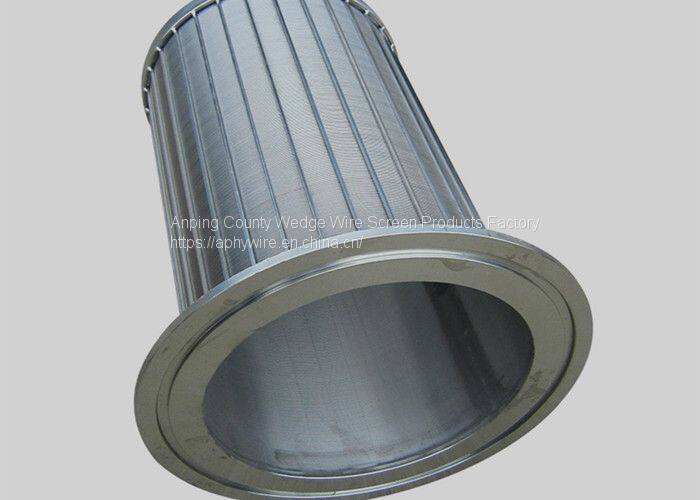

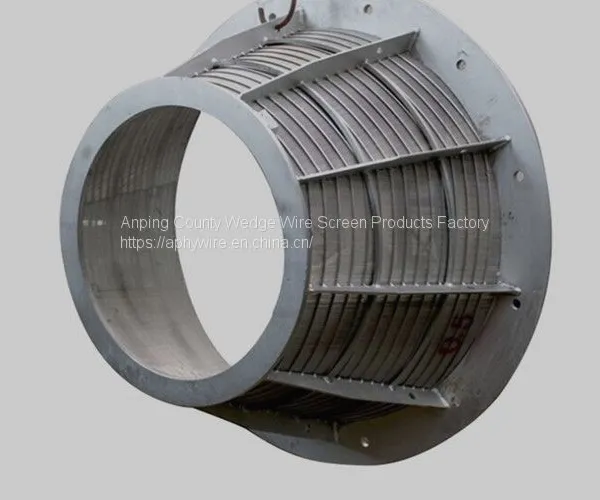

Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside surface of the screen cylinder (above left) or they can be
positioned axially on the inside of the cylinder (above right) Screen cylinders are manufactured in various diameters from 1/2" pipe size to 35" diameter.
Screen cylinders (above right) can be fabricated into larger diameters. Each intersection of wedge wire and support rod is welded for strength and durability.
Various wedge wire and support rod combinations can be used to produce the best screen design. Rotary Screens typically use wedge wire for the screening media.

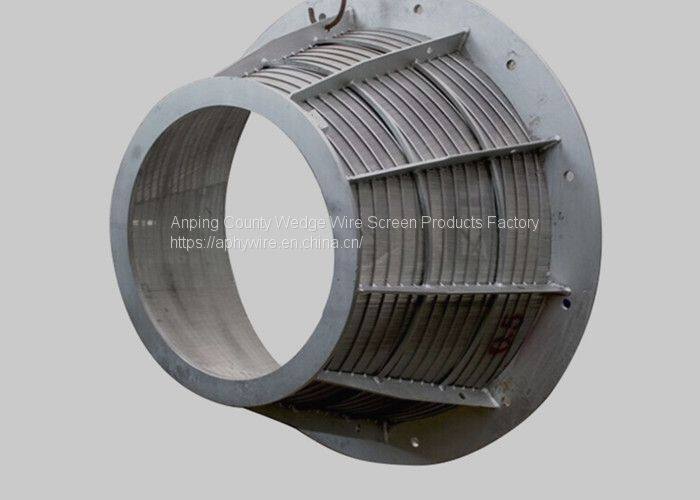

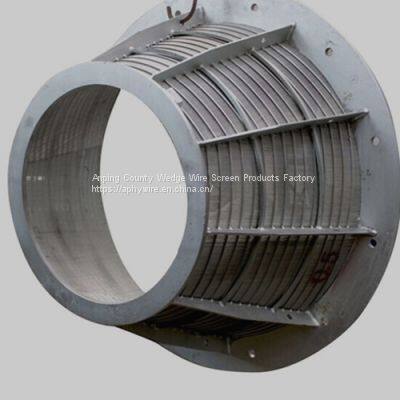

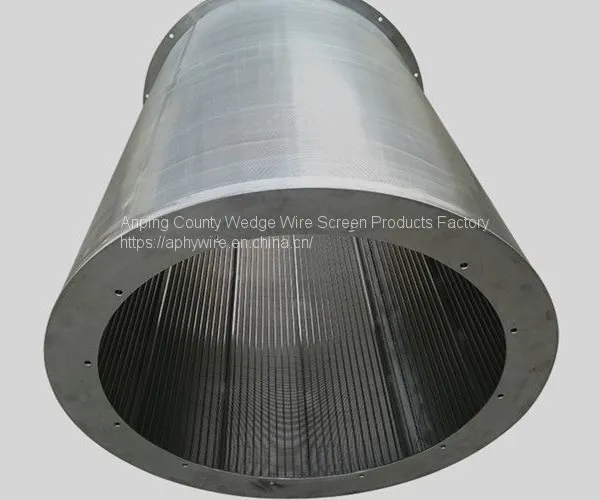

The above externally fed unit has a spiral wound wedge wire screen drum 36" OD x 120" long.
TECHNICAL SPECIFICATION : NB 1.5", 2", 3", 4", 6", 8", 10", 12", 14"
Slot(mm) 0.15,0.25, 0.50, 0.75,1.00,1.50,2.00,3.00
Lengths 6 Mts. & 3 Mts.
Grades Different grades suitable for tube well depths upto300 ft., 600 ft., 900 ft. and 1500 ft.
Material Low Carbon Galvanized Steel ( LCG ) and Stainless Steel ( SS-304 )
End Connection Plain beveled ends for butt welding or threaded.

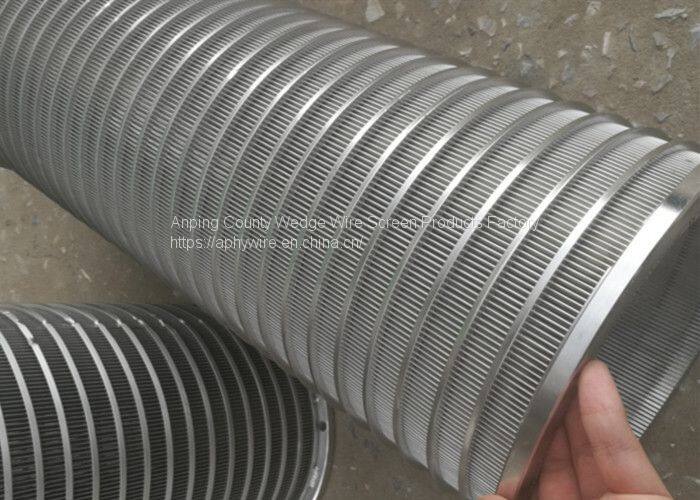

Screen Cylinders from vee shaped wire for filtration. A V shaped wire is spirally wound and welded on a cage of longitudinal wedge shaped or trapezoidal
shaped rods. Each and every intersection between vee shaped wire and the wedge wire is welded automatically. This creates a continuous spiral slot. These screen tubes
cylinders are also known as continuous vee slot tubes.
Different types of construction are available such as
Rod base construction : Outside to Inside Flow
Wire Base Construction : Inside to Outside flow
Inverted Wire Base : Inside to Outside flow
External Axial Wire : Outside to Inside Flow
Internal Axial Wire : Inside to Outside Flow
External Circumferential Wire : Outside to Inside Flow
Internal Circumferential Wire : Inside to Outside Flow
