Screen nozzles
filter element
resin raquet organ
Standard nozzles are used effectively in a variety of water treatment systems. They are economical, easily installed, and have several distinct design advantages:
Type 316L stainless steel construction.
Continuous slot design provides increased open area for better collection.
Standard slot opening is 0.007" (0.18 mm), suitable for 40 to 50 mesh size media. Other slot sizes are also available.
Wedge wire screen is highly resistant to plugging.
Choice of either ¾" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
Less expensive than other screen of equal efficiency.
Stainless steel Wedge WIre Slot Water Filter Screen Nozzle For Water Treatment
Product Description:
| Product Name | Johnson Water Filter Nozzle | Usage | Liquid filter |
| Material | Stainless Steel | Grade | 316L |
| Diameter | 45 mm | Slot size | 0.25mm |
| Screen Lenth | 50 - 55 mm | Total length | 90mm |
| Thread Size | 1 1/4 " , 32 mm | Profile wire | 1.5*2 |
| Nutsert | 1 PCS, 2 PCS | Support rod | 2*3 |
| Gasket | 1 PCS steel gasket,1 PCS rubber mat | Type | Filter element |
Characteristic:

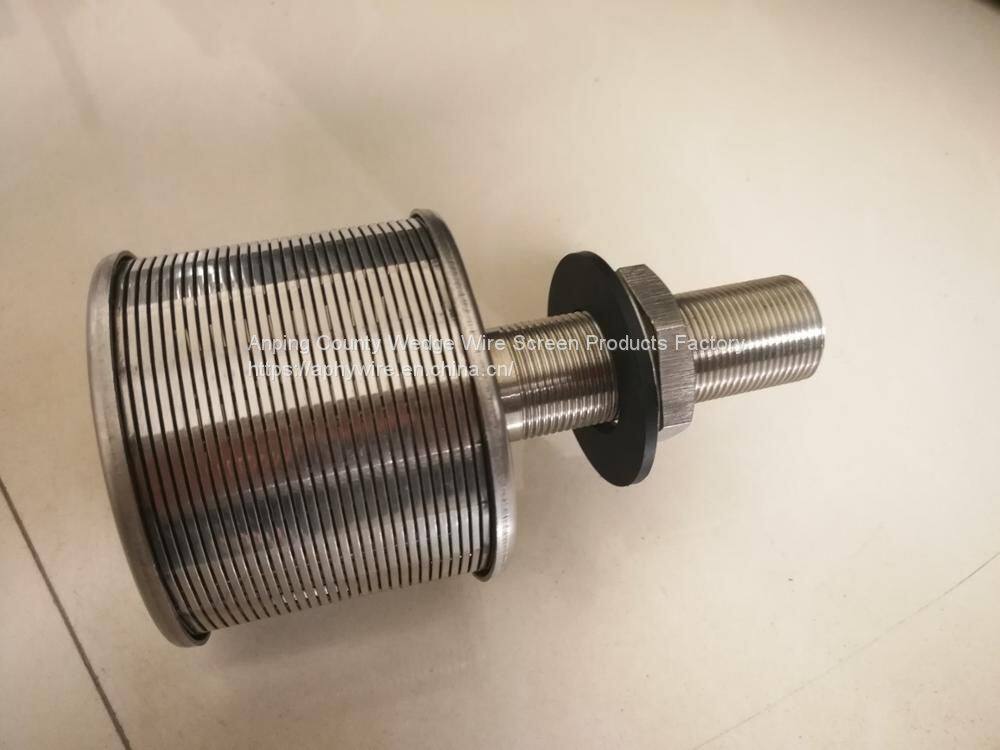

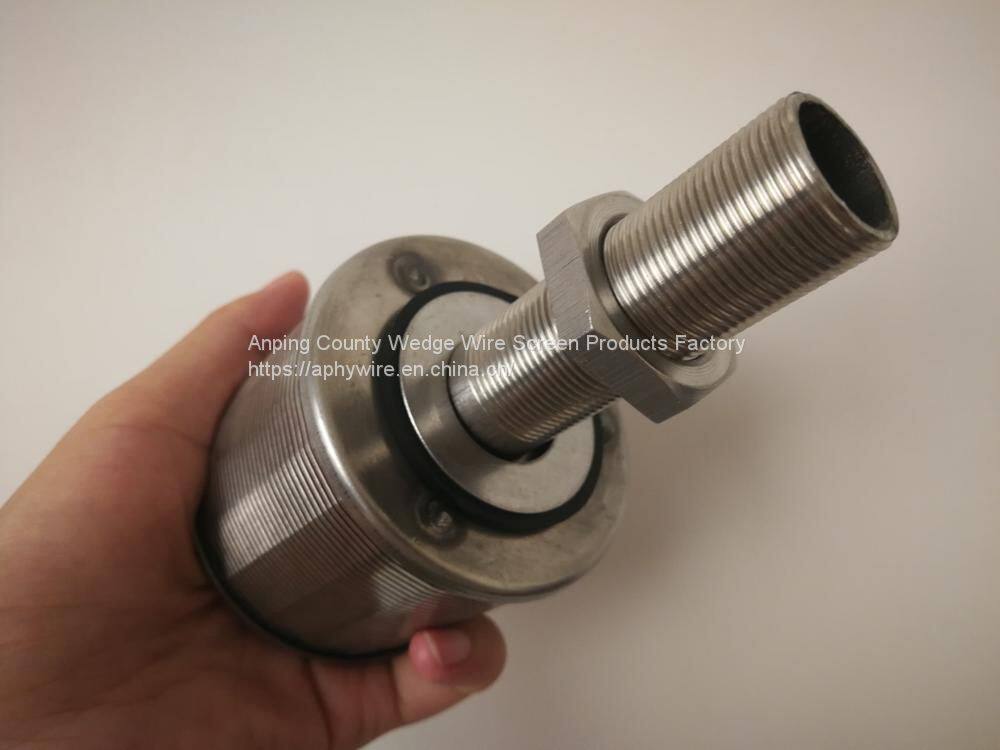

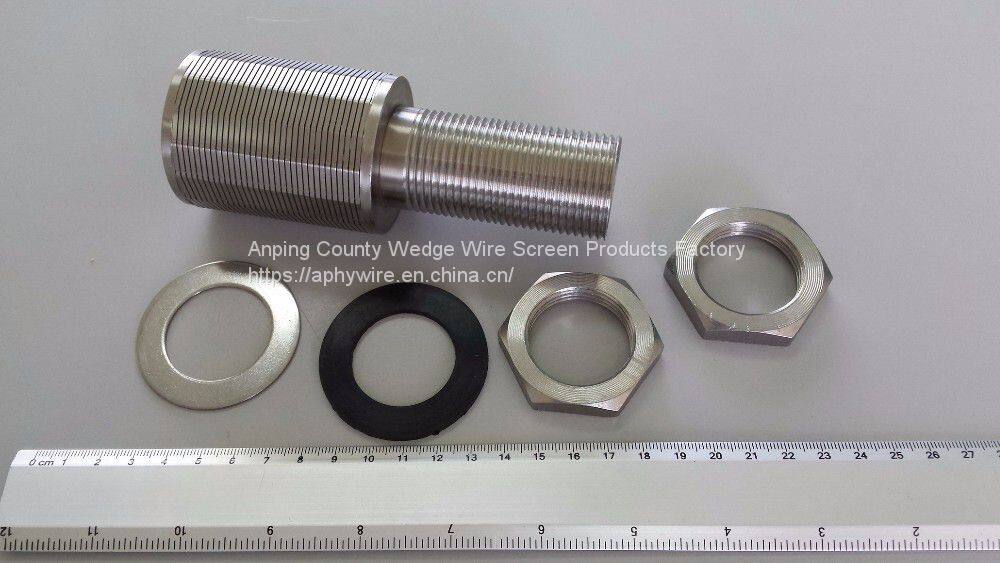

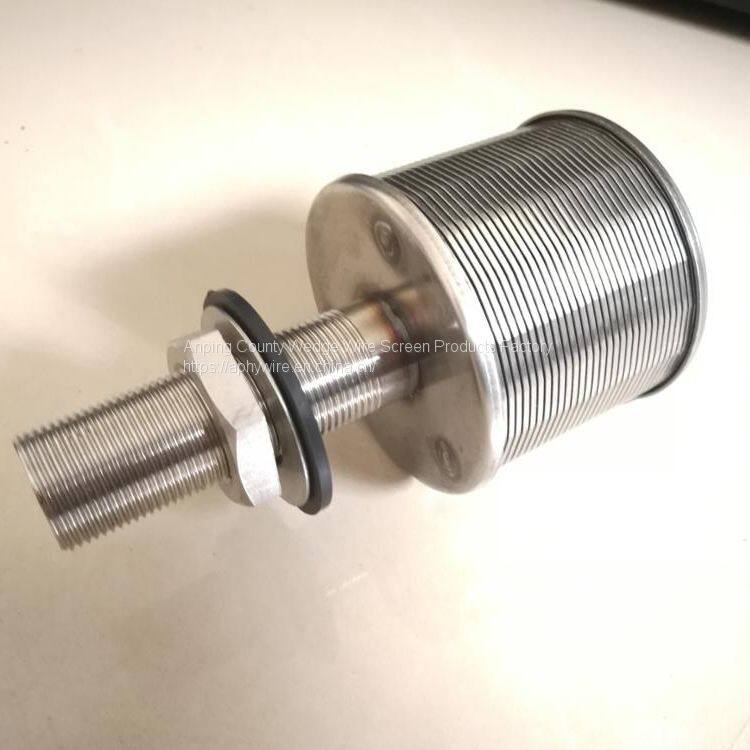

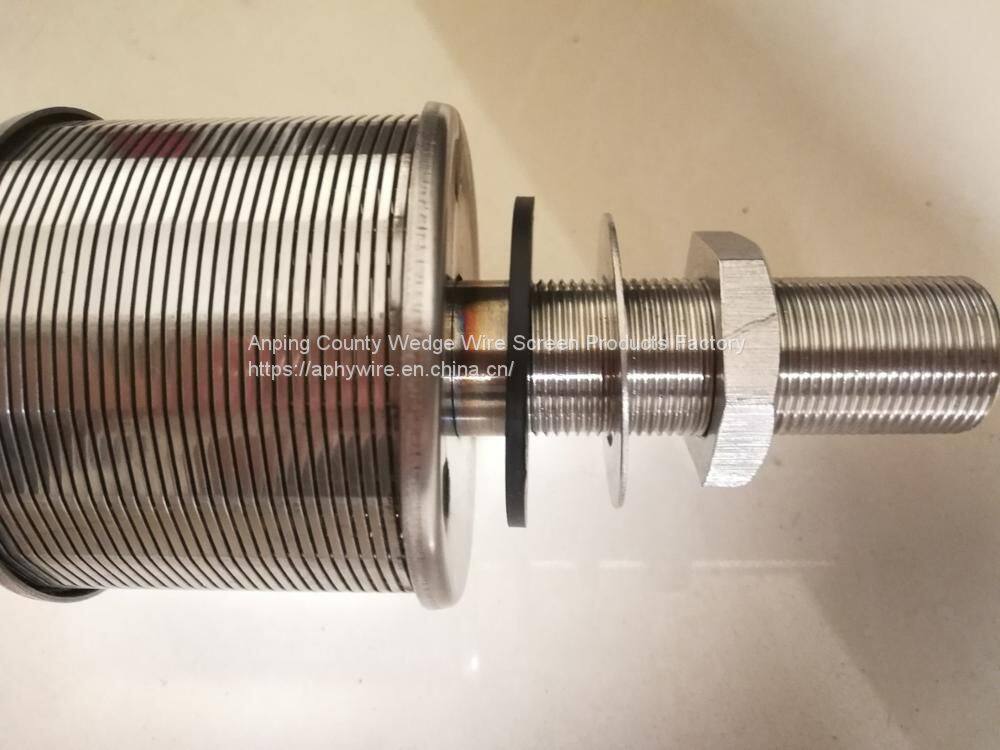

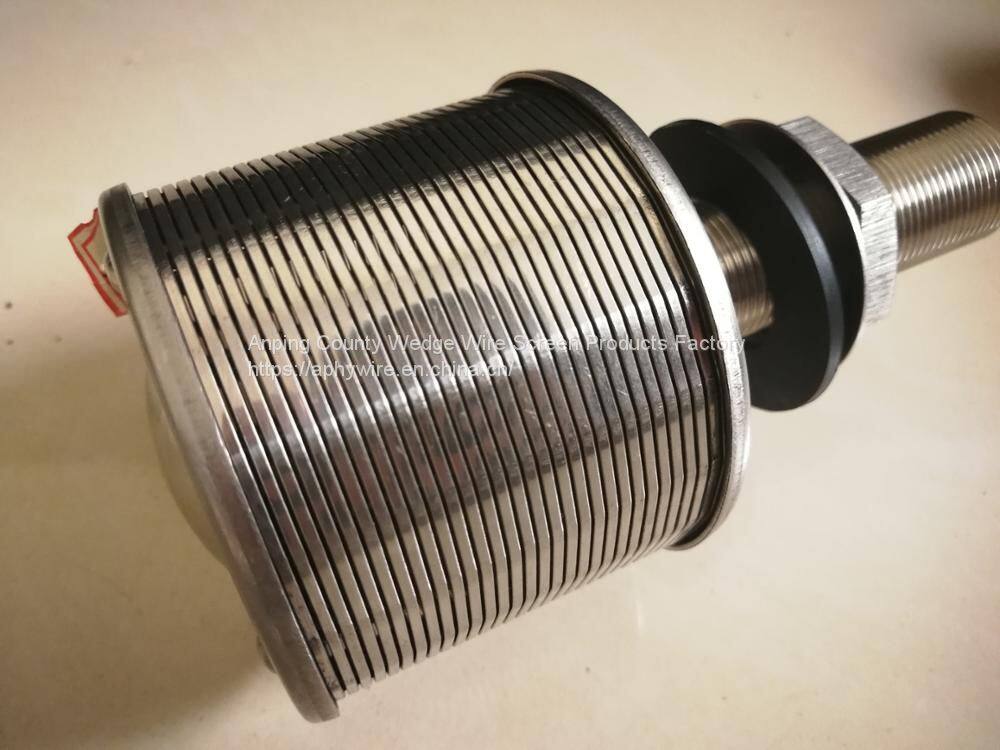

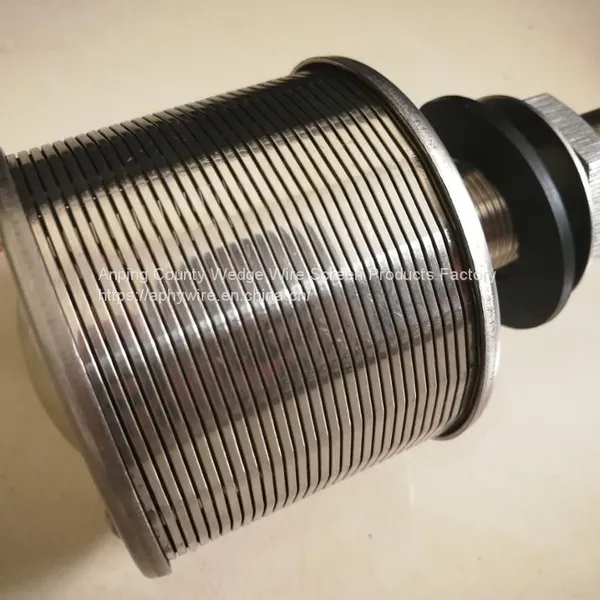

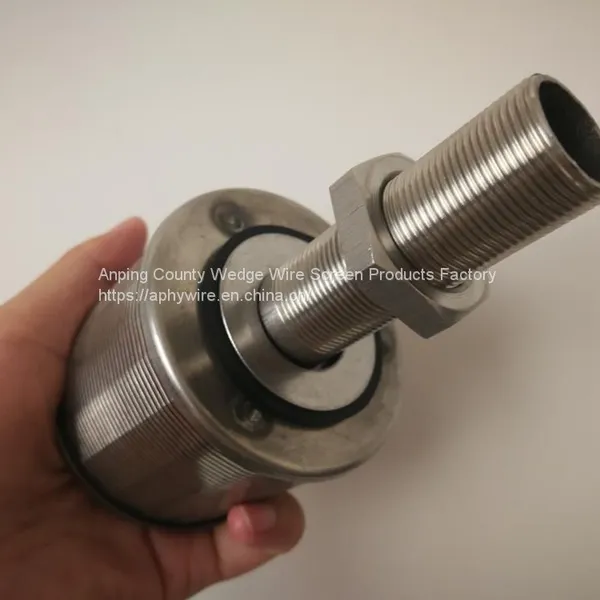

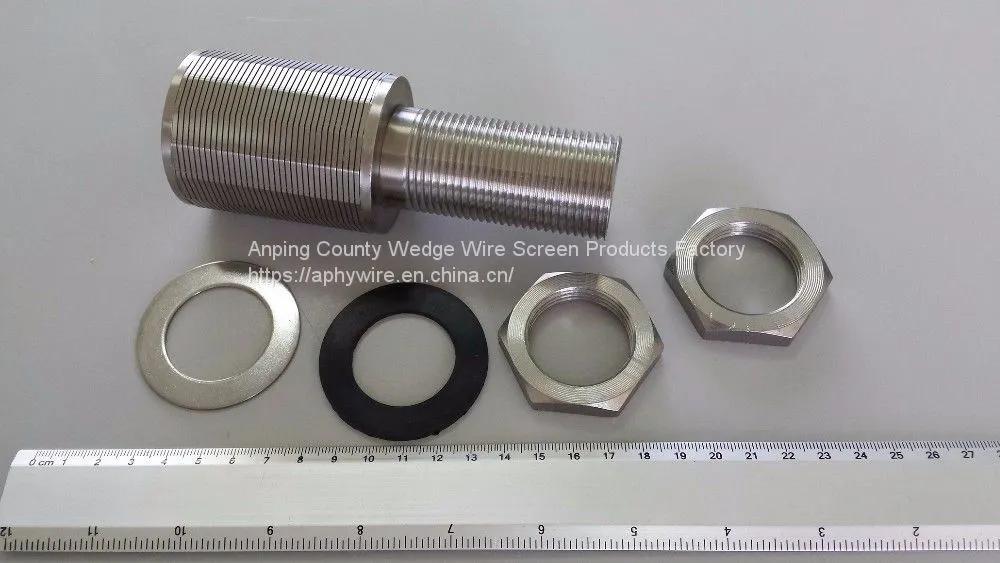

The filter screen nozzle is welded with screen pipe , thread pipe and steel plate, and the nipple (is divided into female and male), some nipple with nuts and rubber washer.
Stainless steel wedge wire cap is mainly installed in the filter, water filter, oil filter, such as filtering apparatus, is used in the water, oil, gas and resin rosin and medium filtering, can also be used for water treatment, water softening and sea water into fresh water, etc., can also can be used in food chemical and other industries filtration equipment.
Stainless steel wedge - shaped silk water cap, usually with high quality stainless steel 316, 316L and other materials to ensure strong product structure and product bearing capacity.The weight is generally 0.2-1.0kg, the volume weight is small, the appearance is exquisite.
Outer diameter: 20 mm to 50 mm
Gap: 0.05mm-0.5mm error: + 0.03mm.
Standard length: 50 ㎜ - 200 ㎜
Joint specification: 4 sub-pipe 12"--- pipe diameter: 12.5mm.
34"- pipe diameter 19mm.
1"-- -pipe diameter 25.4mm, etc.
The structure is varied and meet different design requirements
OEM service:
Please tell us the specification of the water cap you need and we will help you to process the high quality products.
Custom range
Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
Gap: 0.2-0.25mm, can be according to customer needs.
Type: Female thread, male thread, no thread, long handle, single velocity, double velocity etc.
Length: 50mm, 100mm, 130mm, 150mm, and by customers' request
Use:
The drainage cap purposes Stainless steel water cap is widely used in power plant, petroleum, chemical, pharmaceutical, food industries such as water treatment equipment, water treatment equipment is the key components of water distribution and water device.ABS enhanced water cap series.It is suitable for ion exchange, ion exchange resin and so on.Complete product specifications, including internal thread, external thread, single head, double head, long handle....Water treatment equipment is also used in various forms, such as mechanical filtration equipment, zwitterion exchange resin, floating bed, double room bed, mixing bed and gravity filter.
Regular Specifications:
| Type | Slot size | Specifications | Flow filter area 0.2mm slot ( reference) |
|||
| D | H | L | M | |||
| AP-PT-45-A | 0.2-0.5 | 45 | 25 | 90 | 25 | 280 |
| AP-PT-45-B | 0.2-0.5 | 45 | 35 | 100 | 25 | 380 |
| AP-PT-45-C | 0.2-0.5 | 45 | 45 | 110 | 25 | 550 |
| AP-PT-45-D | 0.2-0.5 | 45 | 35 | 55 | 25 | 380 |
| AP-PT-45-E | 0.2-0.5 | 45 | 45 | 65 | 25 | 550 |
| AP-PT-53-A | 0.2-0.5 | 53 | 35 | 100 | 25 | 450 |
| AP-PT-53-B | 0.2-0.5 | 53 | 45 | 110 | 25 | 580 |
| AP-PT-53-C | 0.2-0.5 | 53 | 55 | 120 | 32 | 700 |
| AP-PT-57-A | 0.2-0.5 | 57 | 35 | 100 | 32 | 530 |
| AP-PT-57-B | 0.2-0.5 | 57 | 45 | 110 | 32 | 680 |
| AP-PT-57-C | 0.2-0.5 | 57 | 55 | 120 | 32 | 830 |
| AP-PT-70-A | 0.2-0.5 | 70 | 40 | 105 | 32 | 650 |
| AP-PT-70-B | 0.2-0.5 | 70 | 55 | 115 | 32 | 810 |
Delivery Time:
By courier:5-7 workdays by speicial offer.
By air:7-10 workdays at apointed airport.
By sea: 30-35 days at appointed port.
