Home > Products > Johnson screen mesh > V Wire Strainer Pipe / stainless steel lateral tube
V Wire Strainer Pipe / stainless steel lateral tube
- 1000000 Metric Ton / Metric Tons per Month
- Xingang Port, Tianjin, China
- T/T L/C D/P D/A
- 7 days
You May Like
-
pure round wedge wire filter element
-
perfect round wedge wire johnson water well screen pipe
-
stainless steel filter element / wedge wire cylindrical screen
-
Wedge Wire Reverse Rolled Screen
-
304 Stainless Steel Rod Based Continous Slot Wire Wrap Well Screens
-
Stainless Steel 304 Johnson Water Wire Screen , Anti Corrosion Johnson Water Filter Screen
Product Details
| Brand Name | Anping Wedge Wire Screen Factory | Place of Origin | China | |
| Model Number | Diameter 1“-16“ |
Product Description

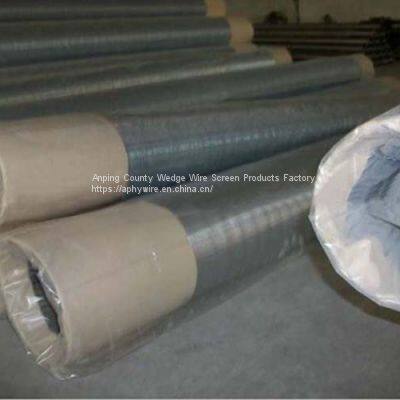

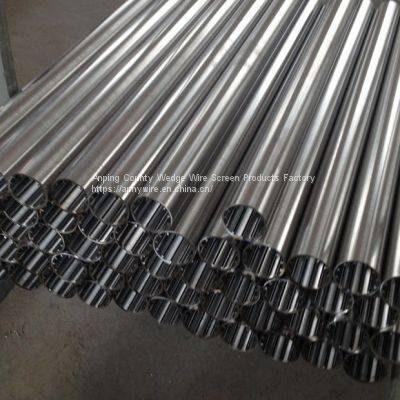

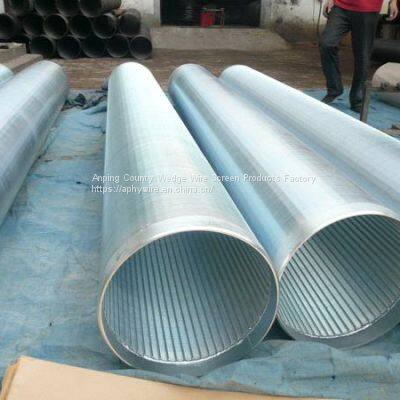

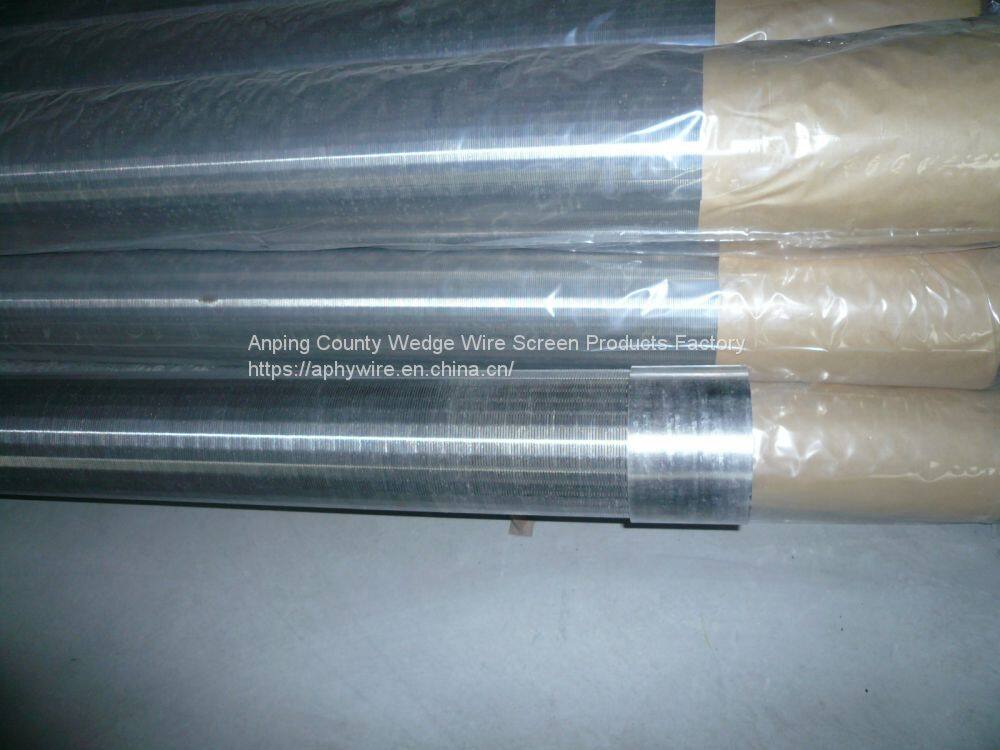

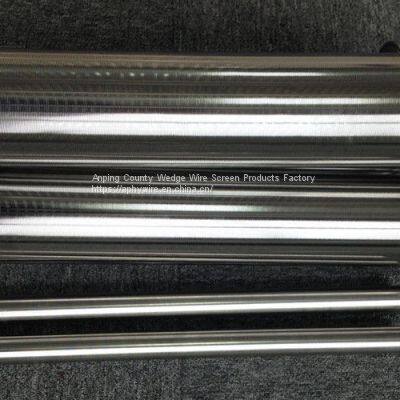

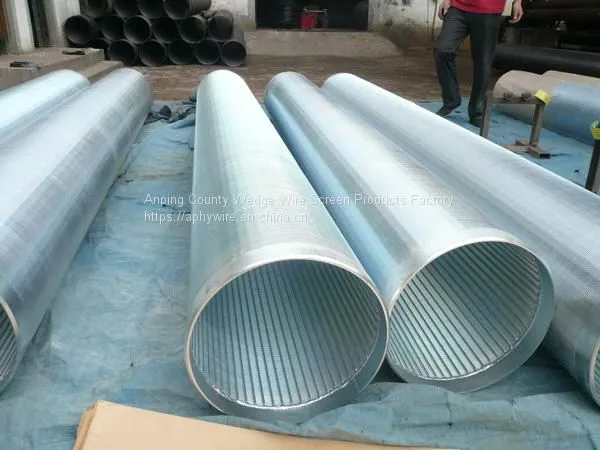

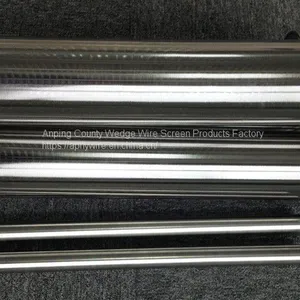

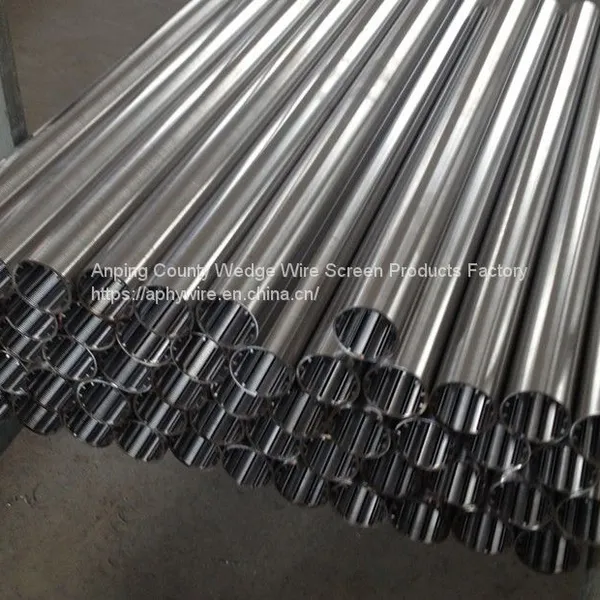

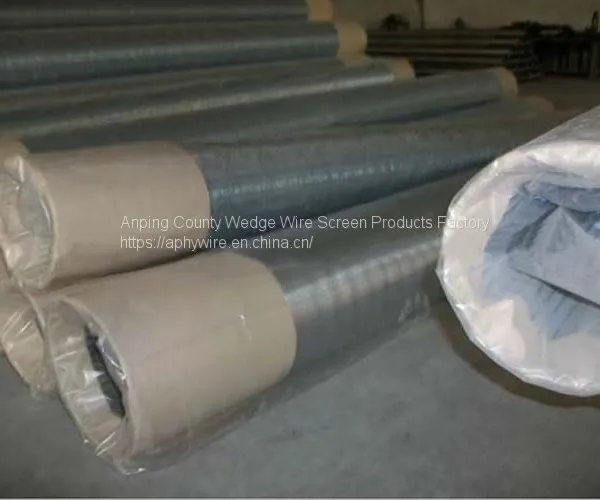

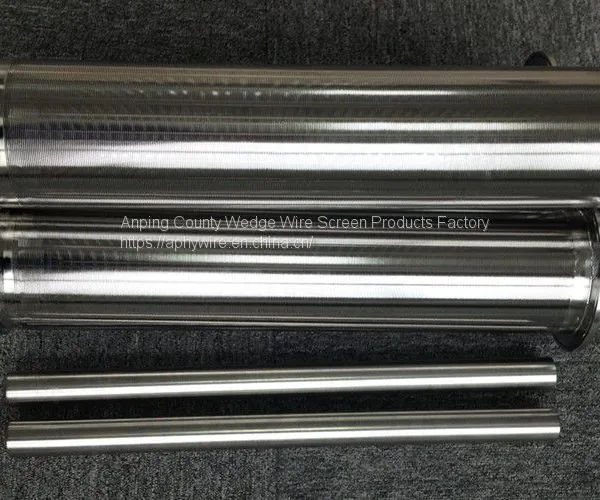

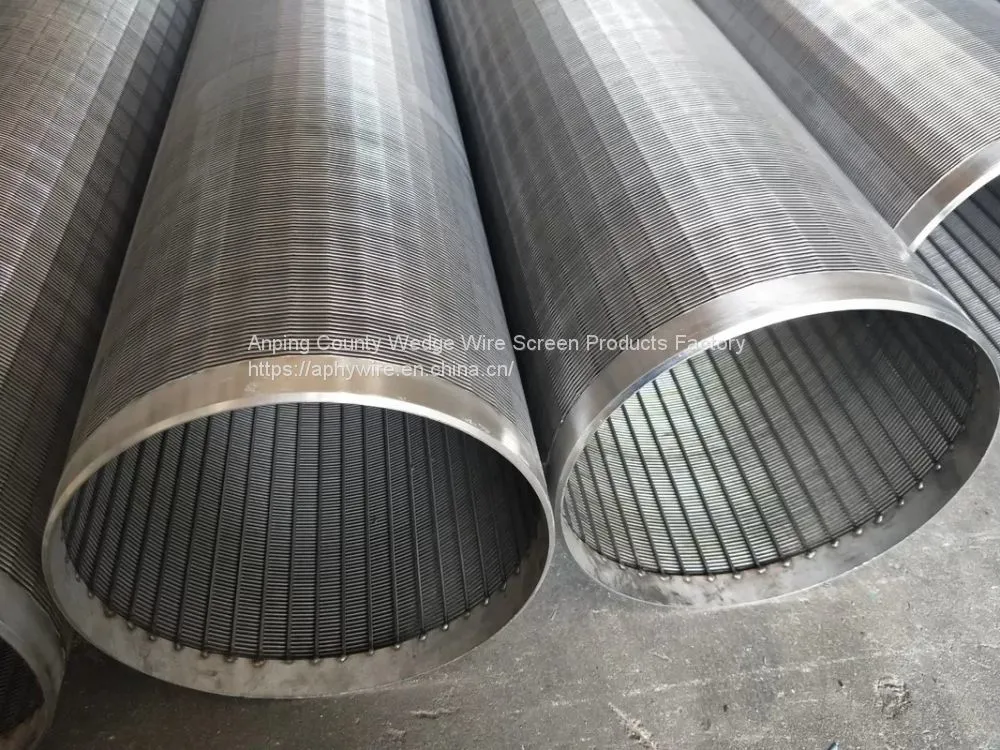

V Wire Strainer Pipe / Stainless Steel Lateral Screen Tube
Prodcut Name: water well screen, Johnson screen, deep well screen, welded wedge wire screen, sieve screen, screen tube, wire wrapped screen pipe, v wire welded slot well screen, drilling well screen pipe, stainless steel filter, stainless steel slot tune, wire wrapped liner, water filtration, strainer pipe
Material:302,304,316,304L,316L stainless steel wire,or low carbon galvanized steel wire. we can produce according to the customers' request.
O.D: 3 inch, 4inch, 5-5/8inch, 6inch, 8inch, 9-5/8inch, 10 inch, 12inch,14inch, 16inch, etc
the slot: from 0.1mm to 10mn

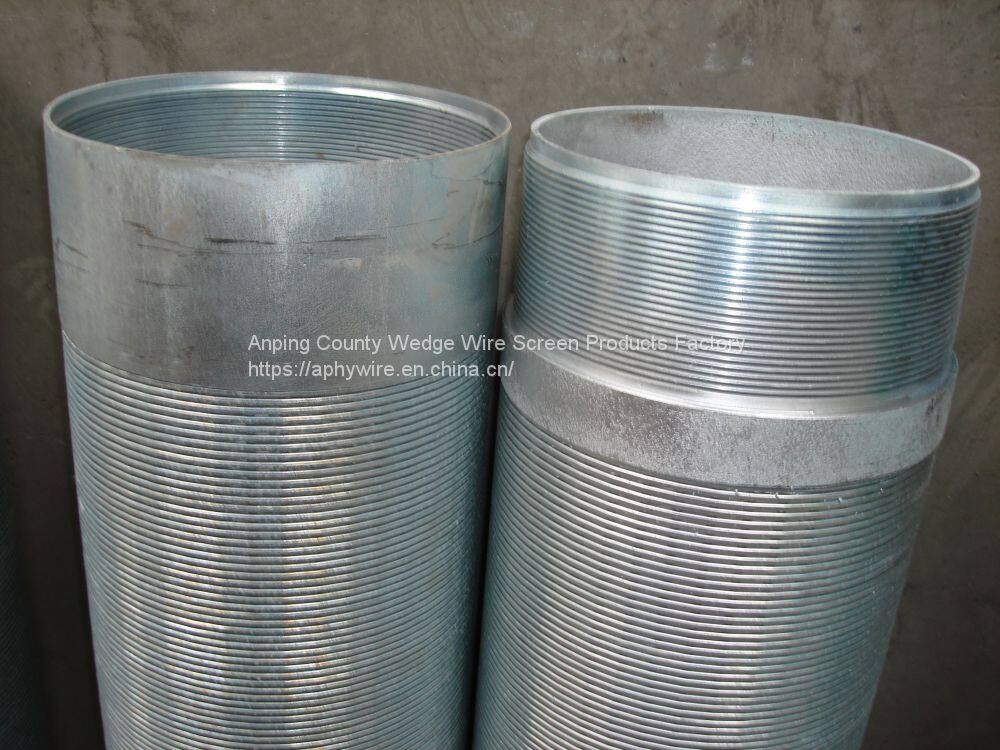

Styles of connection: by welding or by threaded male/female coupling.
Standard length: 2.9m/5.85m
Regular Specification:
SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
