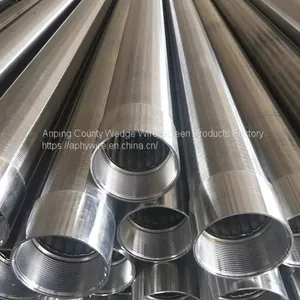

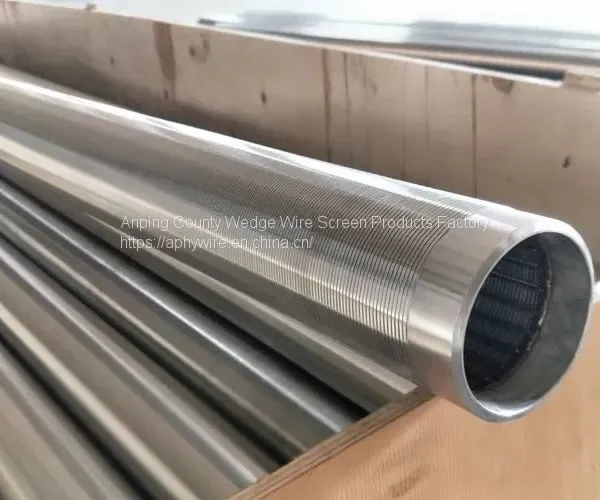

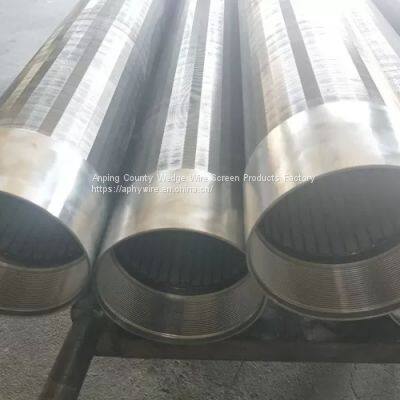

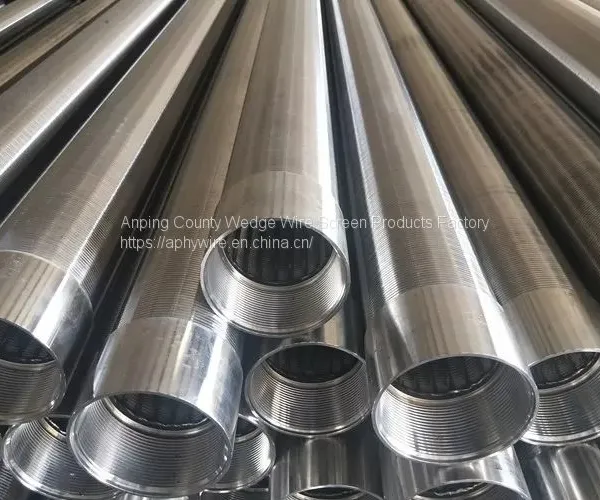

Help CenterWIRE WRAPPED JOHNSON WELL FILTER ELEMENT, Stainless Steel Filter Element
Related Products
-
Wedge Wire Wrap Well Screen, Wedge Wire Slotted TubeUS$ 95 - 195MOQ: 10 Pieces -
WEDGE WIRE SLOT TUBES / JOHNSON INTERNAL CIRCUMFERENTIAL WIRE SCREENUS$ 80 - 280MOQ: 15 Sets
-
Wedge Wire Screen Tube , Wedge Wire Filter ElementUS$ 50 - 150MOQ: 15 Sets
-
Wire Wrapped ScreenUS$ 50 - 160MOQ: 10 Pieces
-
Perfect Round Water Well Screen Pipe, Wedge Wire Johnson Filter TubeUS$ 30 - 85MOQ: 30 Meters
Spiral Screen Tube
Johnson Strainer Pipe
whatsapp: +86 13653289943
skype: anne_gu
QQ: 374153898
Specification (Profile wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other wires and rods available upon request
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…. 6.00mm also achieved upon request.
Material: Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)
Length: Lengths up to 6 meters.
Diameter : ranging from 25mm to1000mm.
End connection: Plain beveled ends for butt welding (welded ring)or threaded male &female coupling.(spiral)
Other sizes available on request. Deep well construction specifications available on question.
Water well screens are designed for depths of 100 m, 200 m, 350 m & 600 m.
Wedge Wire Screen Pipe Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
3-1/2 |
88.9 |
1.0 |
3 |
＞22 |
10.2 |
2.3*3.5 |
3.8MM/22 |
4-1/2 |
114.3 |
1.0 |
3 |
＞28 |
11.5 |
2.3*3.5 |
3.8MM/22 |
6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.3*3.5 |
3.8MM/32 |
6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.3*3.5 |
3.8MM/32 |
6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2*6.0 |
6.0MM*32 |
8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3*3.5 |
3.8MM/48 |
8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0*5.0 |
4.0MM/48 |
8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2*6.0 |
5.0MM/48 |
10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.3*3.5 |
4.9MM/55 |
10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0*5.0 |
4.9MM/55 |
10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2*6.0 |
5.0MM/55 |
12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0*5.0 |
4.0MM/50 |
14 |
355.6 |
1.0 |
3 |
＞80 |
37.8 |
3.0*5.0 |
4.0MM/59 |
