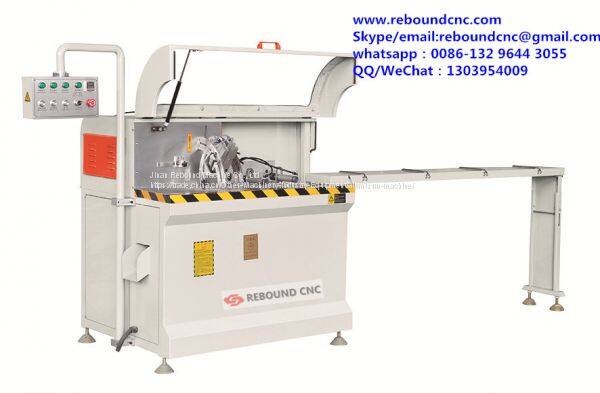

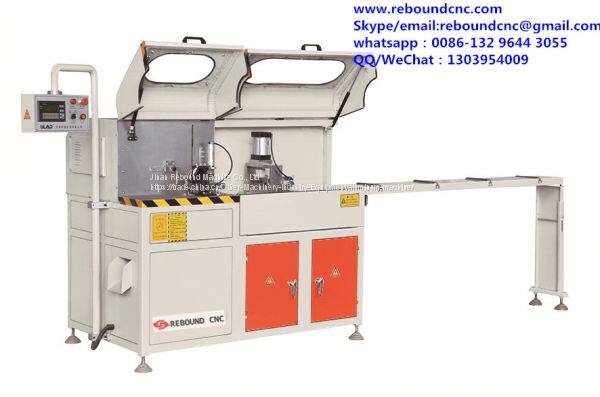

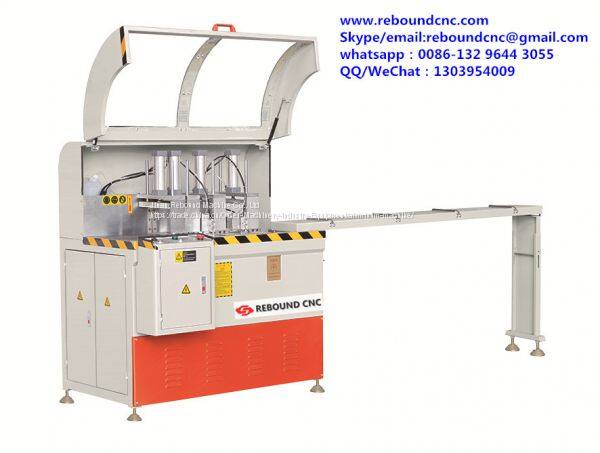

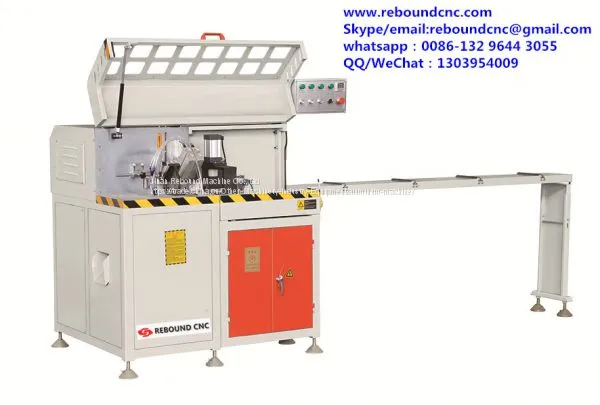

LJM-450(500) CNC Aluminum Door and Window Corner Connector Cutting Saw Machine, Aluminum Window Door Corner Key Cutting Saw Machine
This aluminum door window machine is used for cutting aluminum Corner Connector profile and curtain wall profile. The feeding system of LJM-CNC-450(500) CNC Aluminum Door and Window Corner Connector Cutting Saw Machine adopt threading shank with high precision transmit, accurate location and stable working. It uses the CNC technology, the man-machine interface intuitive practical.
LJM-450(500) CNC Aluminum Door and Window Corner Connector Cutting Saw Machine
Performance and Features:

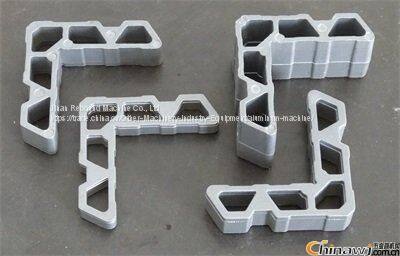

（1）Used to cut Corner Connector of Aluminum door and window. Belonging to CNC aluminum machine. One time profile feed and processing cut automatically.
（2）Setup Width and quantity of Corner Connector on man-machine interface. High cutting precision and efficiency.
（3）Guide clamp make sure exact 3mm stake cutting without any sharp angle left.
（4）Hydraulic damping feed. Machine body rigid structure.
LJM-450(500) CNC Aluminum Door and Window Corner Connector Cutting Saw Machine
Technical Parameters:
Power supply | 380V 50Hz |
Input Power | 2.2KW |
Working Air pressure | 0.5-0.8Mpa |
Blade rotational speed | 2840r /min |
Saw Blade specification | D=450(500)mm d=30mm |
Cutting Length | Min5mm Max600mm |
Outside dimension(mm) | 5600mm×1400mm×1300mm |
Weight | 500kg |
LJM-450(500) Automatic Aluminum Door and Window Corner Connector Cutting Saw Machine Technical Parameters:
Power supply | 380V 50Hz |
Input Power | 2.2KW |
Working Air pressure | 0.5-0.8Mpa |
Blade rotational speed | 2840r /min |
Saw Blade specification | D=450(500)mm d=30mm |
Cutting Length | Min5mm Max600mm |
Outside dimension(mm) | 5600mm×1400mm×1300mm |
Weight | 500kg |
FAQ
1.How to work on it ? Milling ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
2. Training and Use?
We will supply friendly English operation manual and installation. Customer is warmly welcomed
to visit our factory for free training. We can also send engineer to customer’s country to supply training, but you need to bear some fee,like tickets and hotel and meal
3. What is Warranty Policy?
We provide 1 year warranty. During the 1 year warranty if any part is faulty, our company will give you replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong after sale service to you as long as you use our printer. Especially, you can gain the lifelong Warranty for your large format digital inkjet printer with continuously ink order.
All products on our website are made by the best manufacturers in China and the quality is guaranteed by the China Ink-jet Printing Association. Although low cost products are the most popular, but our products are selected with high quality and high production standards and affordable price. We can supply assembly spare parts with every machine and guarantee their functioning for at least 12 months.
4. How to pay? Can I use credit card?
A:You may use the following methods of payment: Ali Trade Assurance, PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.
5. How to receive my order? Is it safe during shipping?
For the items you purchased, we will arrange shipping by sea or international express delivery to ship and usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally, we will purchase insurance as a guarantee for your order.
6. If I still have questions to this product, what shall I do?
Mobile / WhatsApp:+86-132 9644 3055
Email: info@reboundcnc.com , reboundcnc@gmail.com
Skype: reboundcnc@gmail.com
QQ/Wechat: 1303954009
Jinan Rebound Machine Co., Ltd China
Skype/email:reboundcnc@gmail.com
Whatsapp：0086-132 9644 3055
QQ/WeChat：1303954009
Other relevant aluminum door window machines:
