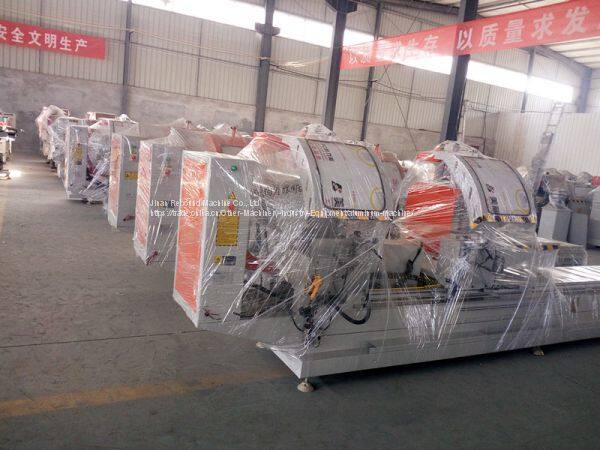

LJZ2-450*3700 Double Head Automatic Pendulum Cutting Saw Machine for Aluminum Profile
Double head automatic pendulum aluminum cutting saw machine also named aluminum cutting machine,double head aluminum saw,double head cutting saw.
LJZ2-450*3700 Double Head Automatic Pendulum Cutting Saw Machine for Aluminum Profile Performance and Features:
（1）Used to aluminum profile 45°-90°-45°.
（2）Pressure drive and linear feeding steadily.
（3）Motion of head by imported linear bearing pair.
（4）Cut both profile and corner stake.
（5）The fixed head can cut corner stake.
（6）Solid and rigid structure. Safe and reliable. High precision. Large range. Efficiency and easy operation.
LJZ2-450*3700 Double Head Automatic Pendulum Cutting Saw Machine for Aluminum Profile Technical Parameters:
Power supply |
380V 50Hz |
Input Power |
3.55KW |
Working Air pressure |
0.5-0.8Mpa |
Blade rotational speed |
2800r /min |
Saw Blade specification |
D=450m d=30mm |
Cutting Length |
Min380mm Max3700mm |
Cutting angle |
90° 45° |
Outside dimension(mm) |
5100mm×1300mm×1600mm |
Weight |
1500Kg |
