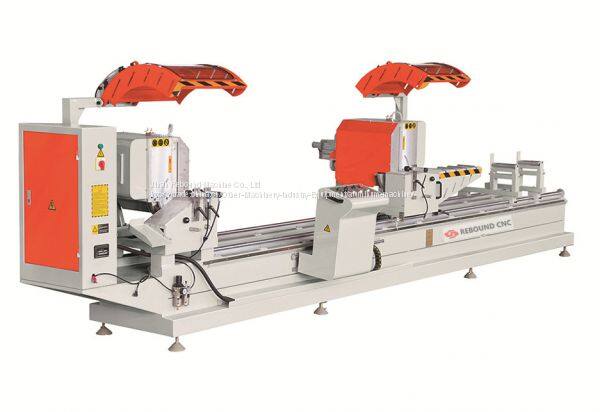

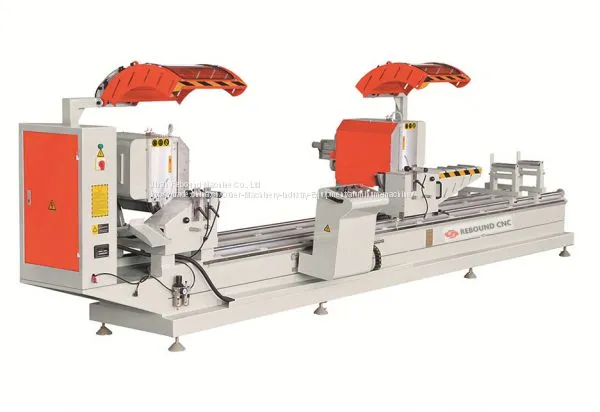

LJZ2-450*3700 Double Head Aluminum Cutting Machine (automatic cutting Corner Connector )
LJZ2-450*3700 Double Head Aluminum Cutting Machine is used to cut the aluminum and plastic profiles at angels of -45°~90°~45°. The characteristics of this aluminum machine:you can use it to cut aluminum Corner Connector .
LJZ2-450*3700 Double Head Aluminum Cutting Machine Performance and Features:
（1）Used to aluminum profile 45°-90°-45°.
（2）Controlled by PC.

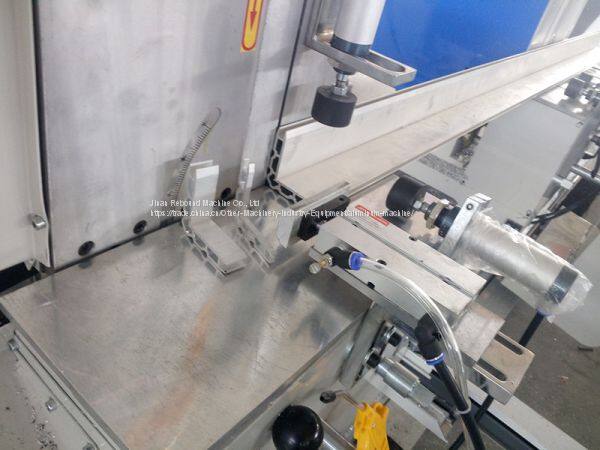

（3）Can automatic cutting Corner Connector .
（4）The number of cutting can be counted automaticly.
（5）The machine can automatically set 45 ° and 90°.
LJZ2-450*3700 Double Head Aluminum Cutting Machine Technical Parameters:
Power supply |
380V 50Hz |
Input Power |
4.4 KW |
Working Air pressure |
0.5-0.8Mpa |
Blade rotational speed |
2800r /min |
Saw Blade specification |
D=450mm d=30mm |
Cutting Length |
Min380mm Max3700mm |
Cutting angle |
90° 45° |
Outside dimension(mm) |
5100mm×1300mm×1600mm |
Weight |
1500Kg |
Jinan Rebound Machine Co., Ltd China
Skype/email:reboundcnc@gmail.com
Whatsapp：0086-132 9644 3055
QQ/WeChat：1303954009
