Aluminum Double Head Cutting Saw,aluminum door window cutting machine,aluminum door window assembly machine

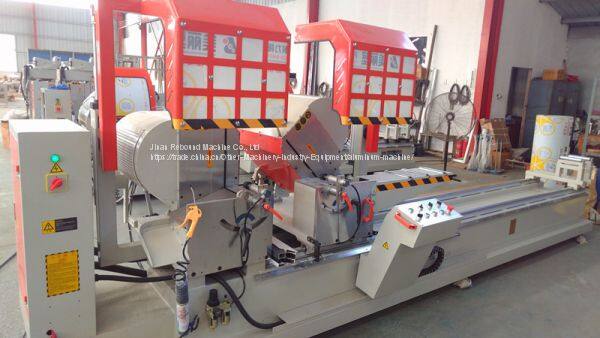

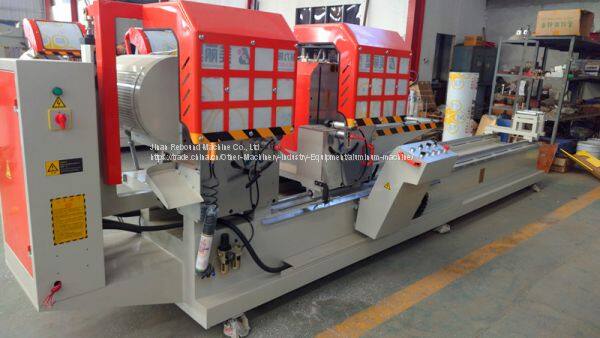

Our LJZ2-CNS-500*4200 Digital display Double Mitre Aluminum Door Window Precision Cutting Saw Machine is also a style of aluminum door window machine which deserves to be recommended by us to you. The main shaft of this double head aluminum cutting machine is made of high-precision saw blades exclusively used for hard alloy.
500*4200 Double Head Digital display Aluminum Door Window Precision Cutting Saw Machine Performance and Features:
（1）Shaft of saw blade made by professional maker.
（2）Imported straight feeding guide rail pair.
（3）Motion of head by imported linear bearing pair.
（4）Hydraulic damping cylinder drive the saw blade feed.
（5）Large range of cutting. Maximum length is up to 4200mm. Three cutting angles 90°, 45°, 22.5°
500*4200 Double Head Digital display Aluminum Door Window Precision Cutting Saw Machine Technical Parameters:
Power supply |
380V 50Hz |
Input Power |
4.4KW |
Working Air pressure |
0.5-0.8Mpa |
Blade rotational speed |
3100r /min |
Saw Blade specification |
D=500m d=30mm |
Cutting Length |
Min385mm Max4200mm |
Cutting angle |
90° 45° 22.5° |
Outside dimension(mm) |
5600mm×1750mm×1900mm |
Weight |
1700Kg |
Jinan Rebound Machine Co., Ltd China
Skype/email:reboundcnc@gmail.com
Whatsapp：0086-132 9644 3055
QQ/WeChat：1303954009
