Product Details
| Brand Name | Rebound | Place of Origin | China | |
| Model Number | LXF-270*120 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
aluminum drilling and milling machine, aluminum door and window machine, Single-axle Copy-routing Drilling and Milling Machine

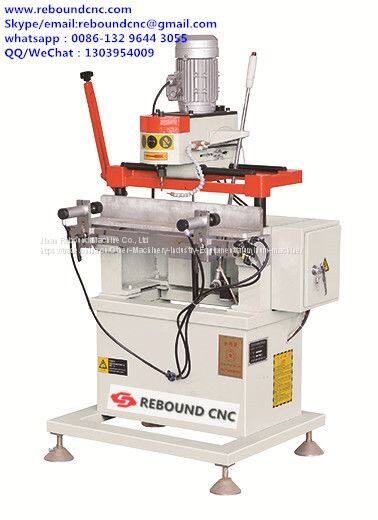

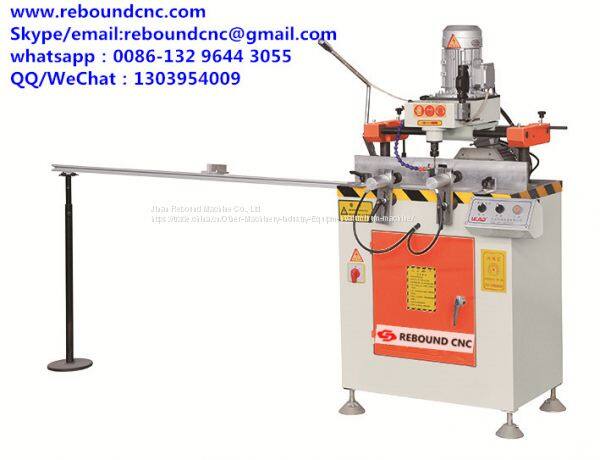

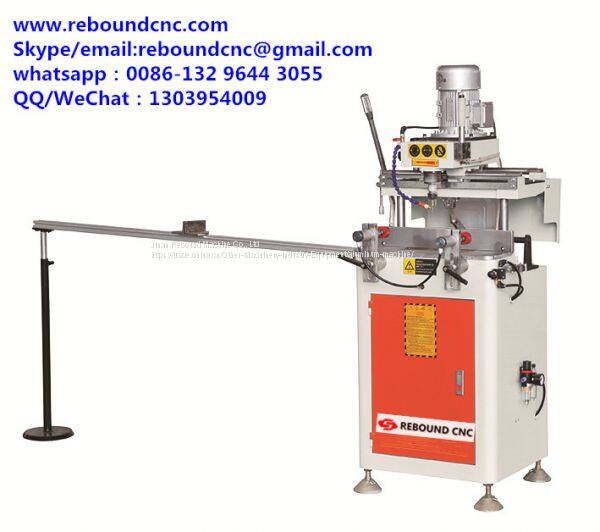

LXF-270*120 Single-axle Copy-routing Drilling Machine is the aluminum door window machine that used for copy-routing processing various kinds of holes, groovesand water-slots.
LXF-270*120 Single-axle Copy-routing Drilling and Milling Machine Performance and Features:
（1）For processing of all kinds of holes of the aluminum and pvc profiles.
（2）Vertical direction can be adjusted continuously.
（3）Changeable template for different copy routing.
LXF-270*120 Single-axle Copy-routing Drilling and Milling Machine Technical Parameters:
Power supply | 380V 50HZ |
Input Power | 1.1 KW |
Working Air Pressure | 0.4-0.6MPa |
Processing hole size error | ±0.2mm |
Processing deviation from straightness | ±0.1mm |
Copy-routing range | 290*100mm |
Milling cutter diameter | Ø5 Ø8 |
Outside Dimension | 870 mm×700 mm×1500mm |
Weight(about) | 150kg |
Jinan Rebound Machine Co., Ltd China
Skype/email:reboundcnc@gmail.com
Whatsapp：0086-132 9644 3055
QQ/WeChat：1303954009
